Steck Universal I-Bolt Tow Eye Attachment

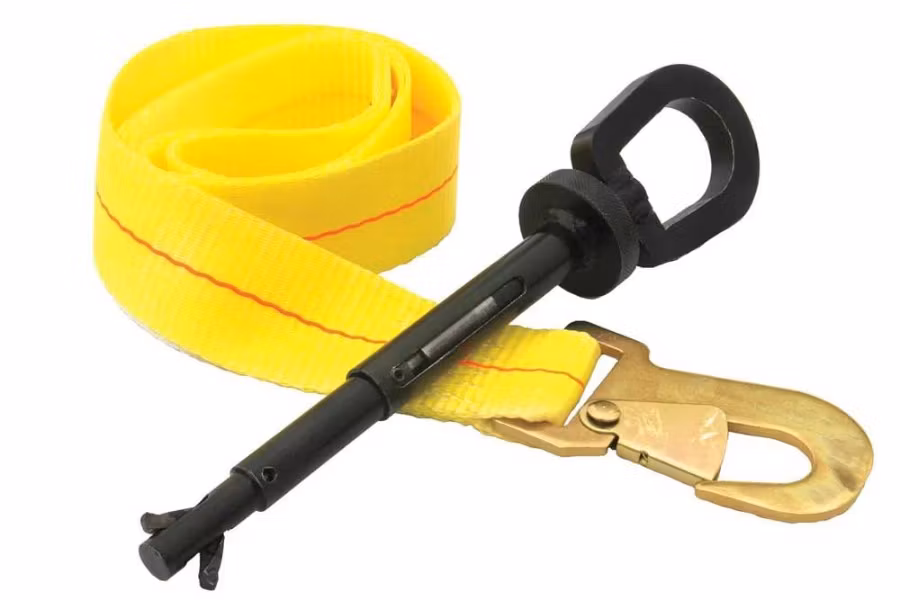

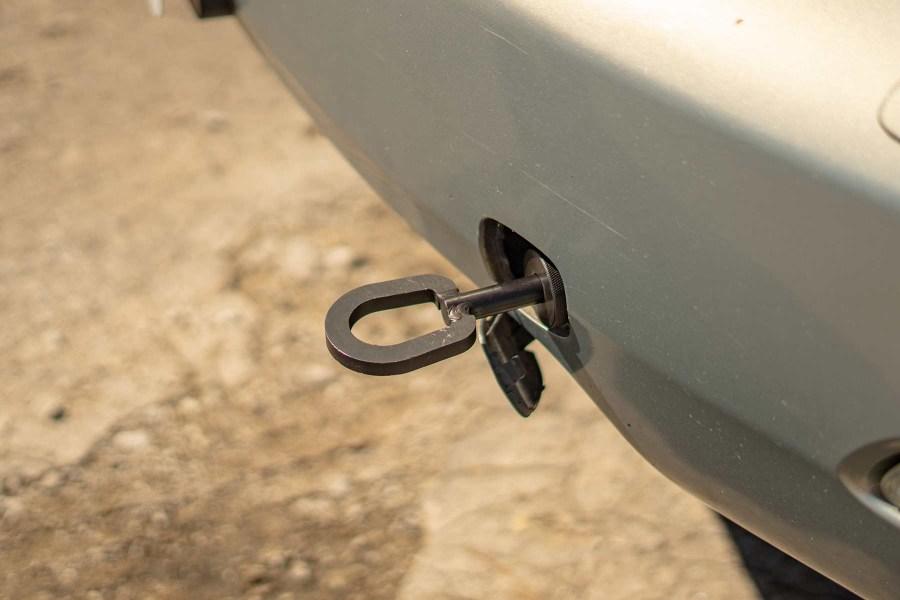

The I-Bolt is a 2" x 1-1/2" loop connected to a 7" long steel shaft with unique gripping teeth that lock into the threaded holes on the front or rear of the vehicle. Insert the I-Bolt into the threaded hole, ideally behind the nut or the back of the hole, engage the gripping teeth by turning the loop clockwise (while holding the knurled 1-3/4 " knob) until the teeth engage behind the nut or in the threaded hole. The I-Bolt is able to fit threaded holes having diameters of 1/2" up to 1-1/4". This unique design provides a universal hook up solution for the 200+ vehicles identified in the Towing and Service Manual from AAA. Also included is a 6' x 2" polyester safety strap with a 4" looped end to wrap around the control arm or sway bar and a 3-1/2" steel flat snap hook that attaches to the I-Bolt to positively secure the vehicle. The I-Bolt has been certified to pull up to 1,500 lbs. Winch the vehicle until all 4 four wheels are on the bed, and then level the bed. Continue to winch and stop 3-4 ft. short of the winch itself to avoid bending the I-Bolt and damaging the bumper. Once the vehicle is loaded, remove the I-Bolt and secure the vehicle.

• 2" X 1-1/2" Loop connected to a 7" long steel shaft
• Has unique gripping teeth
• Fits threaded holes having diameters of 1/2" up to 1-1/4"
• Also includes a 6' x 2" Polyester Safety Strap w/4" looped end
• Certified to pull up to 1,500 lbs.
• Replacement strap # 71490-Strap
