Turolla 10gpm Pump A Mount 83012715 Side Port S16mb P12mb High Pressure

Leave a Review

Shop all DewEze products

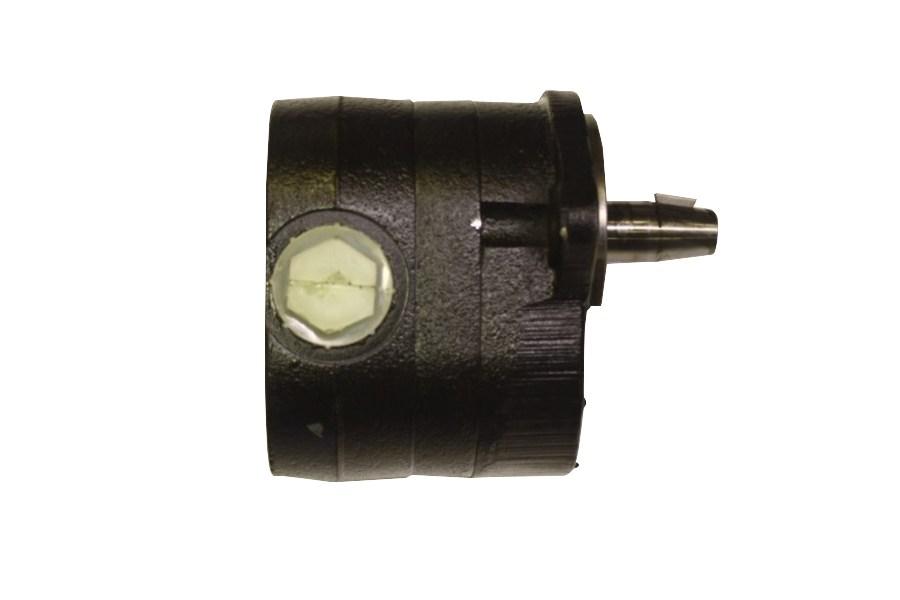

Picture of Turolla 10gpm Pump A Mount 83012715 Side Port S16mb P12mb High Pressure

SKU: 720297

Price: $1,316.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

DewEze Pump 10 gallon per minute, A mount Turolla High Pressure 83012715 Side Port S16mb P12mb. This is the Pump Only

NOTE TO INSTALLER Clutches will need a short burnishing period to generate the rated torque. This is a process of cycling the clutch to slightly wear the friction surfaces. This allows full contact and maximum magnetic attraction required for rated torque (or more).

BURNISHING-TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED: After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 10 seconds on - 10 seconds off for a minimum of 50-100 cycles.

Mount: A
GPM: 9
Port: Side
Shaft: 7/8" Taper
Bolt: 5/16-24x1
Rotation: CW
Material: Iron
CS Thick: 2-9/16"
Model Number: 83012715
CI: 1.28
Suction H: 1"
Suction F: 16mb
Pressure H: 3/4"
Pressure F: 12mb
PSI R1: 3000
PSI R2: 4000
Seal Kit: 722084
Shaft Key: 720161
Front Seal: 722083
Series: SD
