Warn 20XL Series 20,000 lb. Long Drum Hydraulic Planetary Winch w/ Manual Clutch

Leave a Review

Shop all Warn Industries products

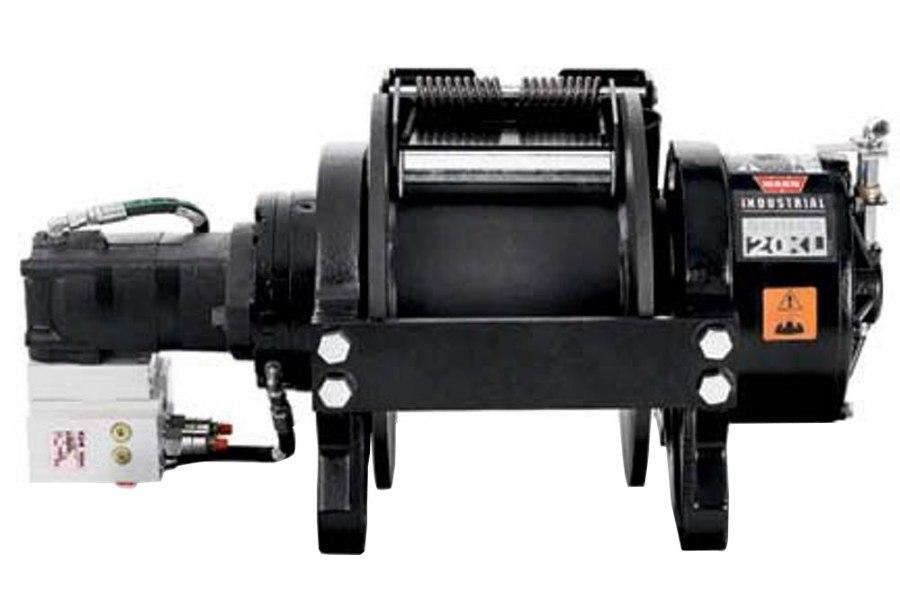

Picture of Warn 20XL Series 20,000 lb. Long Drum Hydraulic Planetary Winch w/ Manual
Clutch

SKU: WARN-77570

Price: $7,299.99

Qty:

Go Straight to Checkout

Truck Freight Required

Description

Hardened Aircraft Grade Nickel Chromoly Two-Stage Planetary Gear Trains Deliver Efficient and Reliable Operation Plus Fast Line Speeds. All are Designed for Heavy-Duty Towing and Recovery Operations. These Products Comply with World-Wide quality and Safety Standards. This specific model has an 8.0 cu. in hydraulic motor. It has a long drum and a manual clutch. Has a spring applied disk for a braking system.

8.0 Cubic Inch High Performance Motor With 20,000 Pounds Capacity, Great For Trailers, Roll Back Carriers, And Severe Duty Applications
Spring Applied Disc Brake Designed To Hold The Full Rated Load
Hardened Aircraft Grade Nickel Chromalloy Two Stage Planetary Gear Train For Speed And Reliability
Meets SAE J706 And CE Specifications
Limited Lifetime Warranty for Mechanical Components
Limited Five (5) Year Warranty for Electrical Components
Long Drum, Manual Clutch

Specifications
Type: Hydraulic
Mount Type: Vehicle Mounted
Recommended Use: Industrial
Voltage: Not Applicable
Motor Horsepower: Not Applicable
Electrical Control Type: Not Applicable
Thermal Shutoff: No
Drive Gear Type: Planetary
Gear Reduction Ratio: 28.5:1
Free Spooling: Yes
Brake Type: Spring Applied Disc
Line Diameter(in): No Rope
Line Length(ft): No Rope
Line Material: No Rope
Fairlead Type: No Fairlead
Conforms to J706 Standards: Yes
Remote Type: No Remote
Mounting Hole Quantity: 8
Operation Type: Automatic
Mounting Pattern Length(in): 18 in
Mounting Pattern Width(in): 7 1/2 in
Includes Mounting Hardware: No
Color: Black
Max Line Pull / Line Speed: 20,000 lbs / 28.5 Ft Per Minute
