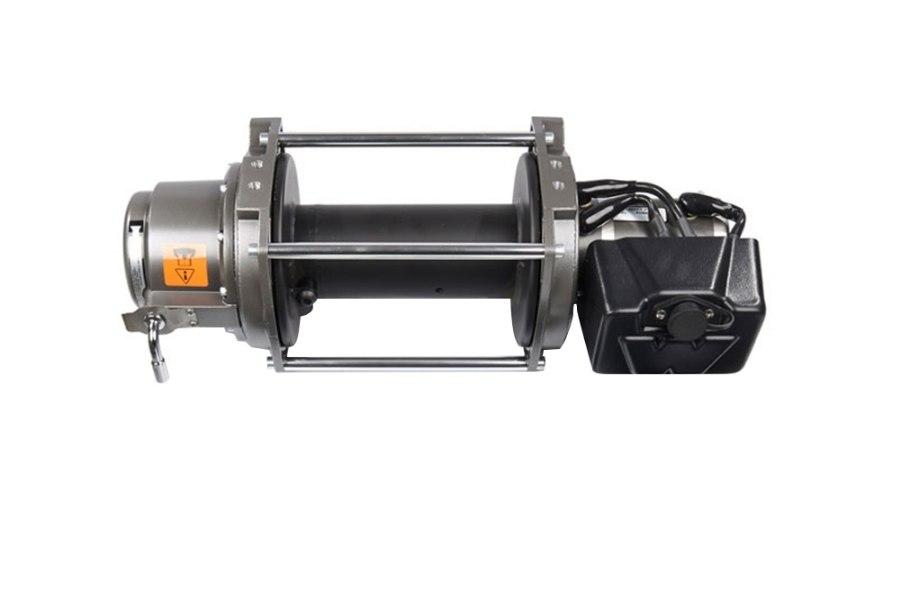

Warn 9 Series 9,000 lb. 12V Electric Planetary Winch

Leave a Review

Shop all Warn Industries products

Picture of Warn 9 Series 9,000 lb. 12V Electric Planetary Winch

SKU: WARN-30283

Price: $2,334.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

For electrically powered applications, Warn industrial offers a comprehensive line of products to meet or exceed your expectations. All Electric Winches feature heavy duty 12 or 24 Volt Series wound industrial motors and hardened steel three stage planetary gear trains that provide efficient and reliable operation. Every Warn industrial planetary Winch complies with the world's most stringent standards, including SAE J706 and NFPA

Perfect for Tow, Utility and Trailer Applications
Heavy Duty Automatic Disc Brake Provides Dependable Operation
Available in Two Motor Sizes: 4.9 cu. in. and 3.0 cu. in.
Higher Gear Ratio For Fastest Line Speed
Weatherproof Industrial Contactor Control Pack

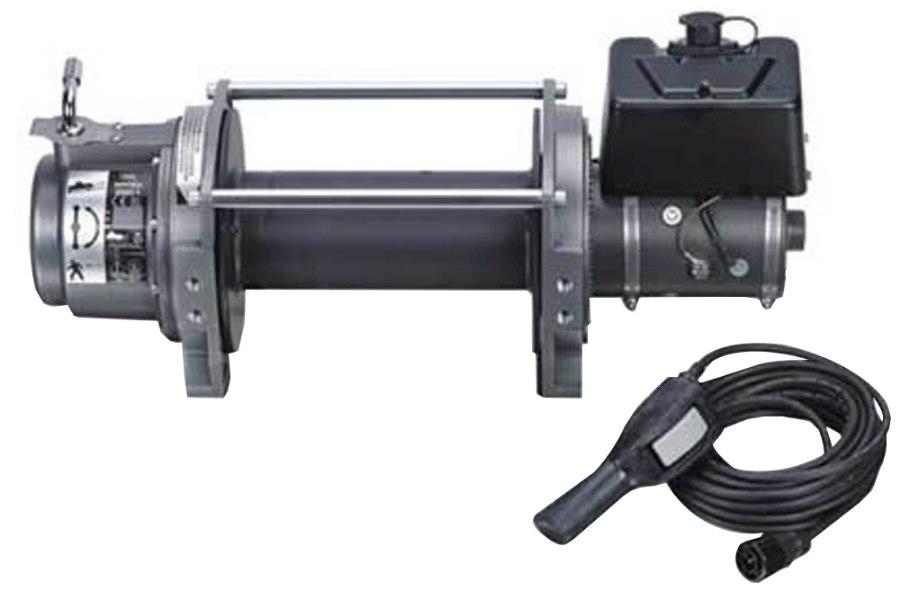

Rugged 32 Foot Industrial Remote Control
SAE J706 Compliant Disc Brake Designed For Extended Power Out Use
Thermal Overload Switch Protects Motor From Overheating
Limited Lifetime Warranty for Mechanical Components
Limited Five (5) Year Warranty for Electrical Components

Applications
Industrial

Specifications
Type: Electric
Mount Type: Vehicle Mounted
Voltage: 12 Volt
Motor Horsepower: 2.5 Horsepower
Electrical Control Type: Contactors
Motor Type: Series Wound
Thermal Shutoff: Yes
Drive Gear Type: Planetary
Gear Reduction Ratio: 199:1
Free Spooling: Yes
Brake Type: Disc Brake
Line Material: No Rope
Fairlead Type: No Fairlead
Conforms to J706 Standards: Yes
Remote Type: Handheld Remote Switch
Mounting Hole Quantity: 8
Operation Type: Automatic

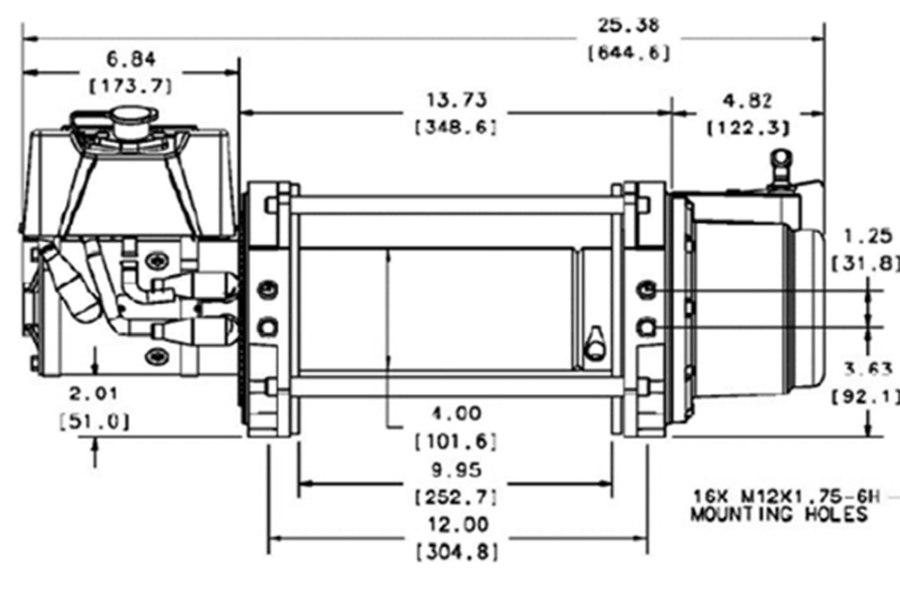

Mounting Pattern: 12"
Mounting Pattern Width: 4-1/2"
Includes Mounting Hardware: No
Color: Gray
Max Line Pull: 9000 lbs
