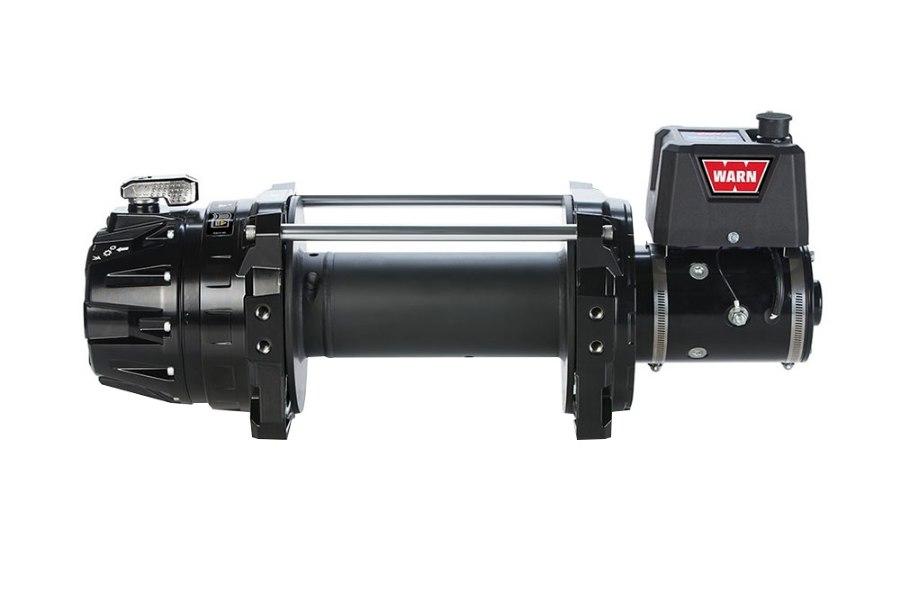

Warn Industries G2 15 Series 15,000 lb. 12V Electric Winch

The all new line-up of Series G2 DC Electric winches are ideal for first responders, utility vehicles, and other applications where an electric winch is preferred. New levels of performance, durability, and efficiency help to get the job done quickly and reliably time after time. The Warn Series G2 represents the latest in the Warn Industrial planetary gear winch lineup. All-new modular configurations, improved levels of performance, and best-ever durability are features that allow you to work smarter.

• Warn G2 Series
• 15,000 lbs DC Electric Winch
• 12 Volt Motor
• SAE J706-Compliant Disc Brake Designed for Extended Power-out Use
• 3.8 Horsepower High Torque Motor
• Weatherproof Industrial Contactor Control Pack
• Rugged 32 Foot Industrial Remote Control
• Disc Brake Designed For Extended Power Out Use
• Thermal Overload Switch Protects Motor From Overheating
• Wire rope, roller fairlead, and tensioner sold separately
• Limited Lifetime Warranty for Mechanical Components
• Limited Five (5) Year Warranty for Electrical Components
• Anti-Clockwise, 10" Wire Drum, Manual Clutch



  Specifications

• TYPE: Electric
• MOUNT TYPE: Vehicle Mounted
• RECOMMENDED USE: Industrial
• VOLTAGE: 12 Volt
• ELECTRICAL CONTROL TYPE: Contactors
• MOTOR TYPE: Series Wound
• THERMAL SHUTOFF: Yes
• DRIVE GEAR TYPE: Planetary
• GEAR REDUCTION RATIO: 315:1
• FREE SPOOLING: Yes
• BRAKE TYPE: Disc Brake
• LINE DIAMETER (IN): No Rope
• LINE LENGTH (FT): No Rope
• LINE MATERIAL: No Rope
• FAIRLEAD TYPE: No Fairlead
• CONFORMS TO J706 STANDARDS: Yes
• REMOTE TYPE: Handheld Remote Switch
• MOUNTING HOLE QUANTITY: 8
• OPERATION TYPE: Automatic
• MOUNTING PATTERN LENGTH (IN): 12 Inch
• MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
• INCLUDES MOUNTING HARDWARE: No
• COLOR: Gray
• MAX AMP DRAW/ LINE PULL: 561 Amp Draw/ 15000 Pound
• MAX LINE PULL/ LINE SPEED: 15000 Pound/ 5.2 Feet Per minute
