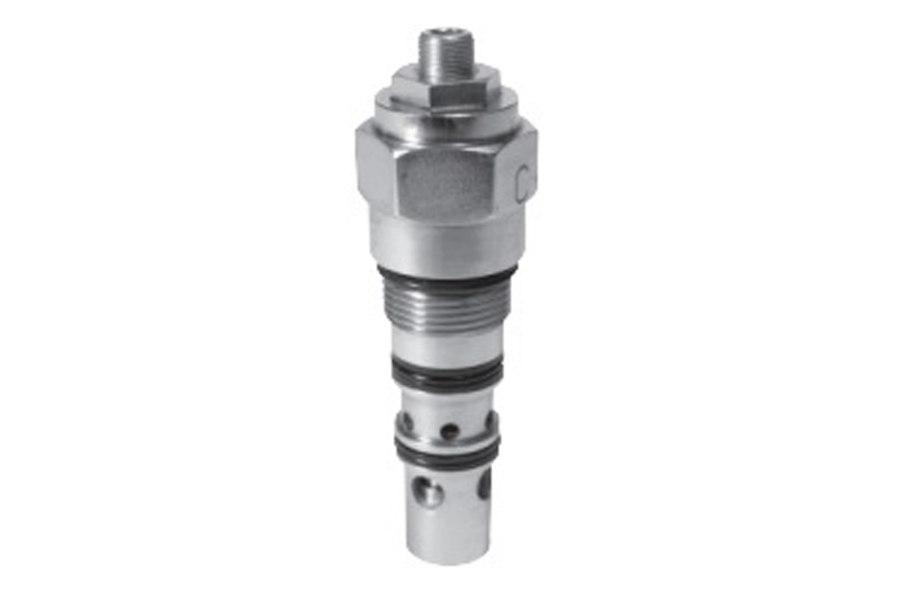

This load control valve is a threaded cartridge style counterbalance valve.
Pilot assisted, designed for motion control applications.
This valve is used on cylinder part number 12-0303681
Poppet construction for minimal leakage
Incorporates direct acting relief valve for overload protection
Includes reverse check valve within body, saving space and minimizing
installation cost
Excellent control and very good stability
Hardened working parts for maximum durability
Adjustable, preset and tamper resistant versions available
Preset version is tamper resistant and compact
All external parts zinc plated
Specifications
Rated Flow: 60 LPM (15.9 GPM)
Pressure: 50-350 Bar (725-5000 PSI)
Sensitivity (pressure/turn): 99 Bar (1435 PSI)
Pilot Ratio: 3:1
Cartridge Material: All parts are steel. All operating parts are hardened
steel.
Operating Temperature (range/seals): -40°F to 200°F Nitrile, -25°F to 250°F
Fluorocarbon
Fluid Compatibility/Viscosity: Mineral-based or synthetic with lubricating
properties at viscosities of 45 to 2000 SSU (6 to 420 cSt)
Filtration: ISO code 16/13, SAE Class 4 or better
Approximate Weight: .27 kg (.60 lbs.)
Cavity: 68-1
