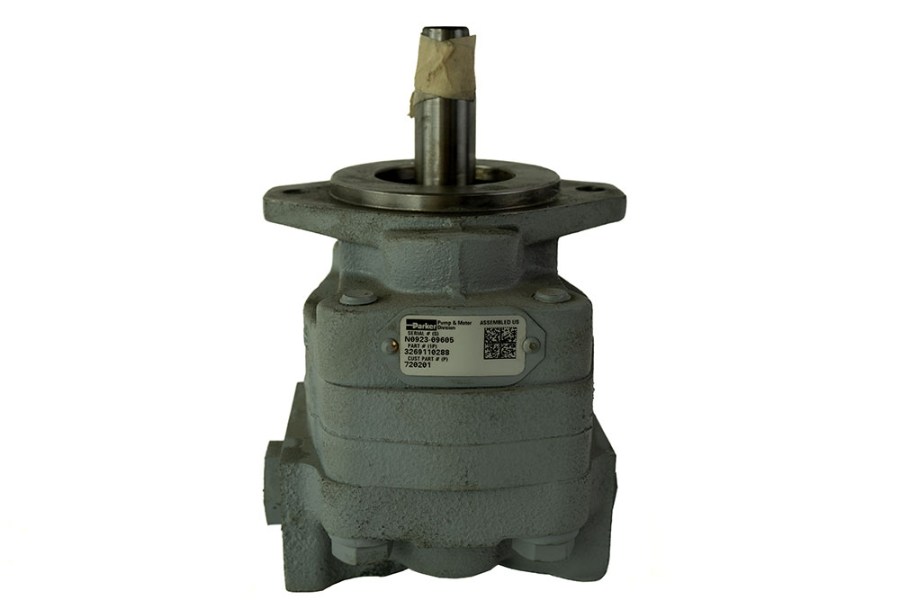

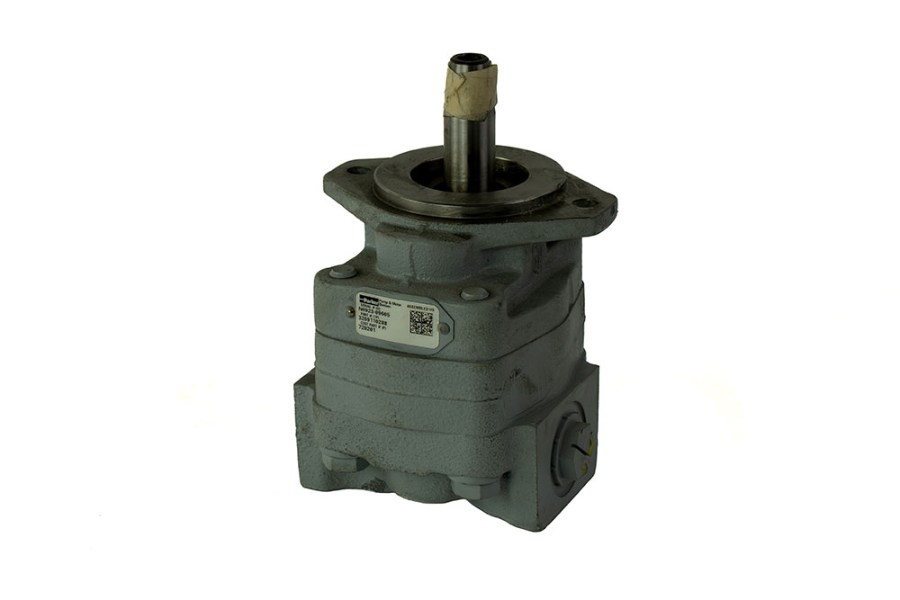

DewEze 9GPM Parker Hydraulic Pump Side Port

DewEze Pump 9 gallon per minute, A mount Parker P315 326-9110-288 Side Port S16mb P12mb. This Parker hydraulic pump has a fixed displacement gear pump for use with a belt-driven electro-magnetic clutch, for Deweze clutch pump kit.

NOTE TO INSTALLER Clutches will need a short burnishing period to generate the rated torque. This is a process of cycling the clutch to slightly wear the friction surfaces. This allows full contact and maximum magnetic attraction required for rated torque (or more).

BURNISHING-TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED: After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 10 seconds on - 10 seconds off for a minimum of 50-100 cycles.

• Mount: A
• GPM: 9
• Port: Side
• Shaft: 7/8" Taper
• Bolt: 5/16-24 x 1
• Rotation: CW
• Material: Iron
• CS Thick: 1-1/4"
• Model Number: 326-9110-288
• CI: 1.09
• Suction H: 1"
• Suction F: 16mb
• Pressure H: 3/4"
• Pressure F: 12mb
• PSI R1: 2700
• PSI R2: 3500
• Seal Kit: 720185
• Shaft Key: 720161
• Thrust Plate: 720229
• Series: P315


Can be used in the following kits: 700096, 700330, 700350, 700351, 700358, 700360, 700363, 700394, 700443, 700486, 700560, 700564
