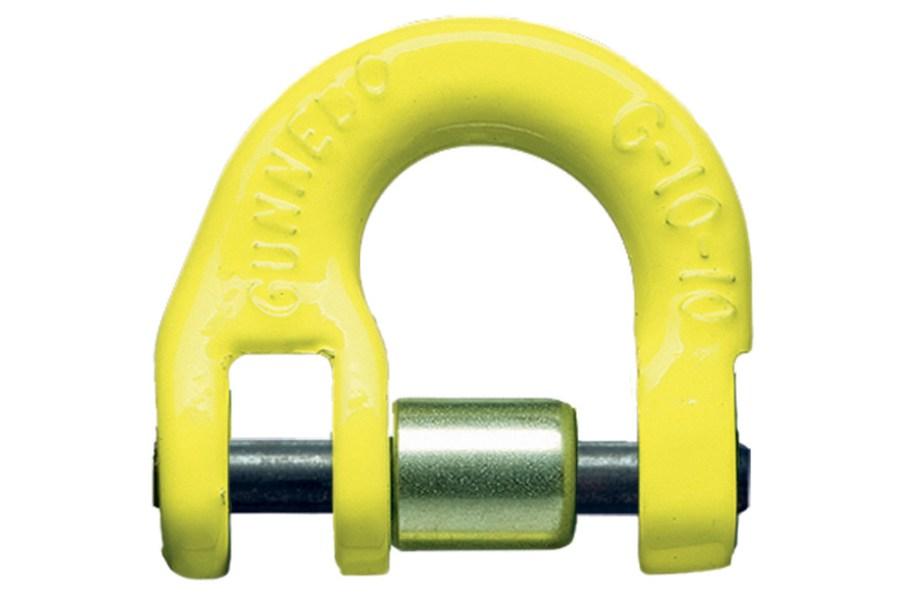

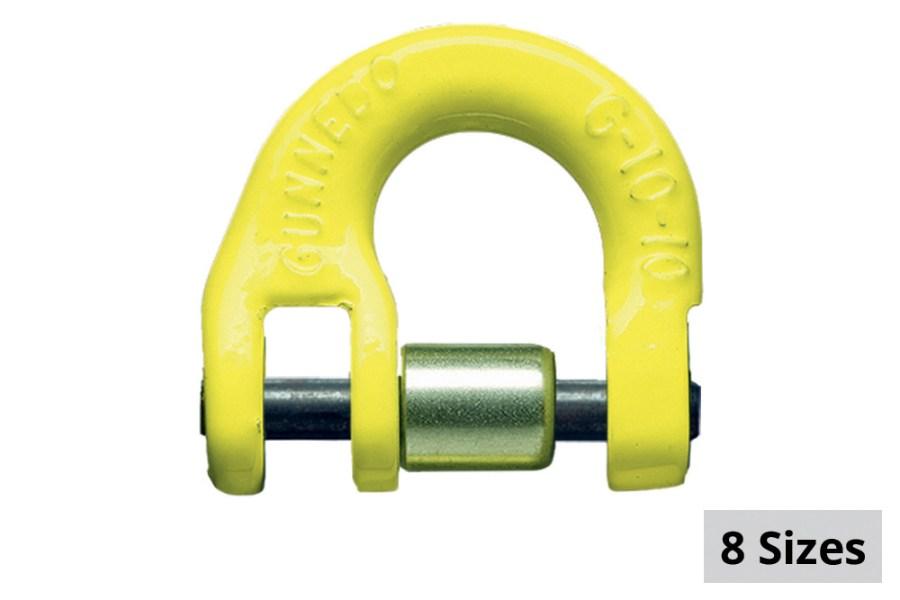

Gunnebo Classic Half-link SKT including Locking Set

Item #	GI-Z426286	GI-Z426383	GI-Z426480	GI-Z426587	GI-Z426684	GI-Z100225	GI-Z100226	GI-Z100227
Code	SKT-7/8-8	SKT-10-8	SKT-13-8	SKT-16-8	SKT-18/20-8	SKT-22-8	SKT-26-8	SKT-32-8
WLL lb*	4,500	7,100	12,000	18,000	28,300	34,200	47,700	72,300
For chain dim.	9/32, 5/16	3/8	1/2	5/8	3/4	7/8	1	1-1/4

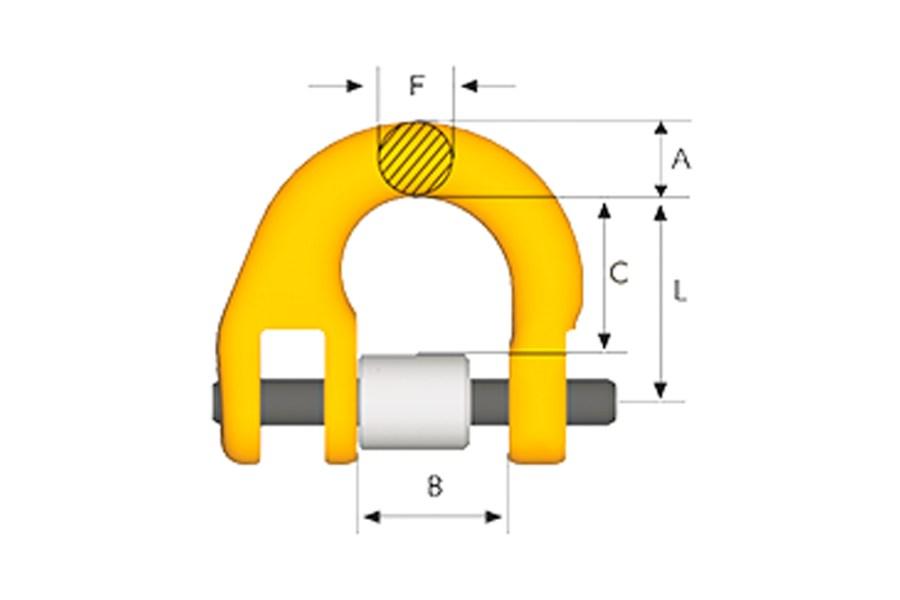

L	1.10	1.34	1.73	2.05	2.48	2.99	3.15	3.94
B	0.71	0.98	1.18	1.42	1.69	1.97	2.28	2.76
F	0.35	0.43	0.59	0.75	0.87	0.94	1.18	1.50
A	0.43	0.51	0.63	0.79	0.91	1.02	1.30	1.57
C	0.87	1.02	1.30	1.57	1.85	2.32	2.40	3.07
Weight lb	0.22	0.44	0.88	1.32	2.43	3.75	5.73	10.80
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Code

SKT-7/8-8

SKT-10-8

SKT-13-8

SKT-16-8

SKT-18/20-8

SKT-22-8

SKT-26-8

SKT-32-8

WLL lb*

4,500

7,100

12,000

18,000

28,300

34,200

47,700

72,300

For chain dim.

9/32, 5/16

3/8

1/2

5/8

3/4

7/8

1

1-1/4

L

1.10

1.34

1.73

2.05

2.48

2.99

3.15

3.94

B

0.71

0.98

1.18

1.42

1.69

1.97

2.28

2.76

F

0.35

0.43

0.59

0.75

0.87

0.94

1.18

1.50

A

0.43

0.51

0.63

0.79

0.91

1.02

1.30

1.57

C

0.87

1.02

1.30

1.57

1.85

2.32

2.40

3.07

Weight lb

0.22

0.44

0.88

1.32

2.43

3.75

5.73

10.80

Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015.
*Safety factor 4:1. All dimensions in inches.
