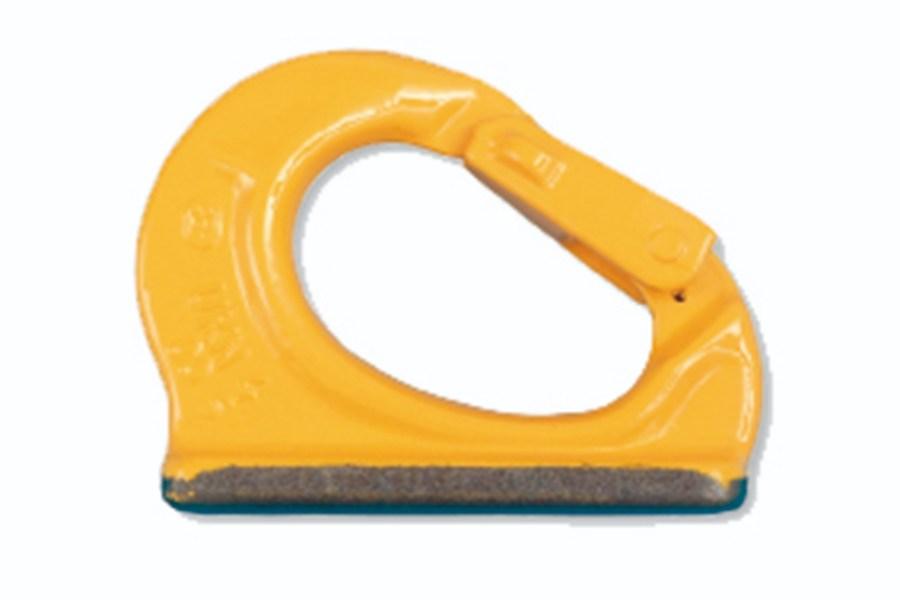

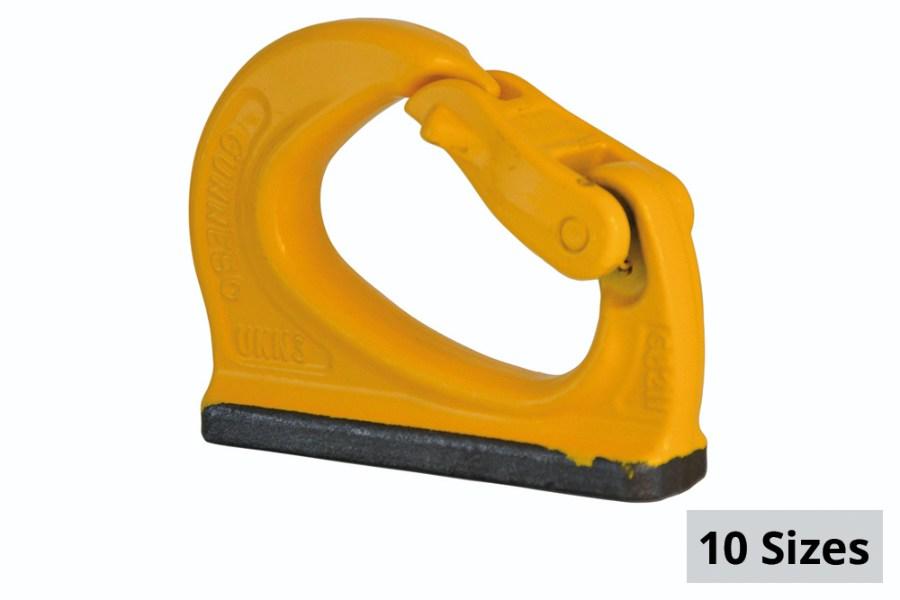

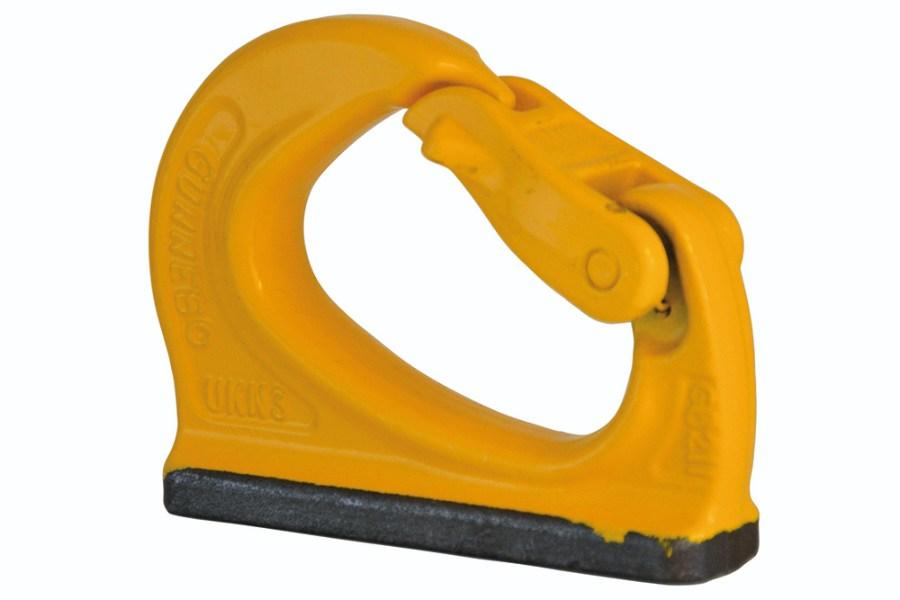

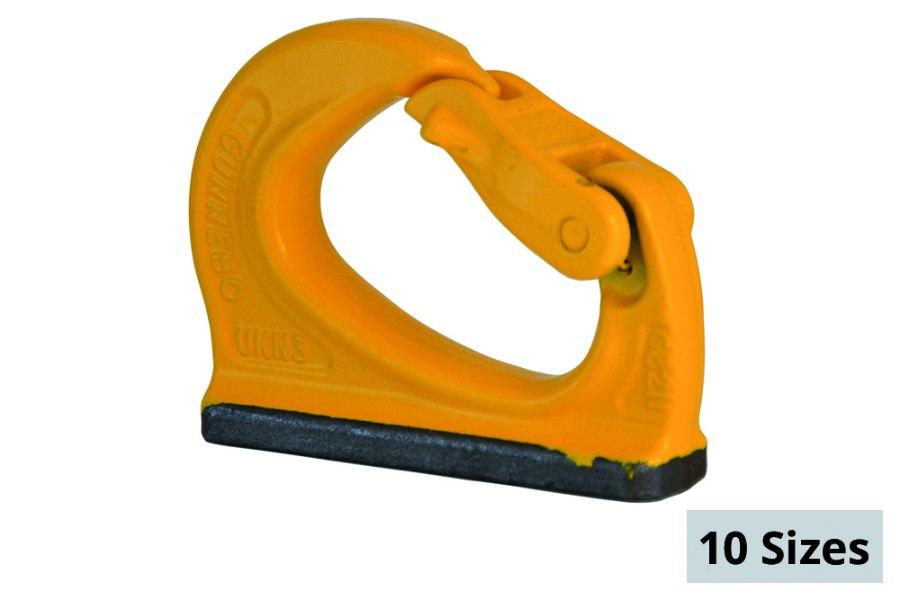

Gunnebo Classic Universal Weld-on Hook

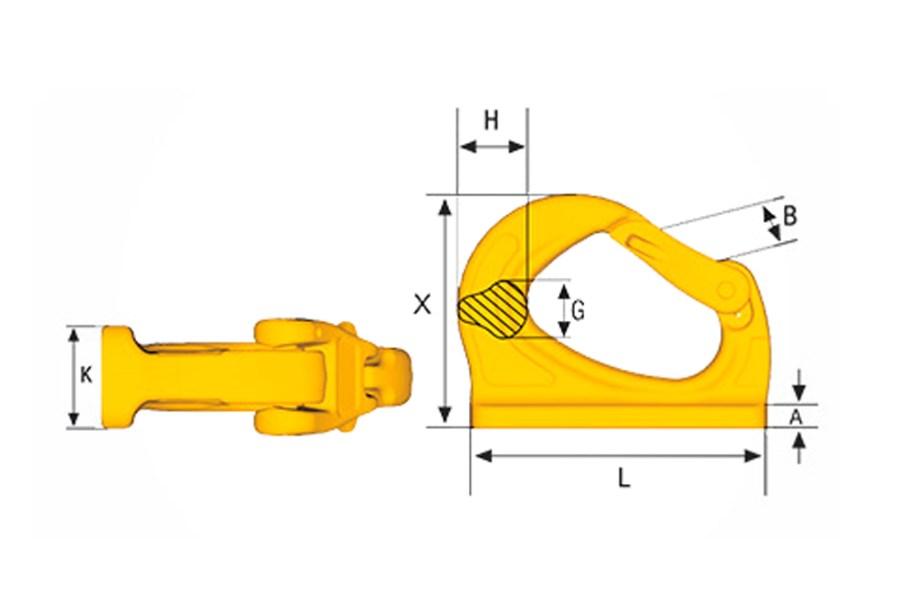

Item #	GI-Z1002560	GI-Z6511810	GI-Z7009060	GI-Z6455730	GI-Z6521160	GI-Z6455800	GI-Z6515390	GI-Z6456030	GI-Z1007850	GI-Z1007851
Code	UKN-0.75*	UKN-1*	UKN-2*	UKN-3	UKN-4	UKN-5	UKN-8	UKN-10	UKN-15	UKN-20
WLL lb*	1,653	2,204	4,500	6,612	8,800	11,020	17,632	22,040	33,060	44,080
B	0.79	1.06	1.30	1.18	1.18	1.34	1.34	.85	2.17	2.56
G	0.51	0.67	0.79	0.91	1.14	1.18	1.57	1.69	1.97	2.36
H	0.79	0.98	1.18	1.26	1.50	1.85	2.01	2.28	2.64	3.35
K	0.75	0.98	1.18	1.38	1.65	1.77	1.97	2.17	2.36	2.36
L	3.21	3.74	4.49	5.20	5.51	6.50	6.77	8.66	9.45	10.83
A	0.20	0.24	0.31	0.39	0.43	0.47	0.51	0.55	0.59	0.59
X	2.20	2.83	3.39	4.13	4.49	5.16	5.24	6.69	7.40	8.15
Weight lb	0.44	1.32	1.98	2.87	4.41	7.05	7.94	18.08	21.61	27.34
Fulfills requirements in: EN 474-1. * Welding plate slightly curved. ** Safety factor 5:1. All dimensions in inches.

Code

UKN-0.75*

UKN-1*

UKN-2*

UKN-3

UKN-4

UKN-5

UKN-8

UKN-10

UKN-15

UKN-20

WLL lb*

1,653

2,204

4,500

6,612

8,800

11,020

17,632

22,040

33,060

44,080

B

0.79

1.06

1.30

1.18

1.34

.85

2.17

2.56

G

0.51

0.67

0.79

0.91

1.14

1.18

1.57

1.69

1.97

2.36

H

0.79

0.98

1.18

1.26

1.50

1.85

2.01

2.28

2.64

3.35

K

0.75

0.98

1.18

1.38

1.65

1.77

1.97

2.17

2.36

L

3.21

3.74

4.49

5.20

5.51

6.50

6.77

8.66

9.45

10.83

A

0.20

0.24

0.31

0.39

0.43

0.47

0.51

0.55

0.59

X

2.20

2.83

3.39

4.13

4.49

5.16

5.24

6.69

7.40

8.15

Weight lb

0.44

1.32

1.98

2.87

4.41

7.05

7.94

18.08

21.61

27.34

Fulfills requirements in: EN 474-1. * Welding plate slightly curved. ** Safety factor 5:1. All dimensions in inches.
