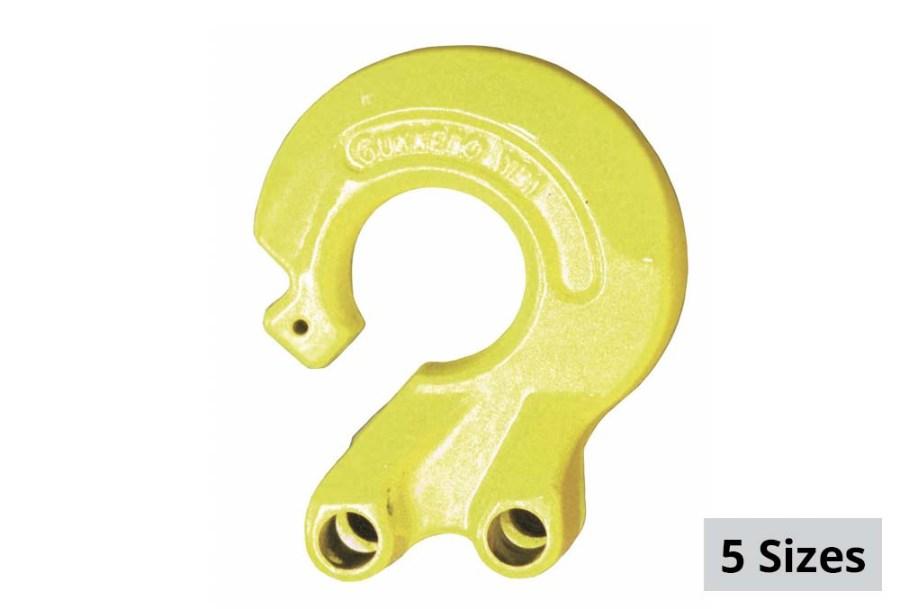

Gunnebo GrabiQ C-Lok Duo CLD

The Gunnebo GrabiQ C-Lok Duo CLD hook was designed for use with master links, eyehooks and choke. This versatile hook features a safety factor of 4:1 and is 25% stronger than any grade 80 hook. This hook is approved for overhead lifting. Plus its rigorously tested high-quality steel can handle up to 39,321 lbs. More information is available in the dropdown menu.

It comes with a heat number identification that tells you not only precisely which plant the product was made in, but the year and batch as well. Thanks to its heavy-duty finish you can trust this heat-treated hook to connect the master link on your sling to the lifting chain leg, providing a safe and secure lifting point on the job.

• 5 sizes: 7/32”-5/8"
• WLL: 5,700-39,321 lbs
• Safety factor 4:1
• Grade 100 approved for overhead lifting
• Connects chains, slings and hooks
• Heat number identification for traceability
• Approved by BG/DGUV
• Made of high-quality steel

Imperial

Item #	GI-B14740	GI-B14741U	GI-B14742U	GI-B14743U	GI-B14744U
Code	CLD-6-10	CLD-8-10	CLD-10-10	CLD-13-10	CLD-16-10
WLL lb*	5,700	9,918	15,317	26,007	39,231

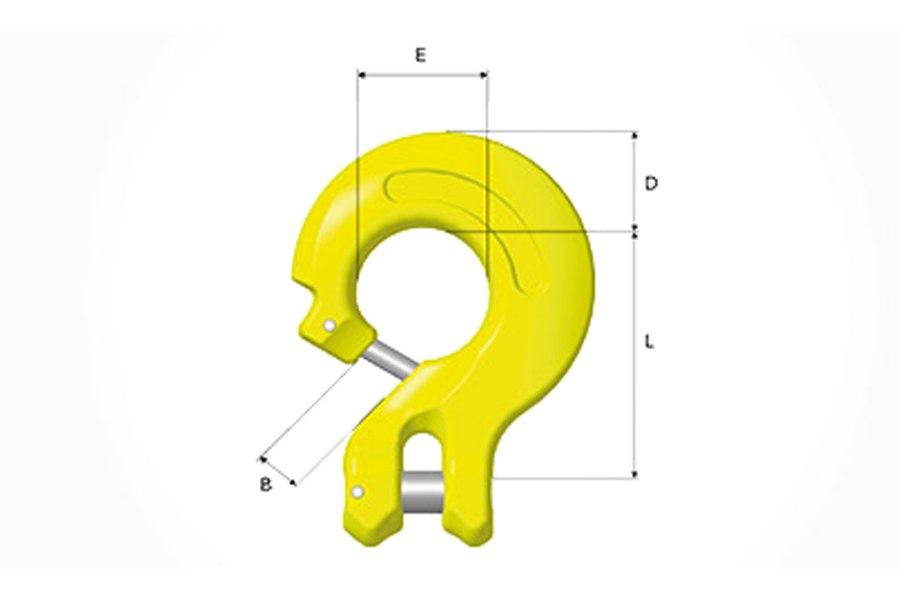

L	1.69	2.28	2.91	3.70	4.69
B	0.43	0.47	0.59	0.71	0.98
E	0.94	1.26	1.57	2.05	2.52
D	0.87	1.14	1.46	1.81	2.24
Weight lb	0.88	1.32	2.65	6.83	12.13
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. Note! The maximum in service temperature is 392°F. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-B14740	GI-B14741U	GI-B14742U	GI-B14743U	GI-B14744U
Code	CLD-6-10	CLD-8-10	CLD-10-10	CLD-13-10	CLD-16-10
WLL tonnes*	2.1	3.5	5.6	9.5	14.0
L	43	58	74	94	119
B	11	12	15	18	25
E	24	32	40	52	64
D	22	29	37	46	57
Weight kg	0.4	0.6	1.2	3.1	5.5
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm.
