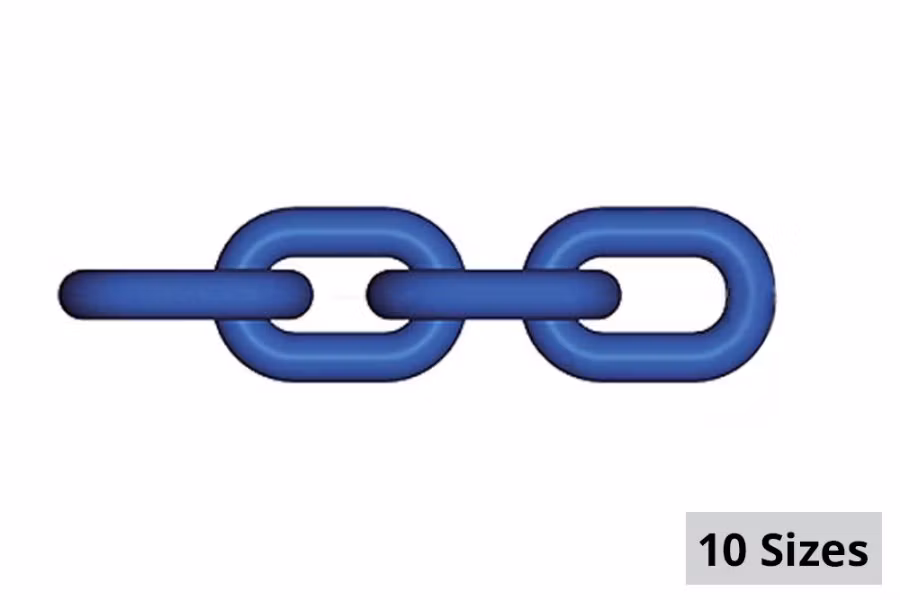

GrabIQ Grade 100 bulk chain from Gunnebo Industries is hardened and heat-treated for tempered durability and strength. Available in 10 sizes with Working Load Limits to 88,160 lbs., the chain is lighter than Grade 80 chain and 25 percent stronger. The chain is approved for overhead lifting and painted blue for easy identification.
As with all GrabIQ products, the chain links are stamped for traceability and production standards. Here you can find the country of origin, manufacturer identification, grade, batch letter and code. Traceability makes it possible to track the product through the whole production process back to the raw material.
- Size: 7/32” to 1-1/4”
- WLL: 3,306 lbs. To 88,160 lbs.
- Meets EN 1677-4, ASTM A952, AS 3775.2 and DNV 2.7-1
- Approved for overhead lifting
- Heat-treated and tempered
- Stamped for traceability
- Painted blue for easy identification
Imperial
Item # |
GI-Z802300 |
GI-Z802337 |
GI-Z802301 |
GI-Z802302 |
GI-Z802303 |
GI-Z802304 |
GI-Z802305 |
GI-Z802246 |
GI-Z802248 |
GI-Z802440 |
Box |
1 x 656 ft |
1 x 656 ft |
1 x 656 ft |
1 x 328 ft |
1 x 328 ft |
1 x 100 m |
1 x 164 ft |
1 x 164 ft |
1 x 164 ft |
1 x 82 ft |
Code |
KLA 6-10 (200) |
KLA 7-10 (200) |
KLA 8-10 (200) |
KLA 10-10 (200) |
KLA 13-10 (200) |
KLA 16-10 (200) |
KLA 20-10 (200) |
KLA 22-10 (200) |
KLA 26-10 (200) |
KLA 32-10 (200) |
WLL lb |
3,306 |
4,300 |
5,700 |
8,800 |
15,000 |
22,600 |
35,300 |
44,080 |
59,500 |
88,160 |

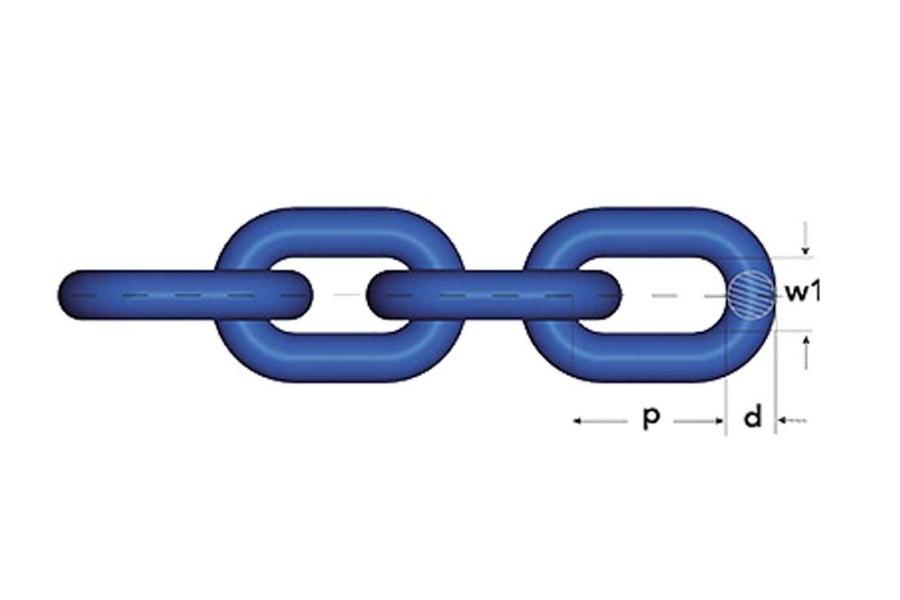

d nom |
(6mm) |
9/32” |
5/16” |
3/8” |
1/2” |
5/8” |
3/4” |
7/8” |
1” |
1-1/4” |
P |
0.71 |
0.83 |
0.94 |
1.18 |
1.54 |
1.89 |
2.36 |
2.60 |
3.07 |
3.78 |
w1 |
0.33 |
0.39 |
0.43 |
0.55 |
0.70 |
0.86 |
1.06 |
1.14 |
1.38 |
1.64 |
Weight lb/foot |
0.54 |
0.74 |
0.94 |
1.55 |
2.55 |
3.77 |
6.32 |
7.93 |
9.81 |
16.40 |
MPF kN |
8,272 |
10,790 |
14,162 |
22,030 |
37,316 |
56,424 |
88,346 |
110,376 |
149,267 |
220,528 |
Breaking force lb |
13,240 |
17,309 |
22,929 |
35,518 |
60,246 |
90,369 |
141,624 |
176,468 |
238,737 |
361,928 |
All dimensions in inches. |
Metric
Item # |
GI-Z802300 |
GI-Z802337 |
GI-Z802301 |
GI-Z802302 |
GI-Z802303 |
GI-Z802304 |
GI-Z802305 |
GI-Z802246 |
GI-Z802248 |
GI-Z802440 |
Box |
1 x 200 m |
1 x 200 m |
1 x 200 m |
1 x 100 m |
1 x 100 m |
1 x 100 m |
1 x 50 m |
1 x 50 m |
1 x 50 m |
1 x 25 m |
Code |
KLA 6-10 (200) |
KLA 7-10 (200) |
KLA 8-10 (200) |
KLA 10-10 (200) |
KLA 13-10 (200) |
KLA 16-10 (200) |
KLA 20-10 (200) |
KLA 22-10 (200) |
KLA 26-10 (200) |
KLA 32-10 (200) |
WLL tonnes |
1.5 |
1.95 |
2.6 |
4.0 |
6.8 |
10.3 |
16.0 |
20.0 |
27.0 |
40.0 |
d nom |
6 |
7 |
8 |
10 |
13 |
16 |
20 |
22 |
26 |
32 |
P |
18 |
21 |
24 |
30 |
39 |
48 |
60 |
66 |
78 |
96 |
w1 |
8.5 |
10.0 |
11.0 |
14.0 |
17.7 |
21.9 |
27.0 |
29.0 |
35.0 |
41.6 |
Weight kg/m |
0.8 |
1.1 |
1.4 |
2.3 |
3.8 |
5.6 |
9.4 |
11.9 |
16.4 |
25.8 |
MPF kN |
36.8 |
48 |
63 |
98 |
166 |
251 |
393 |
491 |
664 |
981 |
Breaking force kN |
58.9 |
77 |
102 |
158 |
268 |
402 |
630 |
785 |
1062 |
1610 |
All dimensions in mm. |
