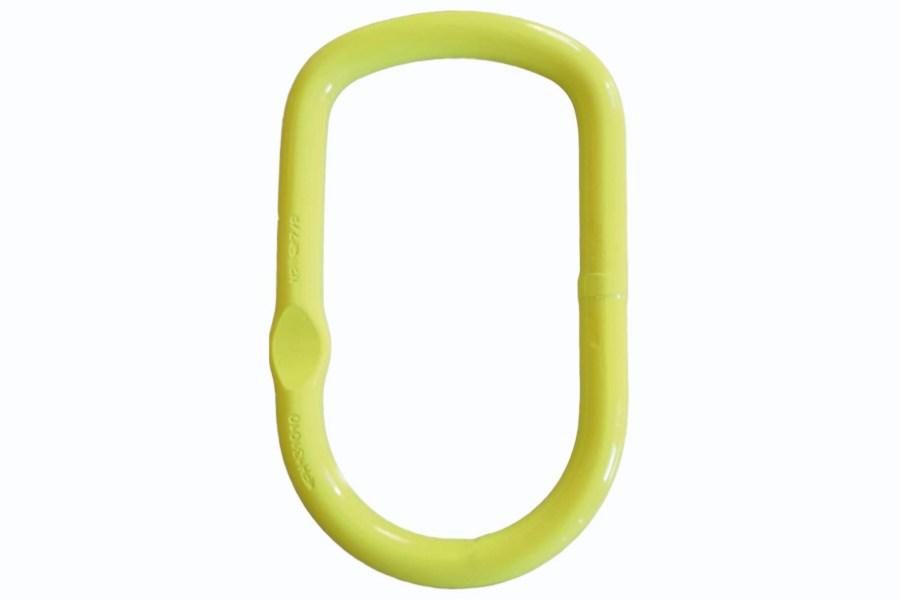

Gunnebo GrabiQ Master Link MFH

The MFH Master Link from Gunnebo is used with GrabIQ slings and is specifically designed for crane hooks and 3- and 4-leg slings. Choose from 5 sizes with Working Load Limits ranging from 17,632 lbs. to 61,712 lbs. Featuring a Safety Factor of 5:1, each MFH Master Link allows for quick insertion and removal as needed for the lifting job.

As with all GrabIQ products, each master link is stamped for traceability and production standards. Here you can find the country of origin, manufacturer identification, grade, batch letter and code. Traceability makes it possible to track the product through the whole production process back to the raw material.

• 5 sizes available: 7/8" to 1-9/16"
• WLL: 17,632 lbs. to 68,104 lbs.
• Safety Factor: 5:1
• Accommodates 3- and 4-leg slings
• Stamped for traceability

Imperial

Item #	GI-Z101262	GI-Z101263	GI-Z101264	GI-Z101265	GI-Z101266
Code	MFH-1310-10	MFH-1613-10	MFH-2016-10	MFH-2220-10	MFHW-2220-10
WLL lb (SF 5:1) EN 1677-4	16,530	22,040	37,468	61,712	55,617
WLL lb (SF 5:1) A952/A952M AS 2775.2	17,632	29,974	45,402	68,104	61,712
For chain size 1-leg	1/2	5/8	3/4	7/8	7/8
For chain size 2-leg	3/8	1/2	5/8	3/4	3/4
For chain size 3-4-leg	5/16	3/8	1/2	5/8	5/8

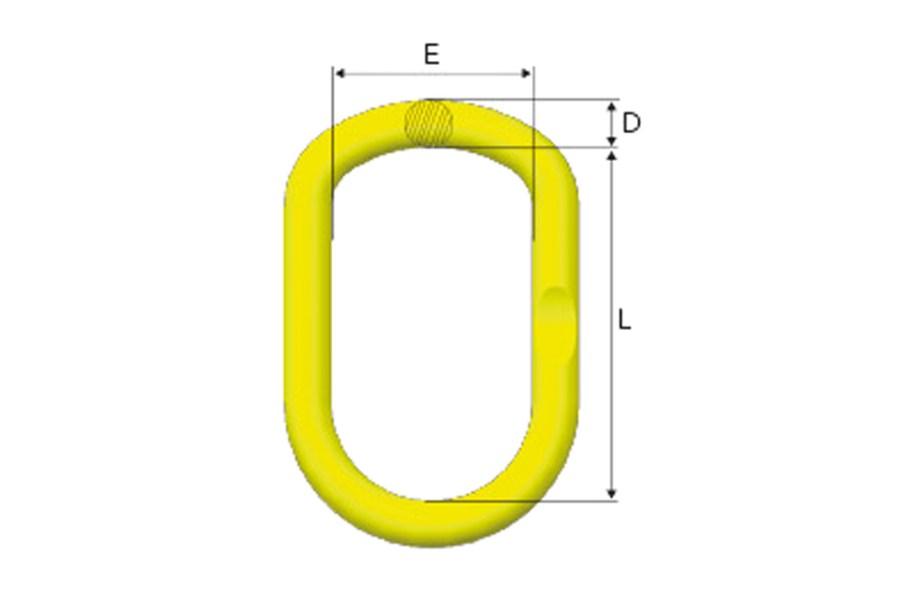

L	9.06	9.84	11.02	12.60	13.98
E	4.92	5.31	5.31	6.89	8.86
D	7/8	1-1/8	1-1/4	1-9/16	1-9/16
DIN 15401	≤ 12mm	≤ 12mm	≤ 16mm	≤ 25mm	≤ 50mm
DIN 15402	≤ 16mm	≤ 16mm	≤ 20mm	≤ 32mm	≤ 63mm
Weight lb	4.19	7.05	10.14	18.96	21.83
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M, AS 3775:2014 and AS 3776:2015. All dimensions in inches.

Metric

Item #	GI-Z101262	GI-Z101263	GI-Z101264	GI-Z101265	GI-Z101266
Code	MFH-1310-10	MFH-1613-10	MFH-2016-10	MFH-2220-10	MFHW-2220-10
WLL lb (SF 5:1) EN 1677-4	7.5	10.0	17.0	28.0	28.0
WLL lb (SF 5:1) A952/A952M AS 3775.2	8.0	13.6	20.6	30.9	28.0
For chain size 1-leg	13	16	20	22	22
For chain size 2-leg	10	13	16	20	20
For chain size 3-4-leg	8	10	10	16	16
L	230	250	280	320	355
E	125	135	135	175	225
D	22	28	32	40	40
DIN 15401	≤ 12	≤ 12	≤ 16	≤ 25	≤ 50
DIN 15402	≤ 16	≤ 16	≤ 20	≤ 32	≤ 63
Weight kg	2.1	3.7	5.3	9.7	11.1
Fulfills requirements in: EN 1677:2008 (WLL +25%),ASTM A952/A952M-02, AS 3775:2014 and AS 3776:2015. All dimensions in mm.
