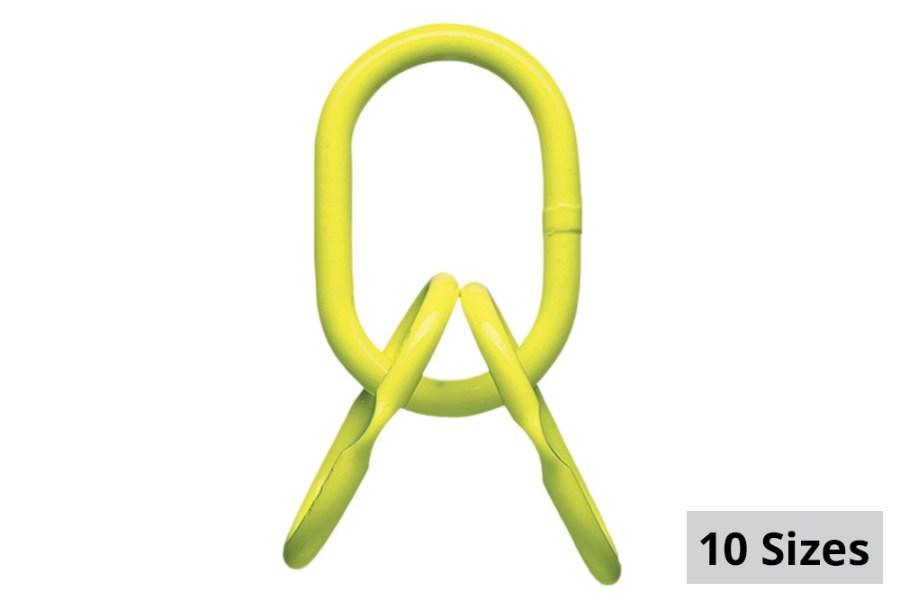

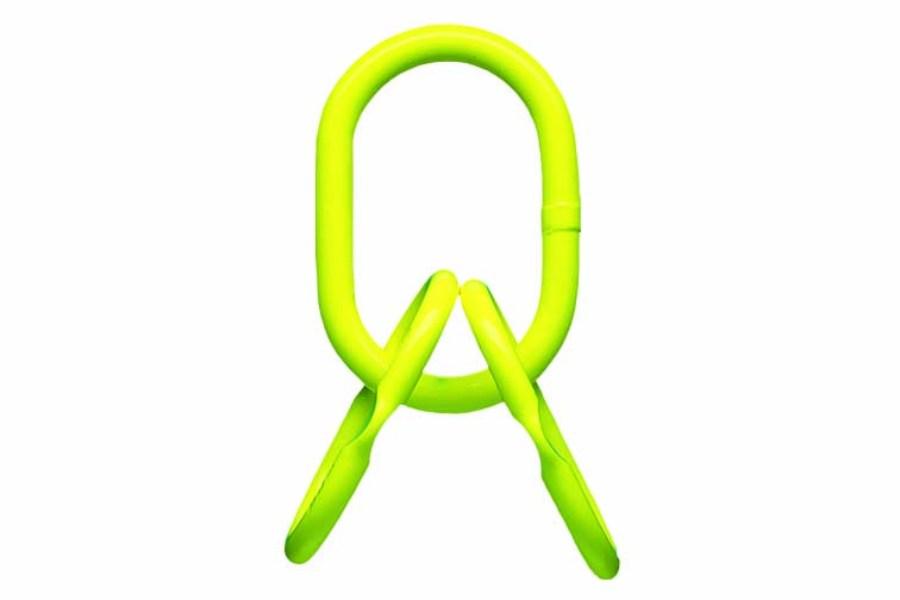

Gunnebo GrabiQ Master Link MT with Sub Links

The MT Master Link from Gunnebo is designed for use with chain or wire rope and works with three- and four-leg GrabIQ slings. Choose from 10 sizes with Working Load Limits ranging from 11,020 lbs. to 275,500 lbs. Featuring a Safety Factor of 5:1, each MT Master Link allows for efficient sling connection, and the various capacities of links allow for safe lifting with the correct master link.

As with all GrabIQ products, each master link is stamped for traceability and production standards. Here you can find the country of origin, manufacturer identification, grade, batch letter and code. Traceability makes it possible to track the product through the whole production process back to the raw material.

• 10 sizes available: 1/2" to 2-1/8"
• WLL: 11,020 lbs. to 275,500 lbs.
• Safety Factor: 5:1
• Sublinks accept 3- and 4-leg slings
• Works with chain and wire rope
• Stamped for traceability

Imperial

Item #	GI-Z100902	GI-Z100903	GI-Z101359	GI-Z100904	GI-Z100905	GI-Z100906	GI-Z101074	GI-Z101281	GI-Z101282	GI-Z101283
Code	MT-6-10	MT-8-10	MT-9-10	MT-10-10	MT-13-10	MT-16-10	MT-20-10	MT-22-10	MT-26-10	MT-32-10
WLL lb (SF 5:1) EN 1677-4	7,714	11,461	15,208	25,346	37,468	61,712	77,140	116,812	154,280	198,360
WLL lb (SF 5:1) A-952/A952M AS 3775.2-2014	11,020	17,632	21,379	35,300	57,304	77,140	110,200	165,300	220,400	275,500

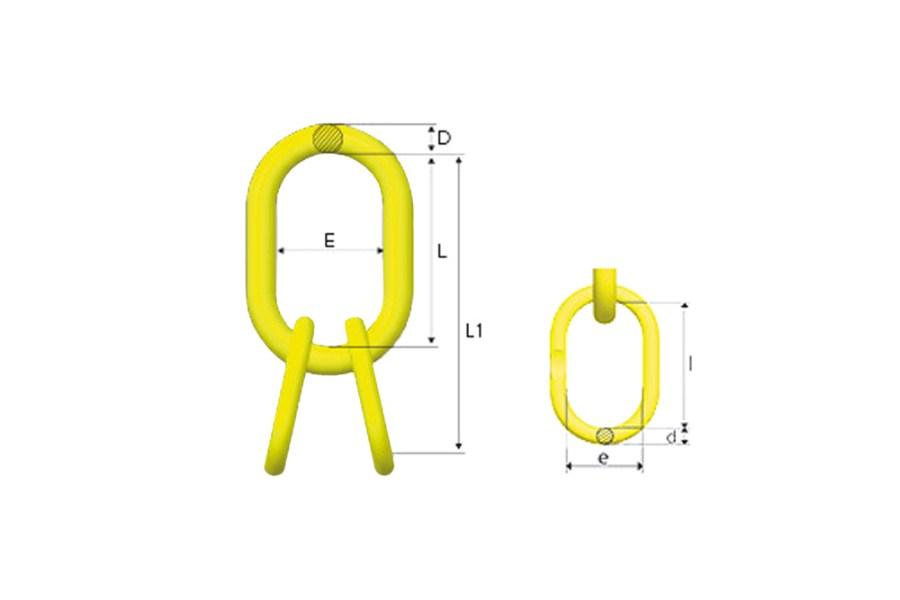

L1	10.63	11.81	13.39	14.17	17.32	19.69	21.65	24.02	28.74	28.74
L	5.91	6.30	7.48	7.87	9.84	11.81	11.81	13.78	17.72	17.72
E	3.54	3.74	4.33	4.72	5.91	7.87	7.87	7.87	9.84	10.24
D	3/4	7/8	1-1/8	1-3/16	1-9/16	2	2-1/8	2-3/8	2-3/4	3-1/8
l	4.72	4.72	5.91	6.30	7.48	7.87	9.84	10.24	11.02	11.02
e	2.76	3.15	3.54	3.74	4.33	4.72	5.91	5.51	6.30	6.30
d	1/2	5/8	3/4	7/8	1-1/8	1-1/4	1-9/16	1-3/4	2	2-1/8
Weight lb	3.97	6.61	10.80	14.11	31.31	50.71	69.45	101.41	156.53	200.62
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M, AS 3775:2014 and AS 3776:2015. Flattened section on the sublinks for sizes up to MT-16-10 except MT-9-10. All dimensions in inches.

Metric

Item #	GI-Z100902	GI-Z100903	GI-Z101359	GI-Z100904	GI-Z100905	GI-Z100906	GI-Z101074	GI-Z101281	GI-Z101282	GI-Z101283
Code	MT-6-10	MT-8-10	MT-9-10	MT-10-10	MT-13-10	MT-16-10	MT-20-10	MT-22-10	MT-26-10	MT-32-10
WLL t (SF 5:1) EN 1677-4	3.5	5.2	6.9	11.5	17.0	28.0	35.0	53.0	70.0	90.0
WLL t (SF 5:1) ASTM A-952	5.0	8.0	9.7	16.0	26.0	35.0	50.0	75.0	100.0	125.0
L1	270	300	340	360	440	500	550	610	730	730
L	150	160	190	200	250	300	300	350	450	450
E	90	95	110	120	150	200	200	200	250	250
D	19	22	28	30	40	50	55	60	70	80
l	125	140	150	160	190	200	250	260	280	280
e	70	80	90	95	110	120	150	140	160	160
d	14	17	19	22	28	32	40	45	50	55
Weight kg	1.8	3.0	4.9	6.4	14.2	23	31.5	46	71	91
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M, AS 3775:2014 and AS 3776:2015. Flattened section on the sublinks for sizes up to MT-16-10 except MT-9-10. All dimensions in mm.
