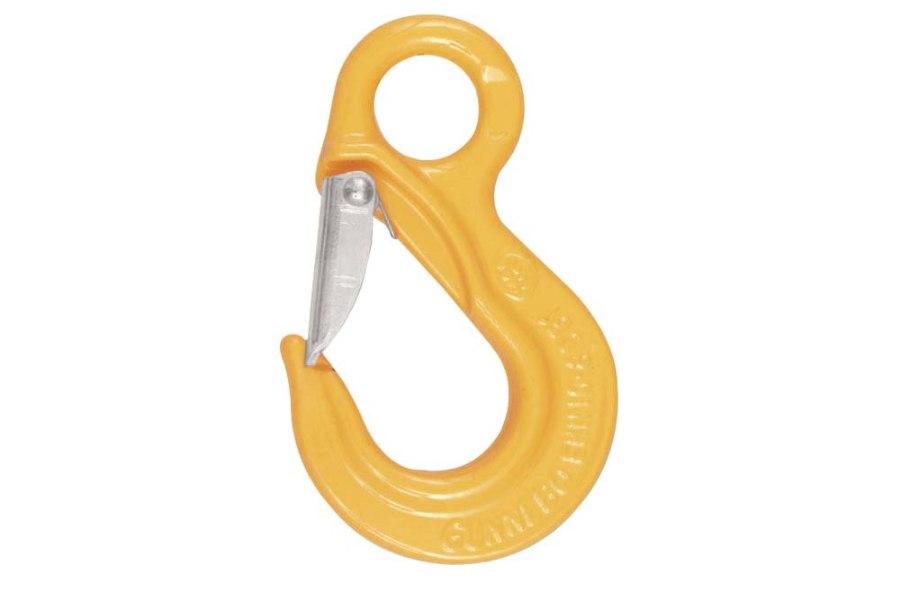

Gunnebo GrabiQ Sling Hook EKN

Item #	GI-Z101128	GI-Z101130	GI-Z101132	GI-Z101134	GI-Z101136	GI-Z101327	GI-Z101328	GI-Z101329	GI-Z100725	GI-Z101330
Code	EKN- 6-10	EKN- 7/8-10	EKN-10-10	EKN-13-10	EKN-16-10	EKN-20-10	EKN-22-10	EKN-26-10	72,300 WLL	EKN-32-10
WLL lb*	3,306	5,700	8,800	15,000	22,600	35,300	44,080	60,169	72,311	88,160

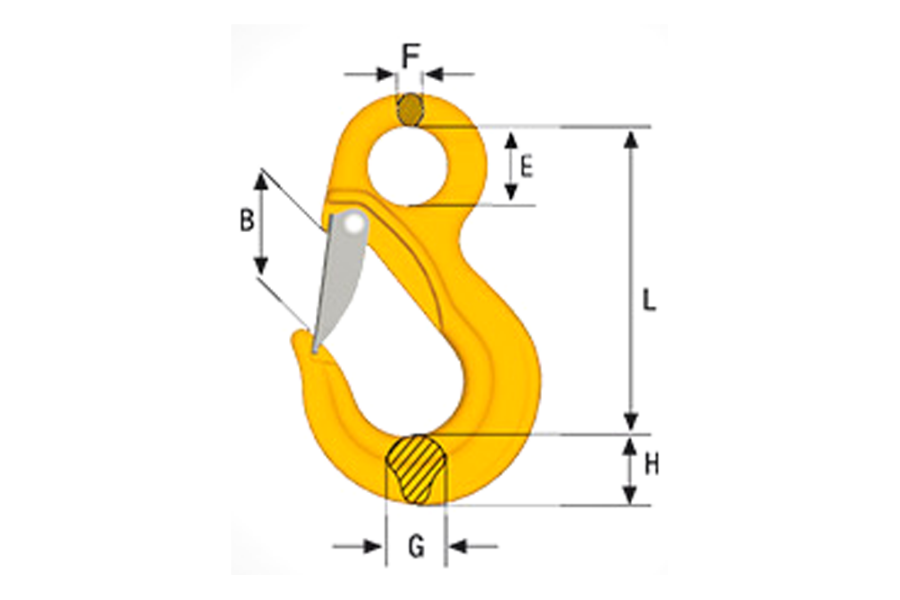

L	3.66	4.25	5.28	6.54	7.99	9.02	10.51	11.85	13.11	13.90
B	0.98	1.02	1.38	1.65	2.09	2.56	2.87	3.23	3.66	3.78
E	0.91	1.10	1.34	1.73	2.20	2.40	2.52	2.60	2.99	3.54
F	0.39	0.47	0.55	0.71	0.87	1.02	1.22	1.26	1.50	1.50
G	0.67	0.67	0.91	1.10	1.42	1.65	1.69	2.01	2.40	2.40
H	0.79	0.91	1.18	1.50	1.85	2.36	2.64	2.95	3.14	3.86
Weight lb	0.88	1.32	2.20	4.63	8.82	14.11	19.62	28.66	41.73	55.12
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.
