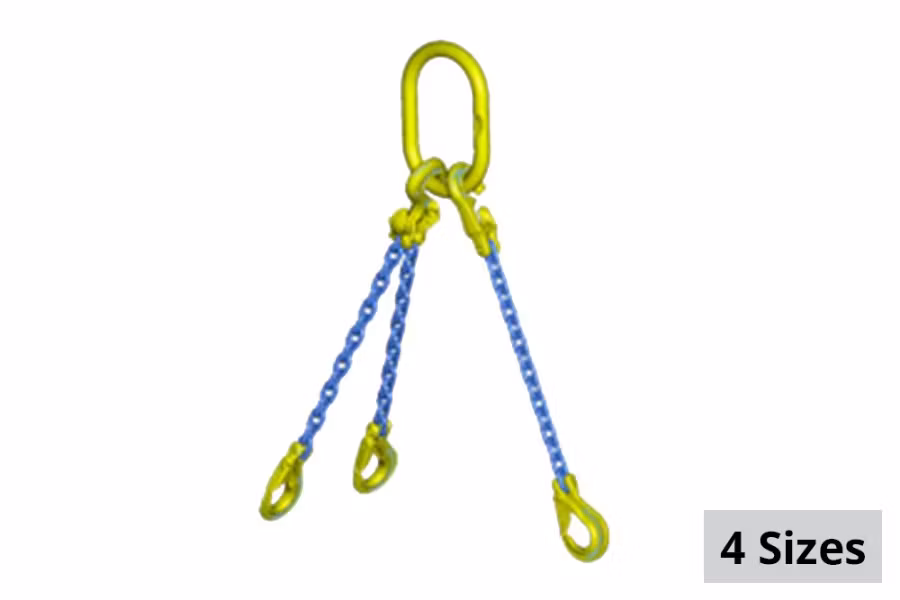

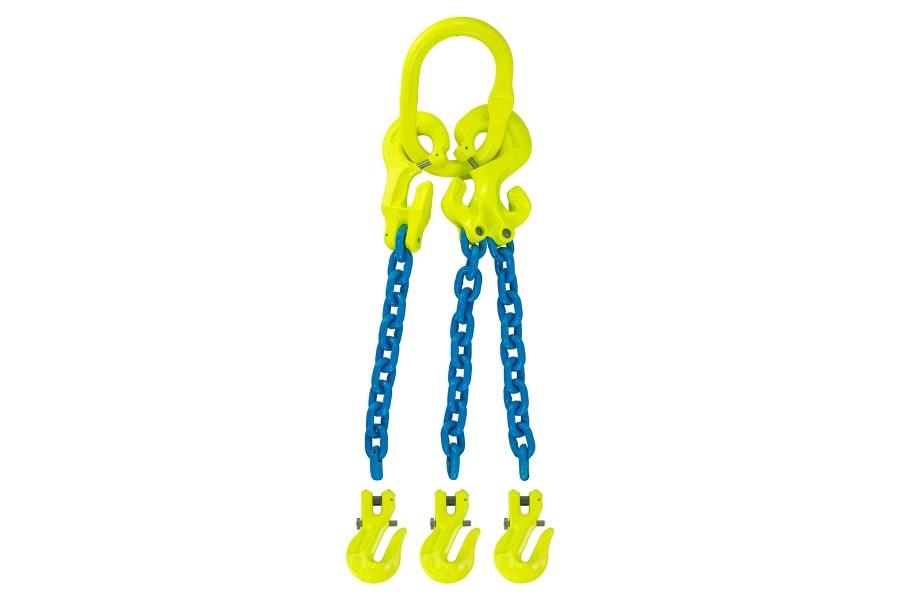

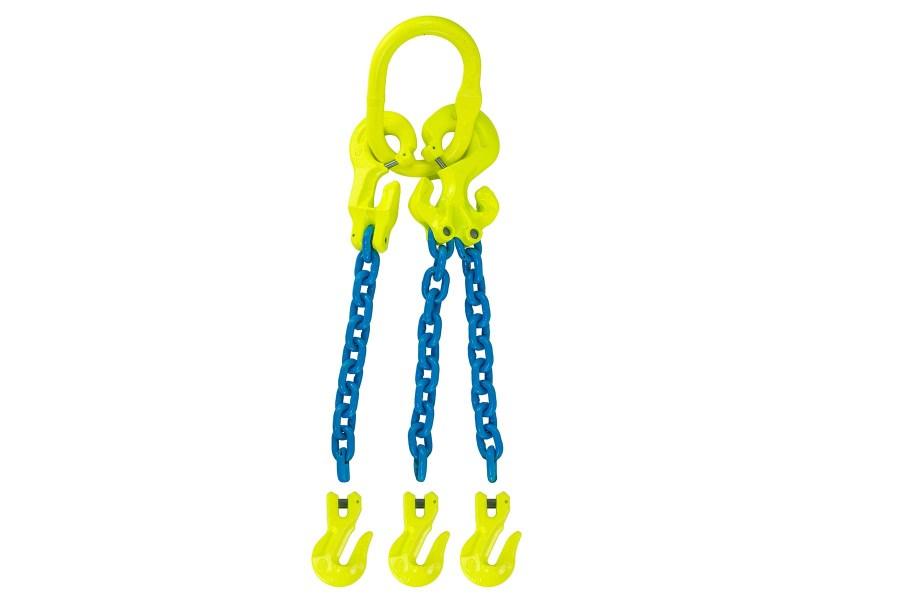

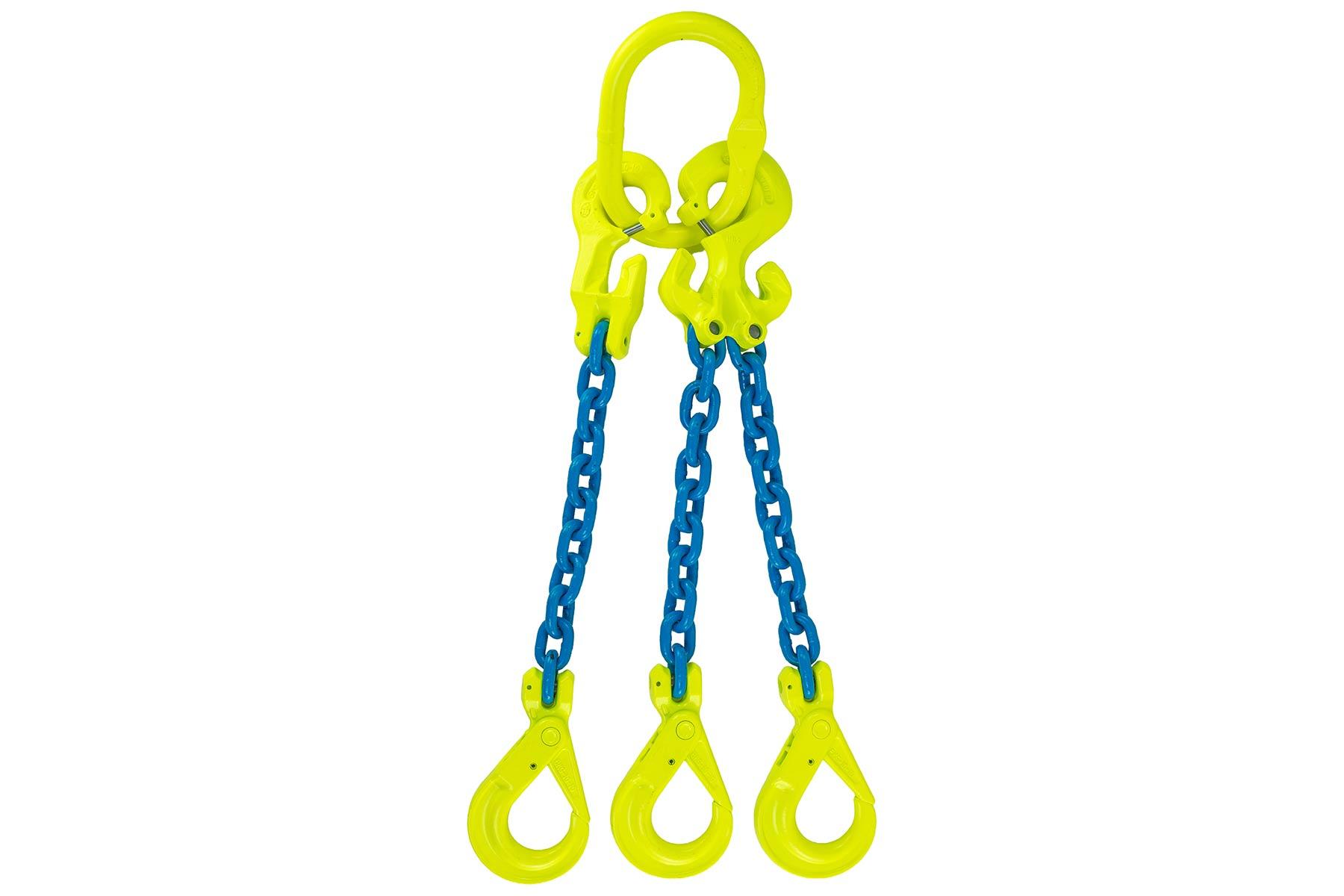

Gunnebo GrabiQ Triple Flexi-Leg Chain Sling

Increase the flexibility in your overhead lifting operations with Gunnebo’s GrabIQ FlexiLeg chain sling kits from Zip’s AW Direct. Add or remove legs as needed for the object being lifted with the removable QuickPin on each connecting hook to the master link. This stainless steel pin allows for safe exchange of sling legs and offers an instant open and close function so no tools are required.

The triple leg FlexiLeg chain sling includes one dual leg setup and one single leg length. A C-Grab Duo CGD hook and a C-Grab CG hook connects to the oblong master link. The integrated grab hooks at the neck allow for quick chain shortening to adapt to any lifting application. All three legs are made from Grade 100 chain and are approved for overhead lifting. The safety yellow paint allows for easy identification.

Offering a safety factor of 4:1, chain size ranges from 5/16”- 5/8”, and depending on the link size, the length for each leg ranges from 15”-26”. The Working Load Limit (WLL) ranges from 8,500 lbs. to 58,700 lbs. Please note the angle of the lift affects the WLL of each leg. See table. The WLL is based upon equally loaded and disposed sling legs.

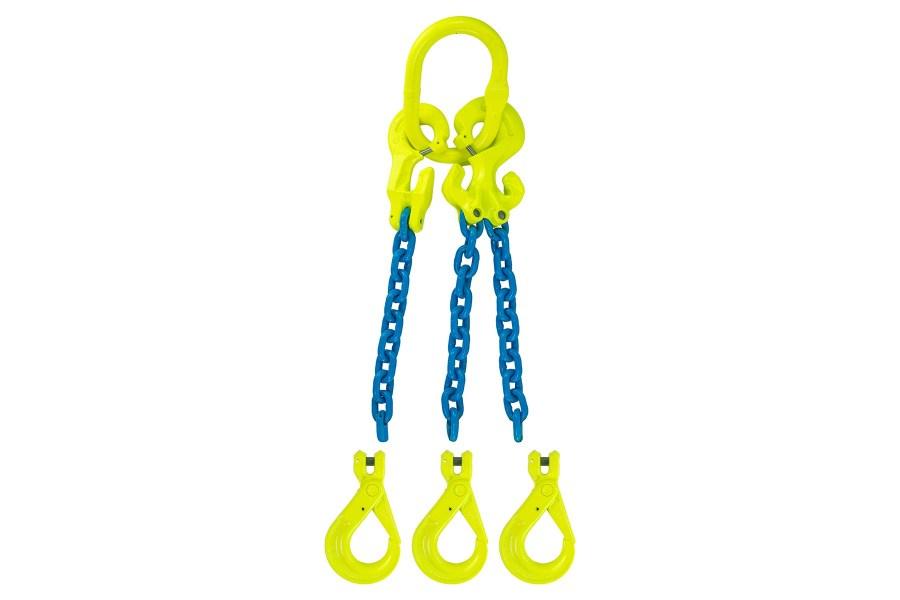

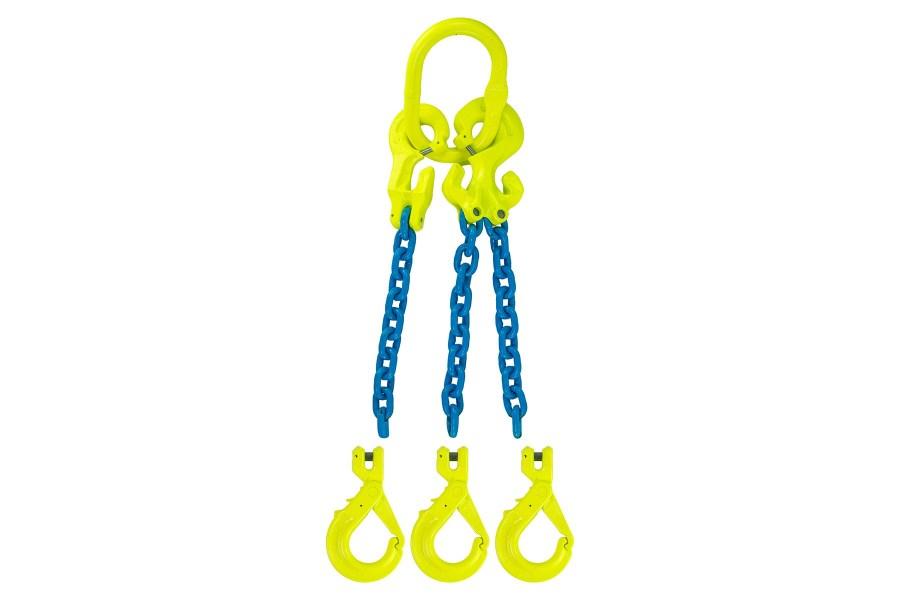

A stainless steel metal FlexiTag is attached to each sling and contains all pertinent safety information. Five hook options allow for the right connection for the job. Choose from sling, foundry, cradle grab, safety hook and grab hook with lock attachments.

• Three chain legs
• Grade 100
• Chain size: 5/16”-5/8”
• Leg lengths: 15.43”-26.77”
• WLL: 8,500 lbs.-58,700 lbs.
• Oblong master link
• C-Grab CG connecting hook
• C-Grab DUO CGD connecting hook
• Shortening functions

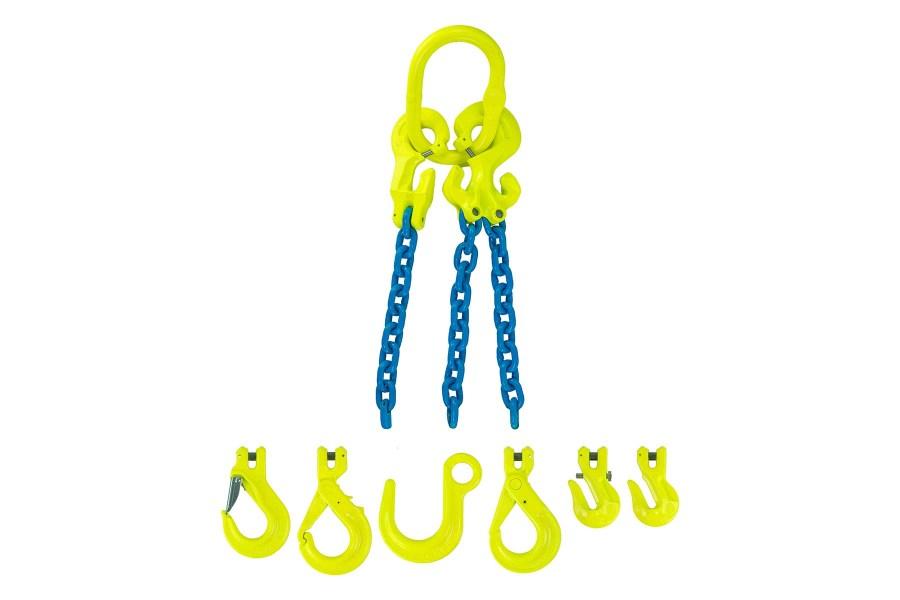

• Five hook attachment options

Available in the following sizes

Size	Length	End Fitting

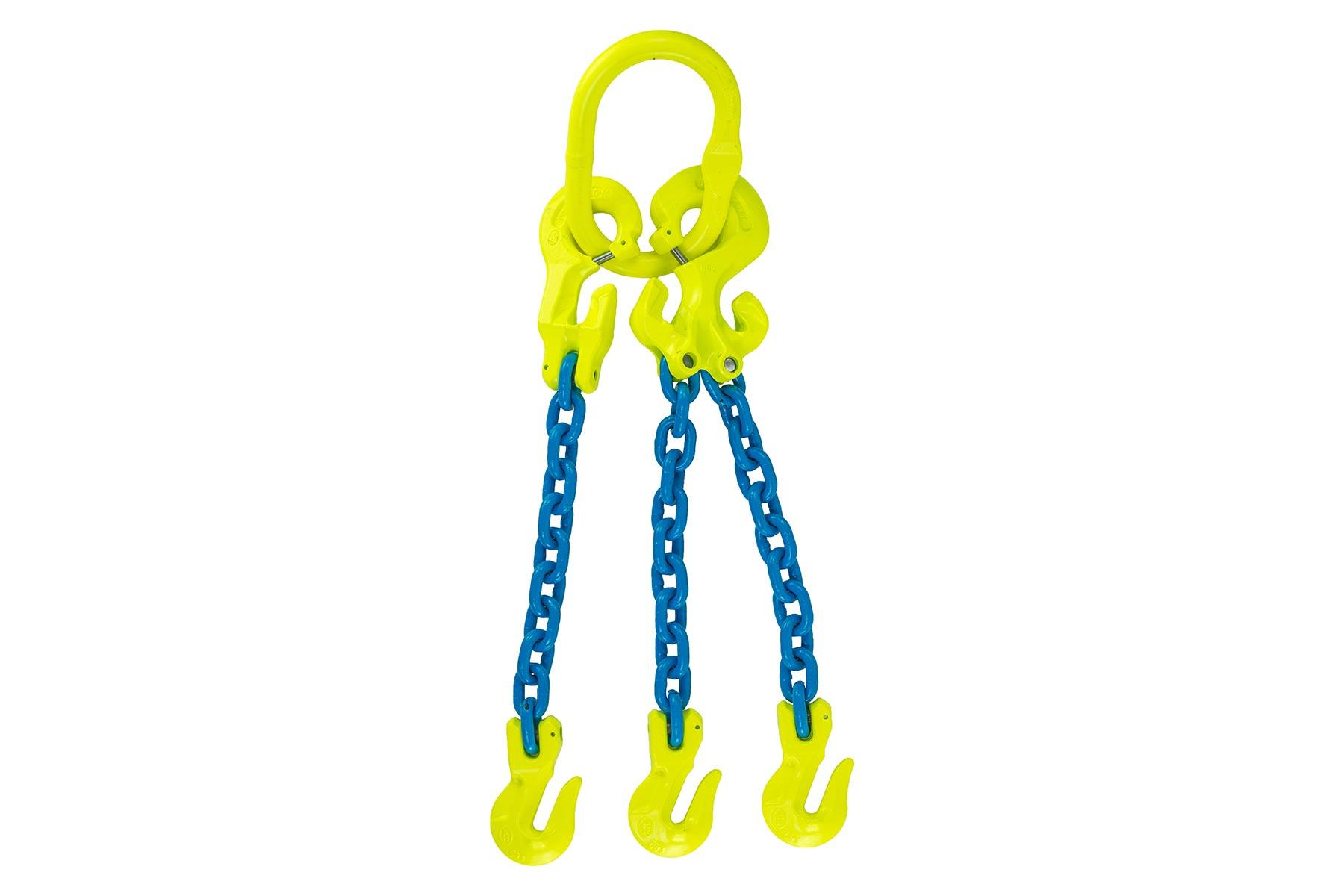

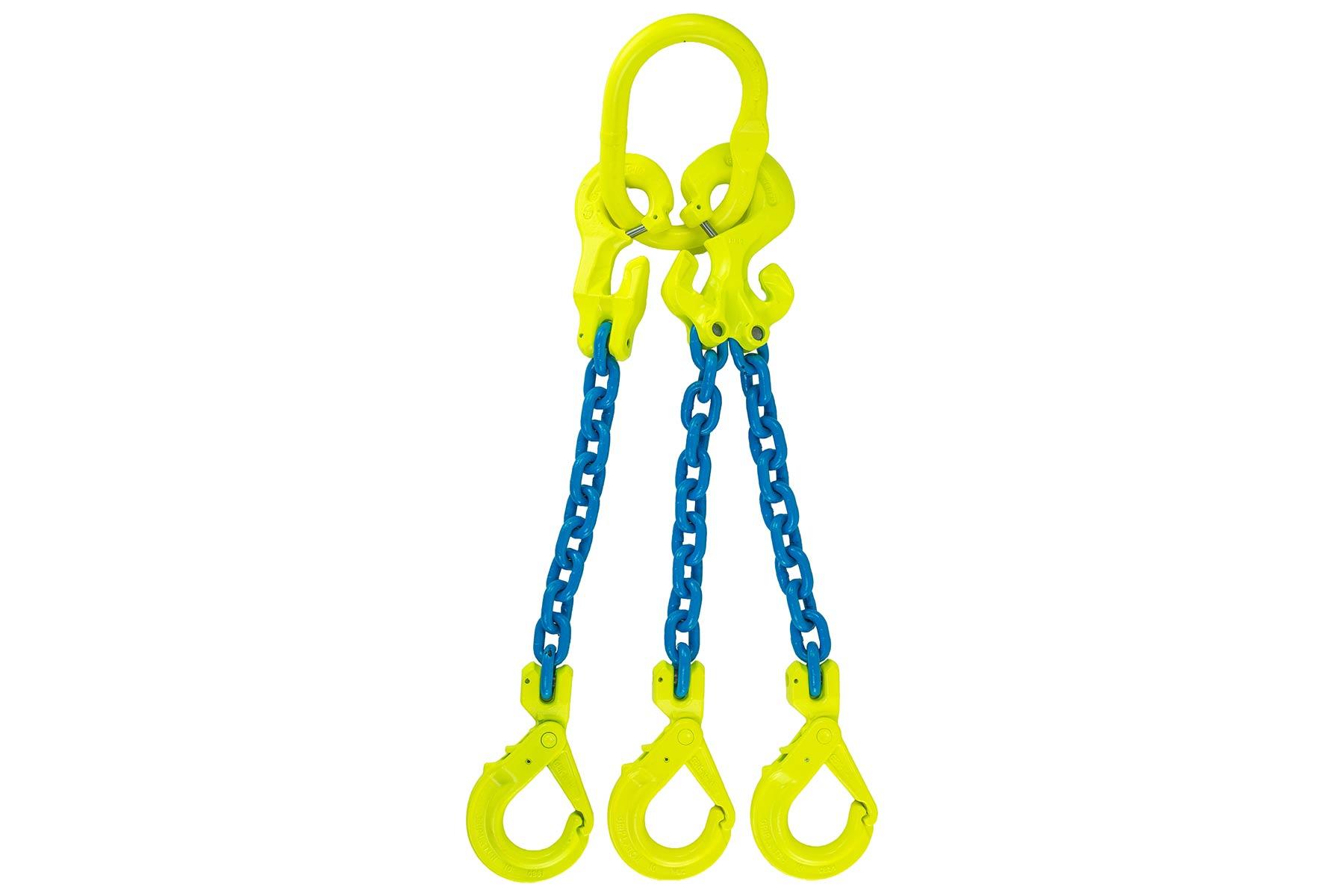

5/16" - 9,900 WLL	8', 12", 16	Safety Hook GBK
5/16" - 9,900 WLL	8', 12", 16	Sling Hook
5/16" - 9,900 WLL	8', 12", 16	Safety Hook BKG

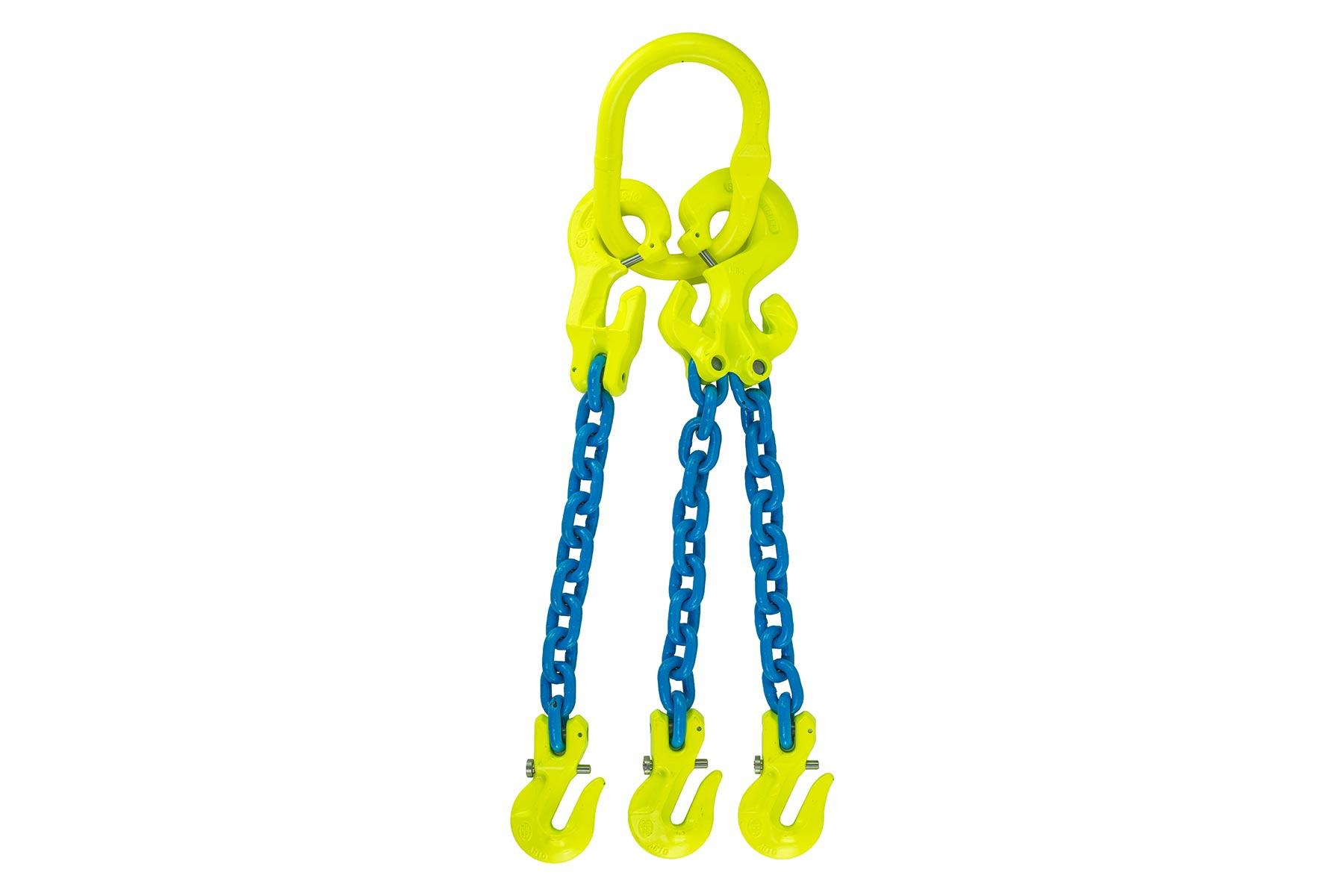

5/16" - 9,900 WLL	8', 12", 16	Grab Hook w/ Lock Pin
5/16" - 9,900 WLL	8', 12", 16	Cradle Grab Hook

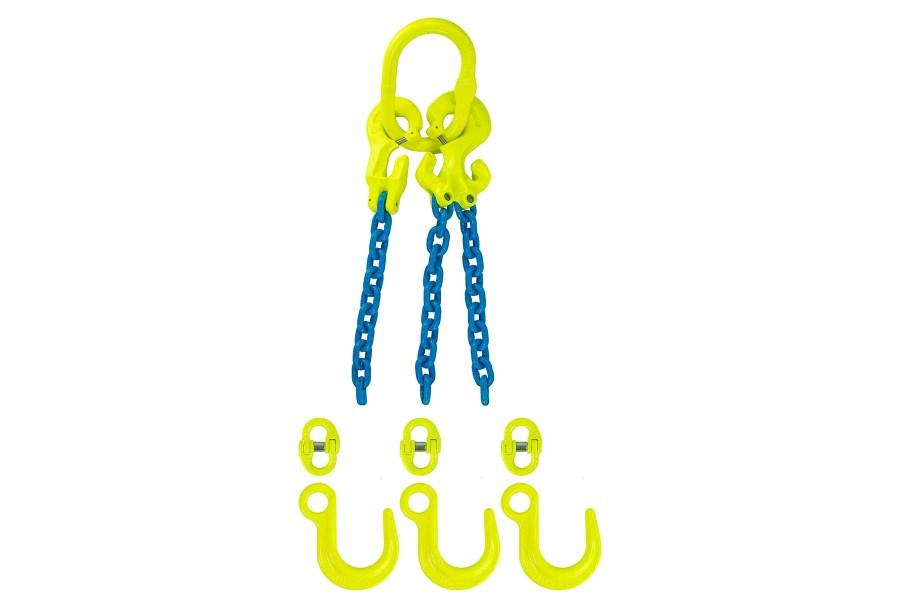

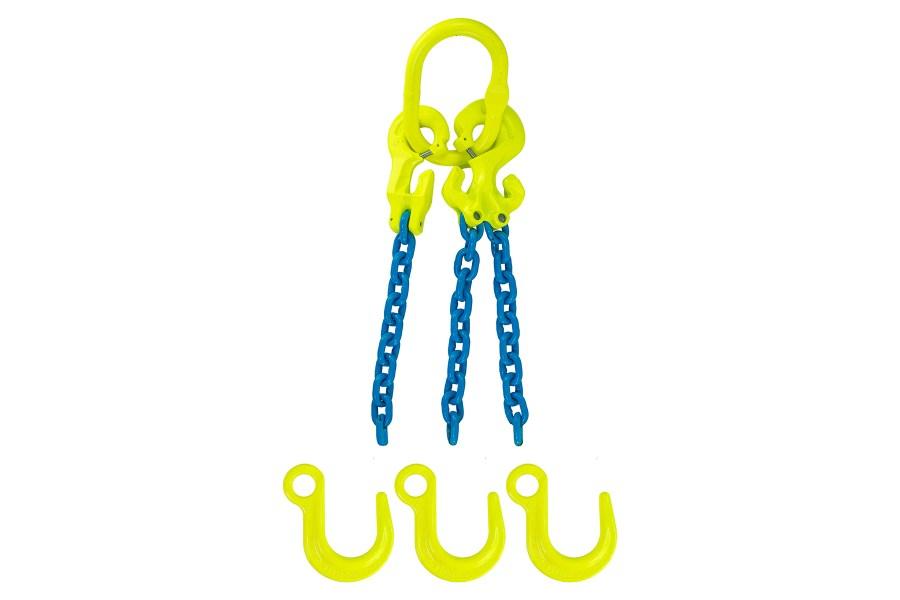

5/16" - 9,900 WLL	8', 12", 16	Foundry Hook
3/8" - 15,200 WLL	8', 12", 16	Safety Hook GBK
3/8" - 15,200 WLL	8', 12", 16	Sling Hook
3/8" - 15,200 WLL	8', 12", 16	Safety Hook BKG
3/8" - 15,200 WLL	8', 12", 16	Grab Hook w/ Lock Pin
3/8" - 15,200 WLL	8', 12", 16	Cradle Grab Hook

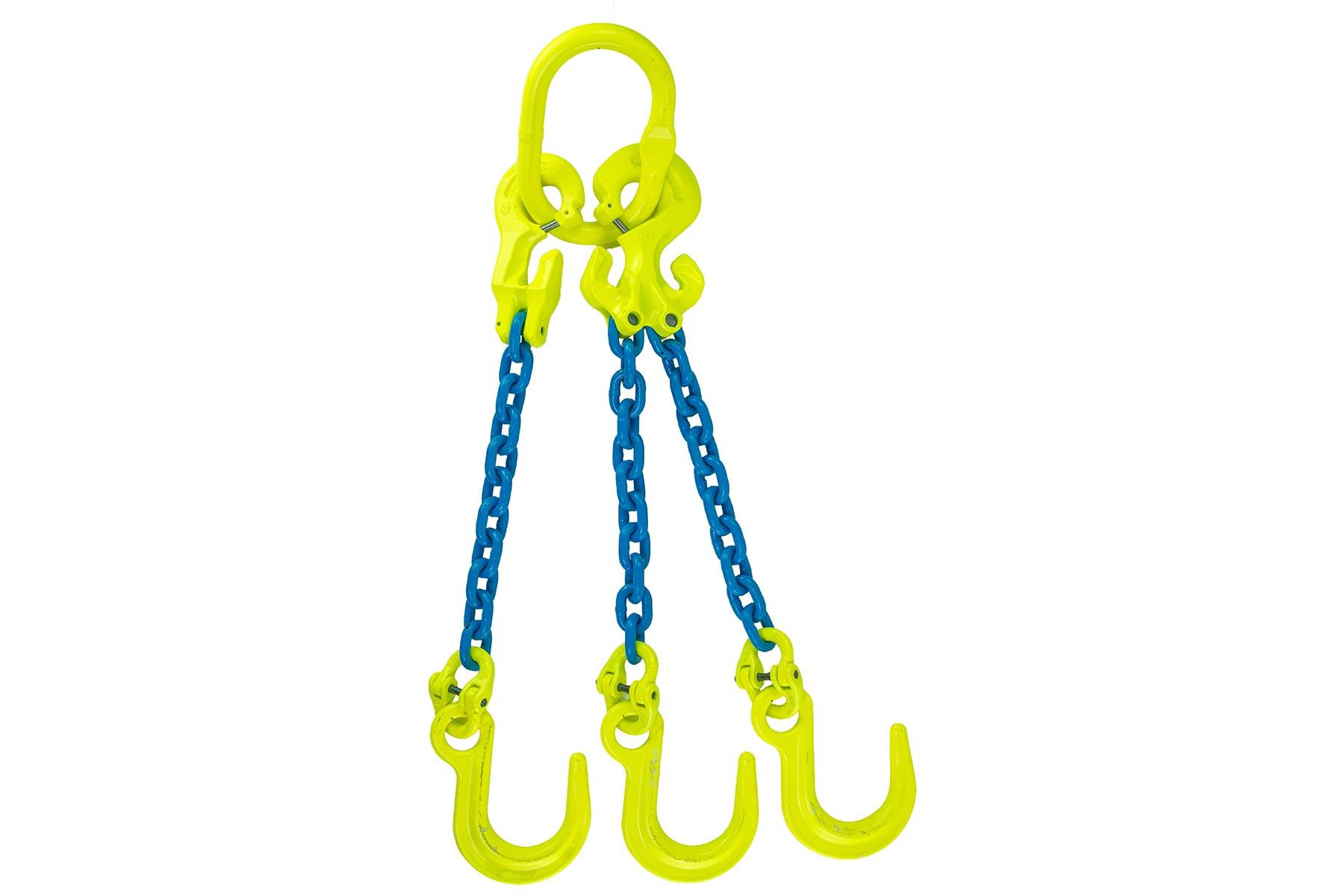

3/8" - 15,200 WLL	8', 12", 16	Foundry Hook
1/2" - 26,000 WLL	8', 12", 16	Safety Hook GBK

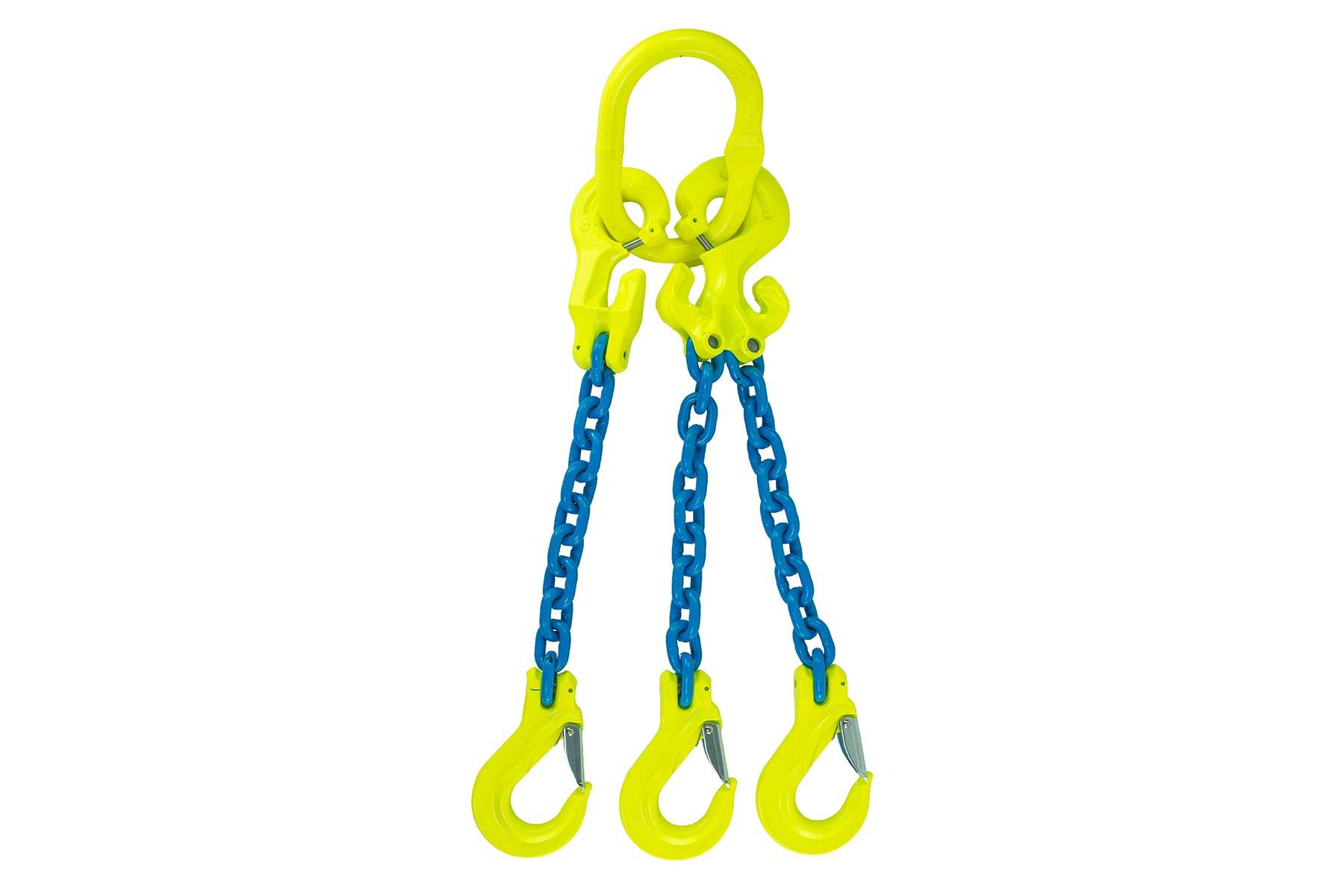

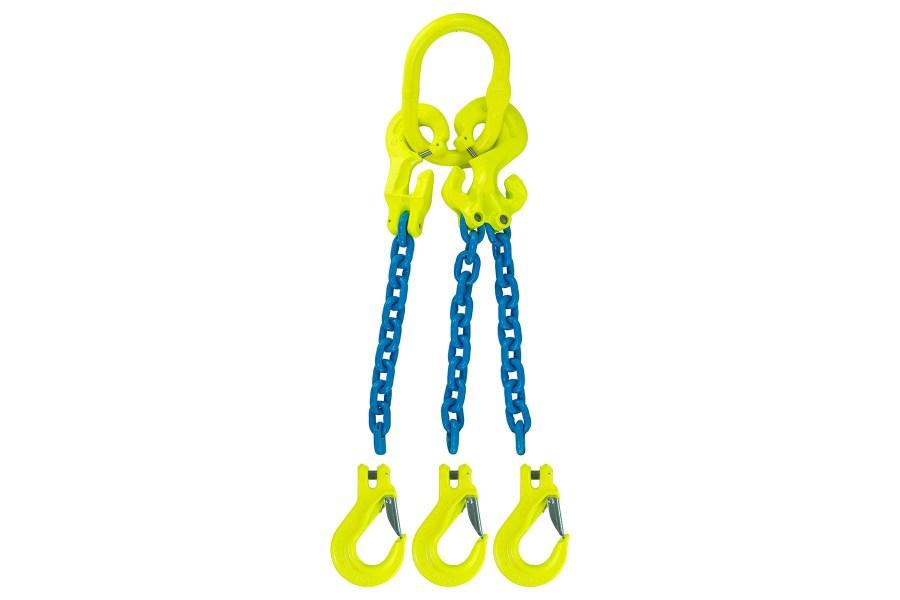

1/2" - 26,000 WLL	8', 12", 16	Sling Hook
1/2" - 26,000 WLL	8', 12", 16	Safety Hook BKG
1/2" - 26,000 WLL	8', 12", 16	Grab Hook w/ Lock Pin
1/2" - 26,000 WLL	8', 12", 16	Cradle Grab Hook
1/2" - 26,000 WLL	8', 12", 16	Foundry Hook
5/8" - 39,100 WLL	8', 12", 16	Safety Hook GBK
5/8" - 39,100 WLL	8', 12", 16	Sling Hook
5/8" - 39,100 WLL	8', 12", 16	Safety Hook BKG
5/8" - 39,100 WLL	8', 12", 16	Grab Hook w/ Lock Pin
5/8" - 39,100 WLL	8', 12", 16	Cradle Grab Hook
5/8" - 39,100 WLL	8', 12", 16	Foundry Hook
