Parker Chelsea 9GPM Hydraulic Pump Side Port

Leave a Review

Shop all Parker Chelsea products

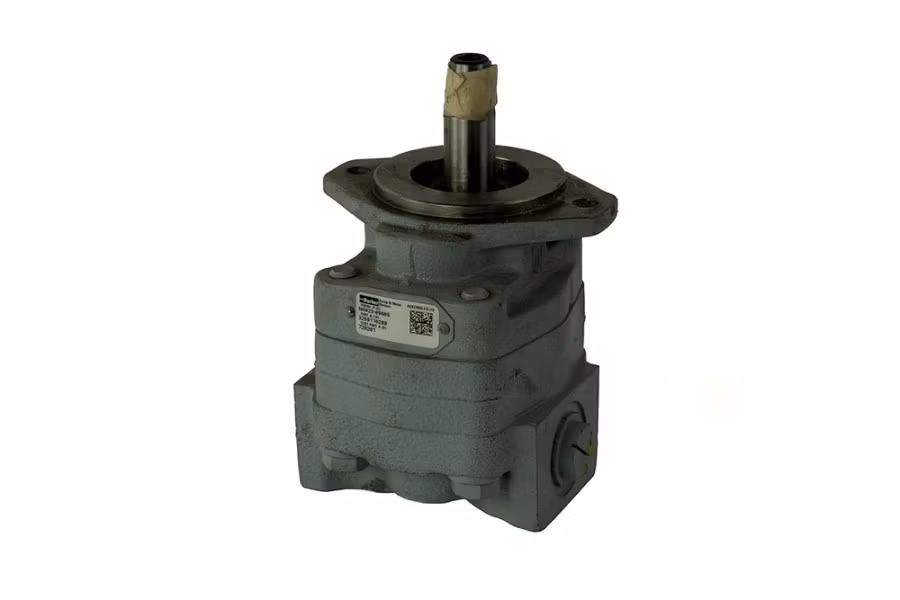

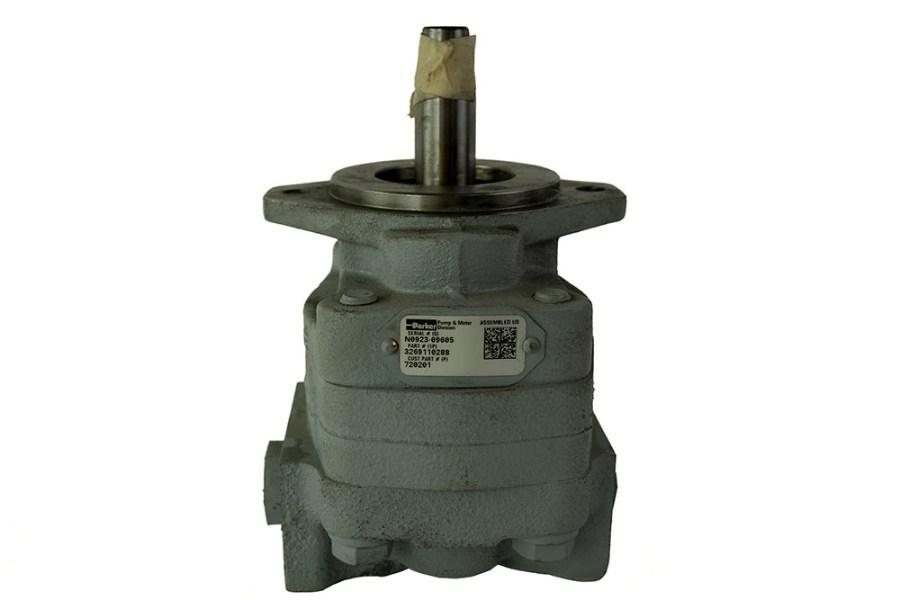

Picture of Parker Chelsea 9GPM Hydraulic Pump Side Port

SKU: 720201

Price: $599.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

DewEze Pump 9 gallon per minute, A mount Parker P315 326-9110-288 Side Port S16mb P12mb. This Parker hydraulic pump has a fixed displacement gear pump for use with a belt-driven electro-magnetic clutch, for Deweze clutch pump kit. This is the Pump Only

NOTE TO INSTALLER Clutches will need a short burnishing period to generate the rated torque. This is a process of cycling the clutch to slightly wear the friction surfaces. This allows full contact and maximum magnetic attraction required for rated torque (or more).

BURNISHING-TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED: After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 10 seconds on - 10 seconds off for a minimum of 50-100 cycles.

Mount: A
GPM: 9
Port: Side
Shaft: 7/8" Taper
Bolt: 5/16-24 x 1
Rotation: CW
Material: Iron
CS Thick: 1-1/4"
Model Number: 326-9110-288
CI: 1.09
Suction H: 1"
Suction F: 16mb
Pressure H: 3/4"
Pressure F: 12mb
PSI R1: 2700
PSI R2: 3500
Seal Kit: 720185
Shaft Key: 720161
Thrust Plate: 720229
Series: P315
