Parker Chelsea PTO Allison 1000 RH Side C/K30 Chassis 122%

Leave a Review

Shop all Parker Chelsea products

Picture of Parker Chelsea PTO Allison 1000 RH Side C/K30 Chassis 122%

SKU: 251GDHVP-B5XE

Price: $2,055.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

Chelsea Power Shift PTOs deliver clash-free shifts whether the vehicle is stationary or on the move. Constant mesh input gears and specially designed clutch packs make these PTOs ideal for applications that demand frequent PTO shifting. The 251 Chelsea PTO series is a hydraulically operated (electric-over- hydraulic) and is used with the 2002 and newer Allison "1000" series transmissions used in the Chevrolet/GMC C/K30 chassis. Compatible with Force America Products.

Output 122% of engine speed
Output SAE "A" 2 or 4 bolt 5/8"-9 tooth splined shaft - engine rotation
Right (Drivers) side of transmission installation (C/K30)
Includes stud kit
Chevrolet/GMC application includes 2002 to current C/K30 with 1000 series
Chevrolet/GMC application includes 2003 to current 45/55/6500 series chassis with 1000, 2000, 2200, or 2400 series Allison transmission

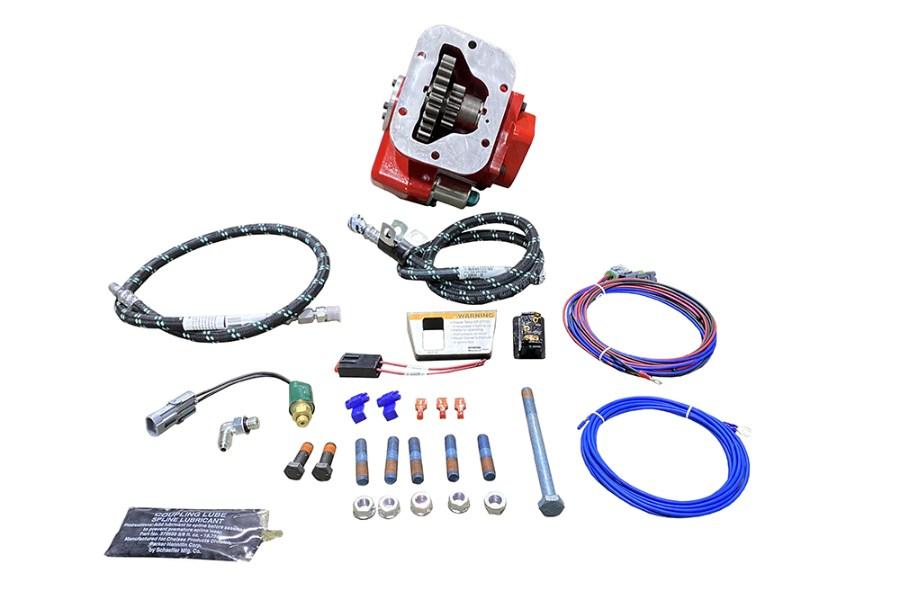

OPTIONAL Hydraulic Pump #P20C694JEAB10-95 shown in photo.
An OPTIONAL lube "T" fitting is REQUIRED in the oil return cooling line to supply low pressure oil to the idler shaft of the PTO. Part number 378840 "T" fitting is for the transmission model 1000 with SAE #3 bell housing. Part number 378970 for transmission models 1000/2000/2400 with the SAE #2 bell housing. The high pressure port requires a 7/16-20 O-ring boss fitting

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #
251GDHVP-B5XE	252GDHVP-B5XE
