Cylinders

This is a hydraulic boom lift cylinder for Century EB4 Wreckers. This cylinder will fit both the Century EB4 Express and the Century EB4 6500. To view specific models see Features below. To view part schematics click the Brochures tab.

This is the Swing L-Arm Cylinder, also known as the Claw Cylinder, for autoload wreckers by Miller Industries. This cylinder will fit Century Express 300 Series, Midnight Express Series, Challenger 4300 Express Series, Holmes 440SL, Vulcan Modular 807, 810 Intruder and 810 Power Tilt Wreckers. To view part schematics click the Brochures tab.

This is the Wheel Lift Extend Cylinder on Light Duty Wreckers by Miller Industries. This extend cylinder will fit on the following models. The Century 300 Express Series, The Century 300 Modular Express Series, The Challenger 4300 Express Series, The Holmes 440SL Series, The Vulcan Modular 807, The Vulcan 810 Intruder, The Vulcan 812 Intruder, and The Vulcan 810 Power Tilt. To view part schematics click the Brochure Tab.

Note: Special Handling Fees Apply

This Wheel Lift Extend Cylinder from Miller Industries is used on the Hydraulics Assembly of several Miller Car Carriers. These include Century, Challenger, Champion, Holmes, and Vulcan Carriers. See the features below for a full list of carriers and see the brochure tab for breakdowns.

Overall Dimensions: 72" x 3" x 3"

Hole Sizes: 1" and 3/4"

The other overall length of one side 5" x 3"

Other side 6" x 1 1/2"

• Standard color is black
• Uses Seal Kit 12-0306134
  Fits:
• Century 10 Series Steel & Aluminum Carriers
• Century 15 Series Steel & Aluminum Carriers
• Century LCG 12 Series Steel & Aluminum Carriers
• Century LCG 16 Series Steel & Aluminum Carriers
• Challenger Car Carriers
• Champion Steel & Aluminum Carriers
• Holmes 10 Series Steel & Aluminum Carriers
• Vulcan 10 Series Steel & Aluminum Carriers
• Vulcan 10 Series Extreme Angle Steel Carriers

Note: Special Handling Fees Apply

This is the Wheel Lift Fold Cylinder for the Wheel Lift on the Vulcan 812 Intruder and Vulcan 810 Power Tilt light duty wreckers by Miller Industries. This cylinder has a 4" bore with a 19.5" stroke. This cylinder attaches to the wrecker outer boom weldment and to the wheel lift outer boom weldment. This is the cylinder that folds the wheel lift up against the boom of the wrecker for travel. To see which specific wrecker models this cylinder will fit please see Features below. To view the part schematics click on the Brochure tab.

This is the base lift cylinder pin on the wheel lift of Century, Challenger and Holmes wreckers by Miller Industries. This pin replaces part number 12-0801012. This cylinder pin will fit the following wreckers: Century Formula I - Duplex Tilt 411 & 412, Formula I - Duplex Tilt Super Six & 500, Formula 6000 - 600 Series, Formula 6500 - 600 Series, Metro I - Duplex Tilt, Challenger 4700 Series, and the Holmes 440 Series. To view year ranges see Features below. To view part schematics click on the Brochures tab.

Note: Special Handling Fees Apply

This is the Lift Cylinder on the Wheel Lift of Century Wreckers with the Formula I and Formula 6500 Wheel Lifts. It is used on the Century Formula 6500 - 600 Series and the Modular 400 & 600 Series with these wheel lift options. To view part schematics click the Brochure tab.

• Uses holding valve part number 12-0304567

  Fits:
• Century Formula 6500, 600 Series REV A
• Century Modular 400 & 600 (01/2009 - Current)

Note: Special Handling Fees Apply

This Hydraulic Bed Extension Cylinder has a 3" bore, 2" rod, and it is 118" long with a 108" stroke. It is black in color and has a t-style end. This cylinder is designed to fit Challenger, Century, Champion, Holmes, and Vulcan Car Carriers. See the features below for a full list of carriers and see the brochure tab for breakdowns. Truck Freight Ship Direct Only (If there is no stock)

• 3" Bore
• 2" Rod
• 108" Stroke
• Uses Bed Attachment Pin12-0702434
• Uses Snap Rings12-0301642
• Uses Seal Kit12-0308385


  Fits:
• Challenger Car Carriers
• Century 10 Series Steel & Aluminum Carriers
• Century 15 Series Steel & Aluminum Carriers
• Champion Steel & Aluminum Carriers
• Holmes 10 Series Steel & Aluminum Carriers
• Vulcan 10 Series Steel & Aluminum Carriers
• Vulcan 10 Series Extreme Angle Steel Carriers

Note: Special Handling Fees Apply

This is the extend cylinder for the wheel lift on Miller Industries Light Duty Wreckers. This will fit the Century EB4 Express, Century Formula I 411 & 412, Century Formula I Super Six & 500 Series, Century Formula II, Century Formula 6000 - 600 Series, Century Metro I, Century Modular 211, Century Modular 400 & 600, Century 211 & 212. It will also fit the Challenger 4700 Series, Champion Model 101, Holmes 440 Series, Vulcan Modular 804, and Vulcan Modular 806. To view specific years of wrecker models see Features below. To view part schematics click on the Brochures tab.

Dimensions: 39"L x 5"W x 5"H

Length Eye to Eye: 37.5" L
Fits:

Century EB4 Express (03/1999 to Current)

Century Formula I, Duplex Tilt, 411 & 412 Wreckers

Century Formula I, Duplex Tilt, Super Six & 500 Series

Century Formula II

Century Formula 6000, 600 Series

Century Metro I, Duplex Tilt (D.T.) Wheel Lift System

Century Modular 211 (02/2010 to Current)

Century Modular 400 & 600 (01/2009 - Current)

Century 211 & 212 (11/1997 to Current)

Challenger 4700 Series (02/1995 - Current)

Champion Model 101 (09/1994 - Current)

Holmes 440 Series / DFT 400 (10/1994 - Current)

Vulcan Modular 804 (02/2010 - Current)

Vulcan Modular 806 (02/2010 - Current)

Note: Special Handling Fees Apply

This hydraulic wheel lift up/down cylinder is designed to withstand necessary forces and to be used at stated pressures. It meets industry and government specifications and will prove itself on the job when it really matters. This cylinder has a 4" bore. This cylinder will work with wheel lift applications on both car carriers and light duty wreckers by Miller Industries. This cylinder is designed to be used on 1989 - 1997 Formula I and WL-300 equipment without a valve. This lift cylinder fits Miller 10 Series Carriers from 2001 to Current and Standard and Right Approach 10 Series Carriers. This cylinder will also fit Challenger 4700 Series, Holmes 440 Series/ DFT 400, and Holmes HP 552 / DFT 650 Series light duty wreckers. Standard cylinder color is black. To view part schematics click on the Brochure tab.

• This Homac cylinder is designed to be used on 1989 - 1997 Formula 1 and WL-300 equipment without a valve
• Replaces 12-0301484
• Seal Kit # 12-03000017

  Fits:
• Miller 10 Series Carrier 02/2001 to Current
• Standard and Right Approach 10 Series Carriers
• Fits Challenger 4700 Series (02/1995 - Current)
• Fits Holmes 440 Series / DFT 400 (10/1994 - Current)
• Fits Holmes HP 552 / DFT 650 (09/1994 - Current)

This Lift Cylinder Pin from Miller Industries is used on the Tilt Frame Assembly of Century 10 Series Car Carriers made after 2005. See the brochure tab for a breakdown.

This is a replacement boom lift cylinder for the Century and Challenger heavy duty integrated wrecker by Miller Industries. This is the cylinder that raises and lowers the boom on your wrecker. This cylinder connects to the subframe and to the outer boom weldment of your wrecker. It is also designed for the right or left position on the wrecker. To view the models this cylinder fits, See Features below. To view the part schematics, see the Brochure tab.

This is a replacement Boom Lift Cylinder for the Century 3212 and Vulcan V30 heavy duty integrated wreckers by Miller Industries. This cylinder is designed to fit both the right or left positions. To see what models this cylinder will fit, see Features below. To view part schematics, see the Brochure tab.

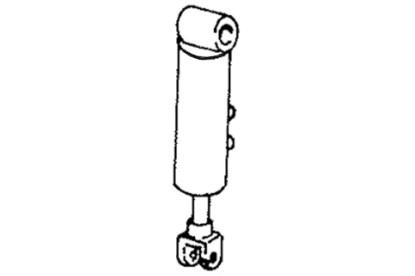

This Boom Fold Cylinder from Miller Industries is used on the Underlift Assembly of Century and Challenger Wreckers. Seal Kit is

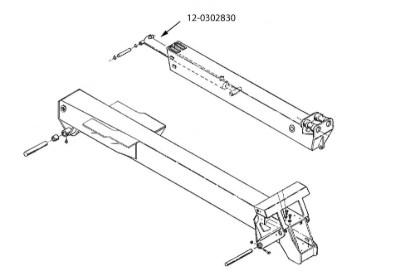

This is a replacement boom extension cylinder for the Century 1040B, 1060S, 1130/1140, 5130/5230, 7035, Challenger CH-35 and CH-45 heavy duty wreckers by Miller Industries. This cylinder connects to the outer and inner boom weldments to extend the boom out. To view the models this cylinder fits, see Features below. To view the part schematics, see the Brochure tab.

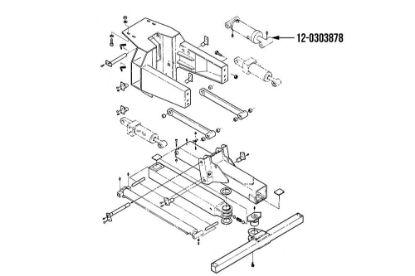

This is the Boom Lift Cylinder on Century Modular 400 & 600 Series light duty wreckers. This includes the 411, 412, 611 and 612 wreckers by Miller Industries. This lift cylinder has a 4" bore and a 17.75" stroke. This cylinder connects to the subframe and the boom of the wrecker to raise and lower it. It is sometimes referred to as the Boom Elevation Cylinder. To view the part schematic click on the Brochure tab.

This is a replacement boom lift cylinder for the main recovery wrecker boom weldment on Century 4024 heavy duty integrated wrecker by Miller Industries. This cylinder is designed to fit both the right and left positions. To see what models this cylinder will fit, see Features below. To view part schematics, see the Brochure tab.

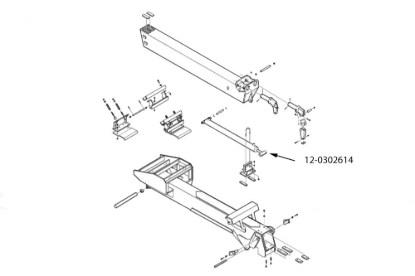

This is a replacement boom extend cylinder for the Century 4024 heavy duty integrated wrecker by Miller Industries. This is the cylinder that connects the outer and inner boom weldments of the main recovery boom together. This is the cylinder that causes the inner boom weldment to extend out behind the wrecker. To see what models this cylinder fits, see Features below. To view the part schematics, see the Brochure tab.

This is a replacement boom extension cylinder for the Century 1060, 1075, 9055, and Challenger CH-45 heavy duty wreckers by Miller Industries. This cylinder connects to the outer and inner boom weldments to extend the boom in or out on your wrecker. To view the models this cylinder fits, see Features below. To view the part schematics, see the Brochure tab.

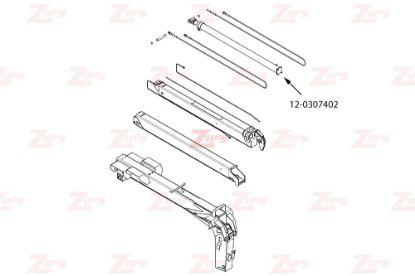

This is a replacement boom extend cylinder for the Century 1130/1140, 9055 and the Vulcan V-100 heavy duty wreckers by Miller Industries. This cylinder connects to the outer and inner boom weldments to extend the boom of your wrecker. To view the models this cylinder fits, see Features below. To view the part schematics, see the Brochure tab.

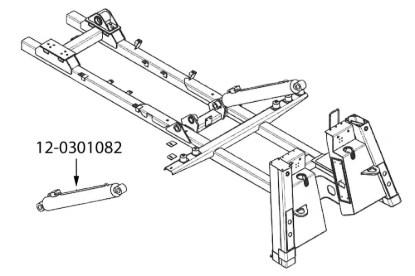

This is a replacement boom extend cylinder for a Century 5130 and Vulcan V-50 heavy duty integrated wrecker by Miller Industries. This is the cylinder that raises the boom on your wrecker. This cylinder attaches to the subframe and to the outer boom weldment of the wrecker. To view the models this cylinder fits, see Features below. To view the part schematic, see the Brochure tab.

This Hydraulic Bed Tilt Cylinder was designed to withstand the necessary forces and be used at stated pressures. It meets industry and government specifications, so you know it will prove itself when the job really matters. It is black in color and has a t-style end. This cylinder will fit Century 10, 15, and 20 Series Car Carriers. See the features below for a full list of carriers and see the brochure tab for breakdowns.

This is a replacement boom lift cylinder for the Century 1040B, 1060S, 1130/1140, 9055, Challenger CH-45 heavy duty wreckers by Miller Industries. This cylinder connects to the subframe weldment and to the outer boom weldment to raise the boom of the wrecker up and down. To view the models this cylinder fits, see Features below. To view the part schematics, see the Brochure tab.

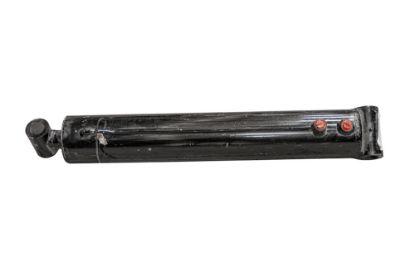

This is a Miller bed tilt cylinder, for a 30 series.
