Challenger CH-16 07/1996

Boom Assembly

Other Schematics for this model:

Show More
Add All Quantities to Cart
ID Zip's Part Number Part Name Price Each Recommended Quantity Quantity to Order
1 Not Serviced by Manufacturer Not Serviced by Manufacturer
View details
 1 Part Number:  PLEASE CALL Not Serviced by Manufacturer Price: $0.00 Recommended Quantity:   1
2 Not Serviced by Manufacturer Not Serviced by Manufacturer
View details
 2 Part Number:  PLEASE CALL Not Serviced by Manufacturer Price: $0.00 Recommended Quantity:   1
3 Miller Boom Extend Cylinder Century 4024 Miller Boom Extend Cylinder Century 4024
View details
 3 Part Number:  12-0302614 Miller Boom Extend Cylinder Century 4024 Price: $2713.99 Recommended Quantity:
-
+
Add Item to Cart
4 Miller Boom Pivot Pin, Century / Challenger Miller Boom Pivot Pin, Century / Challenger
View details
 4 Part Number:  12-0707342 Miller Boom Pivot Pin, Century / Challenger Price: $157.99 Recommended Quantity:   1
-
+
Add Item to Cart
5 Miller Boom Extend Cylinder Rear Pin Century 4024 Miller Boom Extend Cylinder Rear Pin Century 4024
View details
 5 Part Number:  12-0707344 Miller Boom Extend Cylinder Rear Pin Century 4024 Price: $44.99 Recommended Quantity:   1
-
+
Add Item to Cart
6 Miller Snap Ring-Internal 1-1/2 Miller Snap Ring-Internal 1-1/2
View details
 6 Part Number:  12-0301959 Miller Snap Ring-Internal 1-1/2 Price: $5.89 Recommended Quantity:   4
-
+
Add Item to Cart
7 Miller Boom End Swivel Weldment Century HD Wreckers Miller Boom End Swivel Weldment Century HD Wreckers
View details
 7 Part Number:  12-0804448 Miller Boom End Swivel Weldment Century HD Wreckers Price: $950.99 Recommended Quantity:   1
-
+
Add Item to Cart
8 Miller Boom End Swivel Weldment Century HD Wreckers Miller Boom End Swivel Weldment Century HD Wreckers
View details
 8 Part Number:  12-0804448 Miller Boom End Swivel Weldment Century HD Wreckers Price: $950.99 Recommended Quantity:   1
-
+
Add Item to Cart
9 Miller Boom End Sheave Shaft, Heavy Duty Wreckers Miller Boom End Sheave Shaft, Heavy Duty Wreckers
View details
 9 Part Number:  12-0700888 Miller Boom End Sheave Shaft, Heavy Duty Wreckers Price: $94.99 Recommended Quantity:   2
-
+
Add Item to Cart
10 Fastenal 1/4" - 28 Grease Fitting w/ Ball Check Fastenal 1/4" - 28 Grease Fitting w/ Ball Check
View details
 10 Part Number:  80013 Fastenal 1/4" - 28 Grease Fitting w/ Ball Check Price: $0.29 Recommended Quantity:   4
-
+
Add Item to Cart
10 Miller Grease Fitting (See 80013) Miller Grease Fitting (See 80013)
View details
 10 Part Number:  12-0300113 Miller Grease Fitting (See 80013) Price: $5.89 Recommended Quantity:   4
-
+
Add Item to Cart
11 Bolt, 3/8" X 3" Bolt, 3/8" X 3"
View details
 11 Part Number:  12-0400133 Bolt, 3/8" X 3" Price: $5.49 Recommended Quantity:   2
-
+
Add Item to Cart
12 3/8-16 Nylok Hex Nut Zinc 3/8-16 Nylok Hex Nut Zinc
View details
 12 Part Number:  12-0400392 3/8-16 Nylok Hex Nut Zinc Price: $5.49 Recommended Quantity:   16
-
+
Add Item to Cart
13 Miller Sheave, 8" x 1-1/2" Miller Sheave, 8" x 1-1/2"
View details
 13 Part Number:  12-0300626 Miller Sheave, 8" x 1-1/2" Price: $176.99 Recommended Quantity:   2
-
+
Add Item to Cart
14 Guide-Cable Guide-Cable
View details
 14 Part Number:  12-0800286 Guide-Cable Price: $248.99 Recommended Quantity:   2
-
+
Add Item to Cart
15 Miller Screw 3/8 x 2 1/2 Winch Clutch Control Miller Screw 3/8 x 2 1/2 Winch Clutch Control
View details
 15 Part Number:  12-0400150 Miller Screw 3/8 x 2 1/2 Winch Clutch Control Price: $5.49 Recommended Quantity:   4
-
+
Add Item to Cart
16 Miller Bottom Cable Guide Miller Bottom Cable Guide
View details
 16 Part Number:  12-0700801 Miller Bottom Cable Guide Price: $21.89 Recommended Quantity:   4
-
+
Add Item to Cart
17 Shaft Tilt Shaft Tilt
View details
 17 Part Number:  12-0707300 Shaft Tilt Price: $1777.99 Recommended Quantity:   1
-
+
Add Item to Cart
18 Collar-Tilt Shaft Collar-Tilt Shaft
View details
 18 Part Number:  12-0707340 Collar-Tilt Shaft Price: $379.99 Recommended Quantity:   2
-
+
Add Item to Cart
19 Tilt Shaft Retainer Tilt Shaft Retainer
View details
 19 Part Number:  12-0707124 Tilt Shaft Retainer Price: $342.99 Recommended Quantity:   2
-
+
Add Item to Cart
20 Century Slide Pad Inner Boom 9" x 2.5" Wreckers Century Slide Pad Inner Boom 9" x 2.5" Wreckers
View details
 20 Part Number:  12-0302628 Century Slide Pad Inner Boom 9" x 2.5" Wreckers Price: $62.99 Recommended Quantity:   2
-
+
Add Item to Cart
21 Miller Top Spacer, Outer Boom, 6" x 2", Century Wreckers Miller Top Spacer, Outer Boom, 6" x 2", Century Wreckers
View details
 21 Part Number:  12-0700778 Miller Top Spacer, Outer Boom, 6" x 2", Century Wreckers Price: $54.99 Recommended Quantity:   2
-
+
Add Item to Cart
22 Miller 5/8 Flatwasher Zp Miller 5/8 Flatwasher Zp
View details
 22 Part Number:  12-0400506 Miller 5/8 Flatwasher Zp Price: $5.49 Recommended Quantity:   4
-
+
Add Item to Cart
23 5/8" Helical Lockwasher Zp 5/8" Helical Lockwasher Zp
View details
 23 Part Number:  12-0400508 5/8" Helical Lockwasher Zp Price: $5.49 Recommended Quantity:   4
-
+
Add Item to Cart
24 Bushing, 2.25Odx2Idx1.5 Sprg Bushing, 2.25Odx2Idx1.5 Sprg
View details
 24 Part Number:  12-0302619 Bushing, 2.25Odx2Idx1.5 Sprg Price: $42.99 Recommended Quantity:   4
-
+
Add Item to Cart
25 Miller Bushing - Stinger Miller Bushing - Stinger
View details
 25 Part Number:  12-0302538 Miller Bushing - Stinger Price: $163.99 Recommended Quantity:   2
-
+
Add Item to Cart
26 5/8-11X1Hhcs Gr 8 Zp 5/8-11X1Hhcs Gr 8 Zp
View details
 26 Part Number:  12-0400248 5/8-11X1Hhcs Gr 8 Zp Price: $1.49 Recommended Quantity:   4
-
+
Add Item to Cart
27 Miller Screw, Hex Head Cap, 3/4" x 3/8"-16 Miller Screw, Hex Head Cap, 3/4" x 3/8"-16
View details
 27 Part Number:  12-0400121 Miller Screw, Hex Head Cap, 3/4" x 3/8"-16 Price: $0.19 Recommended Quantity:   4
-
+
Add Item to Cart
28 Washer, Split Lock, 3/8" Washer, Split Lock, 3/8"
View details
 28 Part Number:  12-0400482 Washer, Split Lock, 3/8" Price: $5.49 Recommended Quantity:   8
-
+
Add Item to Cart
29 5/16-18X3/4 Soc. Hd Set 5/16-18X3/4 Soc. Hd Set
View details
 29 Part Number:  12-0400229 5/16-18X3/4 Soc. Hd Set Price: $1.99 Recommended Quantity:   4
-
+
Add Item to Cart
30 Miller Oblong Master Link Miller Oblong Master Link
View details
 30 Part Number:  12-0301691 Miller Oblong Master Link Price: $34.99 Recommended Quantity:   2
-
+
Add Item to Cart
31 Wrecker Winch Cable Tie Spring Up To 2004 Wrecker Winch Cable Tie Spring Up To 2004
View details
 31 Part Number:  12-0302273 Wrecker Winch Cable Tie Spring Up To 2004 Price: $60.99 Recommended Quantity:   2
-
+
Add Item to Cart
32 1/2-13X3 Hhcs Gr5 Zp 1/2-13X3 Hhcs Gr5 Zp
View details
 32 Part Number:  12-0400205 1/2-13X3 Hhcs Gr5 Zp Price: $5.49 Recommended Quantity:   2
-
+
Add Item to Cart
33 Miller 1/2-13 Nylok Hex Nut Zp Miller 1/2-13 Nylok Hex Nut Zp
View details
 33 Part Number:  12-0400408 Miller 1/2-13 Nylok Hex Nut Zp Price: $2.69 Recommended Quantity:   6
-
+
Add Item to Cart
34 Miller Pin, Roll See 14782 Miller Pin, Roll See 14782
View details
 34 Part Number:  12-0400554 Miller Pin, Roll See 14782 Price: $0.69 Recommended Quantity:   6
-
+
Add Item to Cart
35 Spring Compression Mh45 Spring Compression Mh45
View details
 35 Part Number:  12-0302378 Spring Compression Mh45 Price: $66.99 Recommended Quantity:   4
-
+
Add Item to Cart
36 Miller Hex Head Cap Screw, Grade 5, Zinc Plated, 3/8-16 x 1.5 Miller Hex Head Cap Screw, Grade 5, Zinc Plated, 3/8-16 x 1.5
View details
 36 Part Number:  12-0400132 Miller Hex Head Cap Screw, Grade 5, Zinc Plated, 3/8-16 x 1.5 Price: $5.49 Recommended Quantity:   8
-
+
Add Item to Cart
37 1/2 Flatwasher Zp 1/2 Flatwasher Zp
View details
 37 Part Number:  12-0400492 1/2 Flatwasher Zp Price: $5.49 Recommended Quantity:   8
-
+
Add Item to Cart
38 Miller Cotter Pin, 1/8 X 3/4 Miller Cotter Pin, 1/8 X 3/4
View details
 38 Part Number:  12-0400543 Miller Cotter Pin, 1/8 X 3/4 Price: $0.09 Recommended Quantity:   4
-
+
Add Item to Cart
39 Not Serviced by Manufacturer Not Serviced by Manufacturer
View details
 39 Part Number:  PLEASE CALL Not Serviced by Manufacturer Price: $0.00 Recommended Quantity:   2
40 Not Serviced by Manufacturer Not Serviced by Manufacturer
View details
 40 Part Number:  PLEASE CALL Not Serviced by Manufacturer Price: $0.00 Recommended Quantity:   2
41 Not Serviced by Manufacturer Not Serviced by Manufacturer
View details
 41 Part Number:  PLEASE CALL Not Serviced by Manufacturer Price: $0.00 Recommended Quantity:   2
42 Miller Pin-Spring Miller Pin-Spring
View details
 42 Part Number:  12-0802218 Miller Pin-Spring Price: $81.99 Recommended Quantity:   4
-
+
Add Item to Cart
43 Not Serviced by Manufacturer Not Serviced by Manufacturer
View details
 43 Part Number:  PLEASE CALL Not Serviced by Manufacturer Price: $0.00 Recommended Quantity:   2

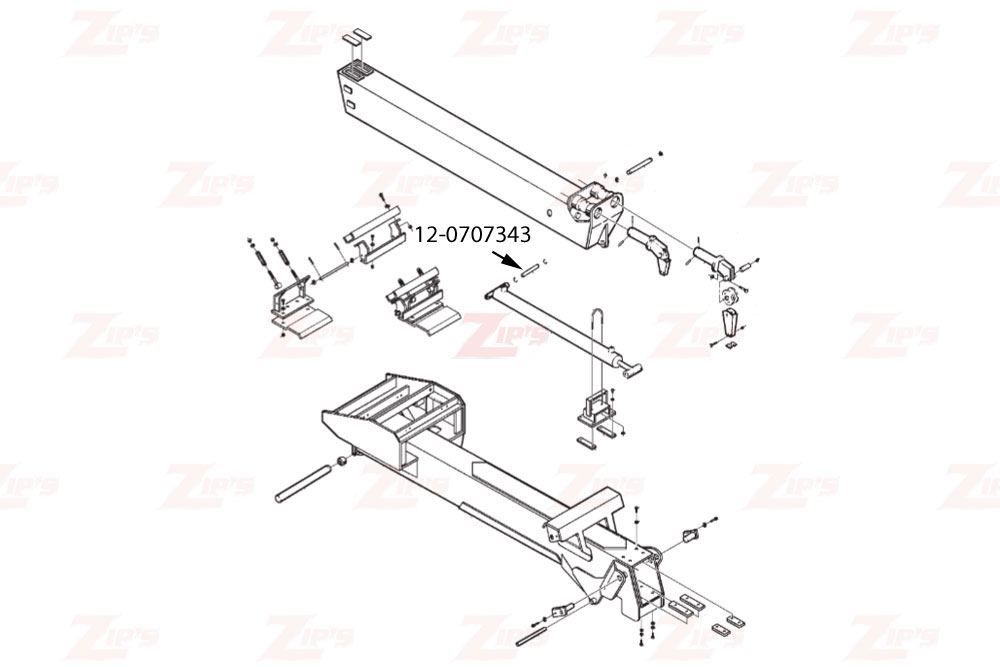

44 Miller Boom Extend Cylinder Front Pin Century 4024 Miller Boom Extend Cylinder Front Pin Century 4024
View details
 44 Part Number:  12-0707343 Miller Boom Extend Cylinder Front Pin Century 4024 Price: $18.99 Recommended Quantity:   1
-
+
Add Item to Cart
45 Century Slide Pad Boom Bottom 15" x 3" Wreckers Century Slide Pad Boom Bottom 15" x 3" Wreckers
View details
 45 Part Number:  12-0301923 Century Slide Pad Boom Bottom 15" x 3" Wreckers Price: $69.99 Recommended Quantity:   2
-
+
Add Item to Cart
46 3/8-16X1.25 Hhcs Gr5 Zp 3/8-16X1.25 Hhcs Gr5 Zp
View details
 46 Part Number:  12-0400122 3/8-16X1.25 Hhcs Gr5 Zp Price: $5.49 Recommended Quantity:   4
-
+
Add Item to Cart
47 Support-Cylinder Support-Cylinder
View details
 47 Part Number:  12-0802246 Support-Cylinder Price: $98.99 Recommended Quantity:   1
-
+
Add Item to Cart
48 Skid Fairlead Ass'Y Skid Fairlead Ass'Y
View details
 48 Part Number:  12-0703442 Skid Fairlead Ass'Y Price: $30.99 Recommended Quantity:   2
-
+
Add Item to Cart
49 3/8-18X3 Pipe U Bolt 3/8-18X3 Pipe U Bolt
View details
 49 Part Number:  12-0400581 3/8-18X3 Pipe U Bolt Price: $10.89 Recommended Quantity:   1
-
+
Add Item to Cart
50 1/4 Flatwasher Zp 1/4 Flatwasher Zp
View details
 50 Part Number:  12-0400451 1/4 Flatwasher Zp Price: $5.49 Recommended Quantity:   4
-
+
Add Item to Cart
51 Not Serviced by Manufacturer Not Serviced by Manufacturer
View details
 51 Part Number:  PLEASE CALL Not Serviced by Manufacturer Price: $0.00 Recommended Quantity:   4
Add All Quantities to Cart
