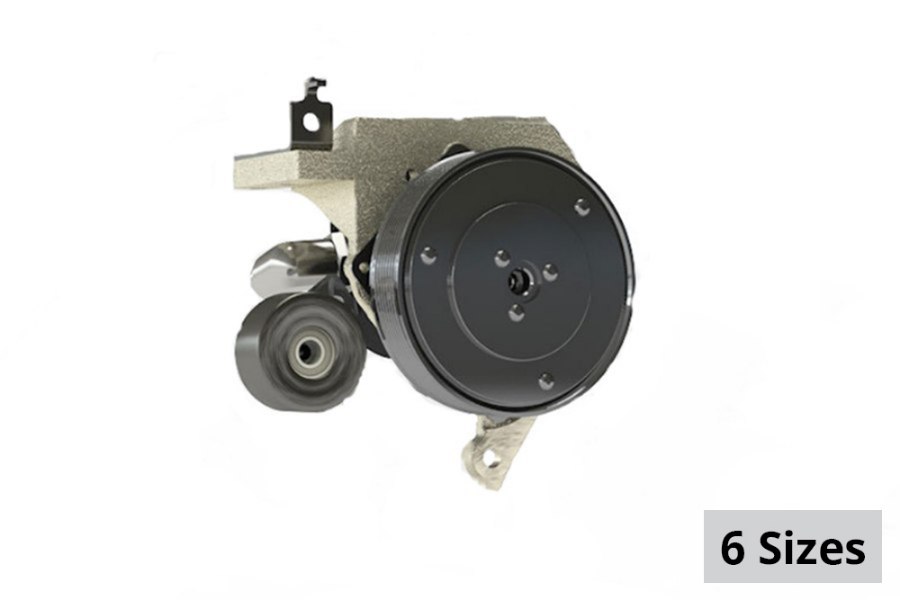

DewEze A Clutch Pump Mt Kit Chevy/GMC 2020-2024 Gas Side Port Complete Kit

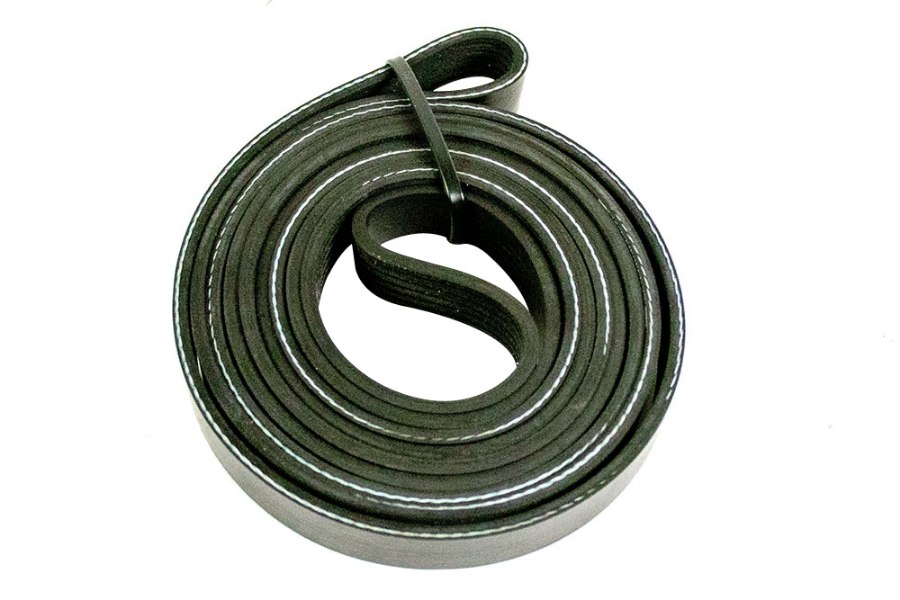

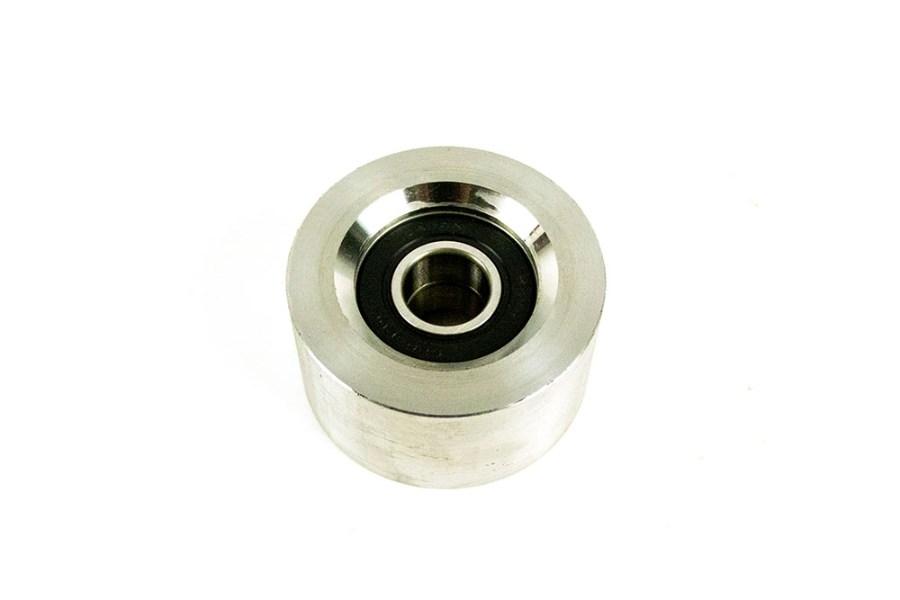

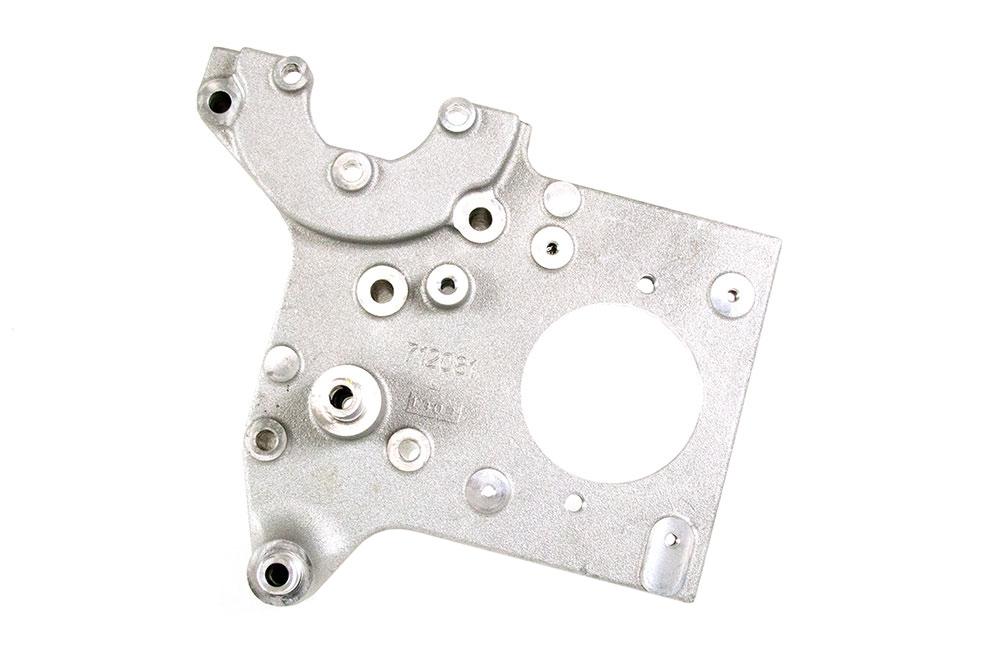

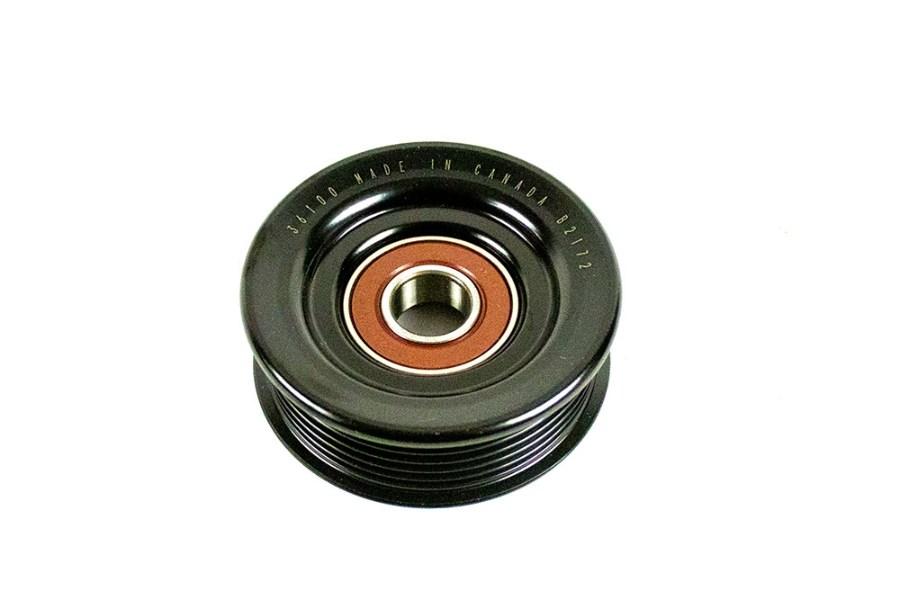

DewEze Clutch Pump Kit for Chevy/GMC 2020-2024 3500 Series Chassis with 6.6L gas engine. (Basic Pump Kits Include: pump, idler pulley, clutch, serpentine belt, crankshaft pulley, pump mtg. bracket).

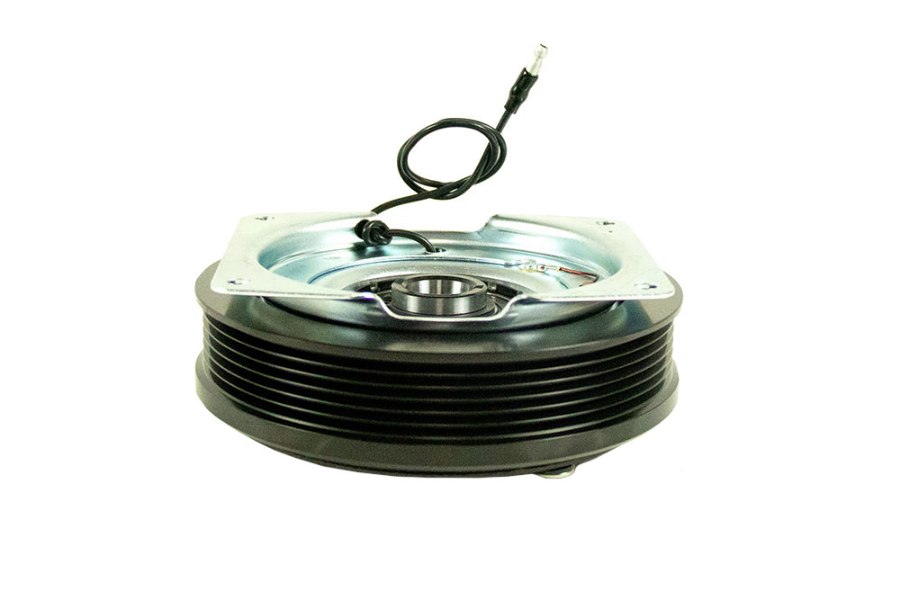

NOTE TO INSTALLER Clutches will need a short burnishing period to generate the rated torque. This is a process of cycling the clutch to slightly wear the friction surfaces. This allows full contact and maximum magnetic attraction required for rated torque (or more).

BURNISHING-TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED: After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 10 seconds on - 10 seconds off for a minimum of 50-100 cycles.

• Proposition 65 Warning
• For 2020-2024 Chevrolet or GMC 3500 series chassis
• 6.6L gas engine capatability

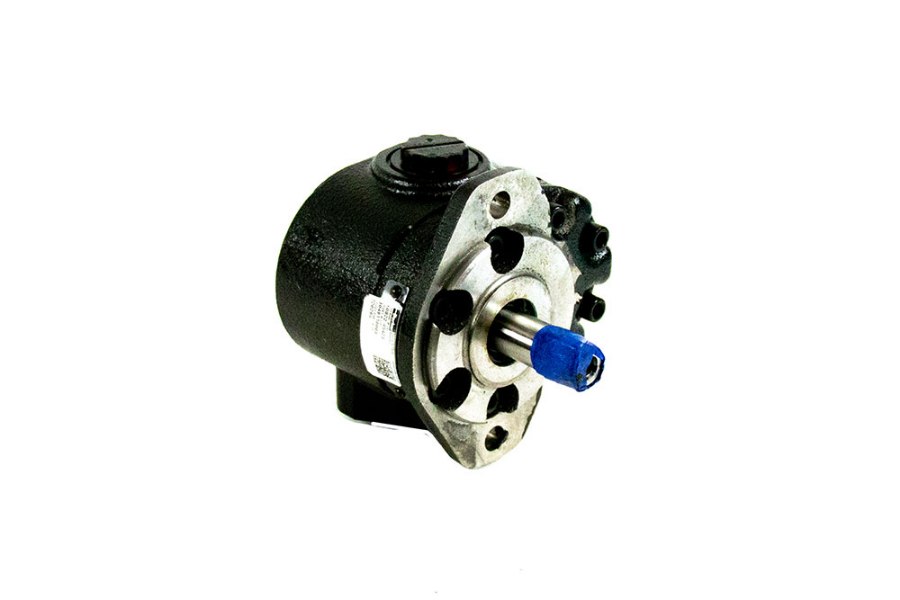

• 700597-7: Side port pump (part number 720300). With a Ogura 6 groove 6" diameter clutch (part number 742016)
• 700597-9: Side Port Pump (part number 720301). With a Ogura 6 groove 6" diameter clutch (part number 742016)
• 700597-12: Side port pump (part number 720294). With a Warner 6 groove 6" diameter heavy duty clutch (part number 740114)
• 700597-17: Side Port Pump (part number 720295). With a Warner 6 groove 6" diameter heavy duty clutch (part number 740114)
• 700597-9HP: Sauer-Danfoss high pressure 10GPM pump (We refer to it as 9GPM) (part number 720297). With a Warner 6 groove 6" diameter heavy duty clutch (part number 740114)
• 700597-12HP: Sauer-Danfoss high pressure 12GPM pump (part number 720298). With a Warner 6 groove 6" diameter heavy duty clutch (part number 740114)
• Image may not represent actual system, please look at brochure for more accurate details
