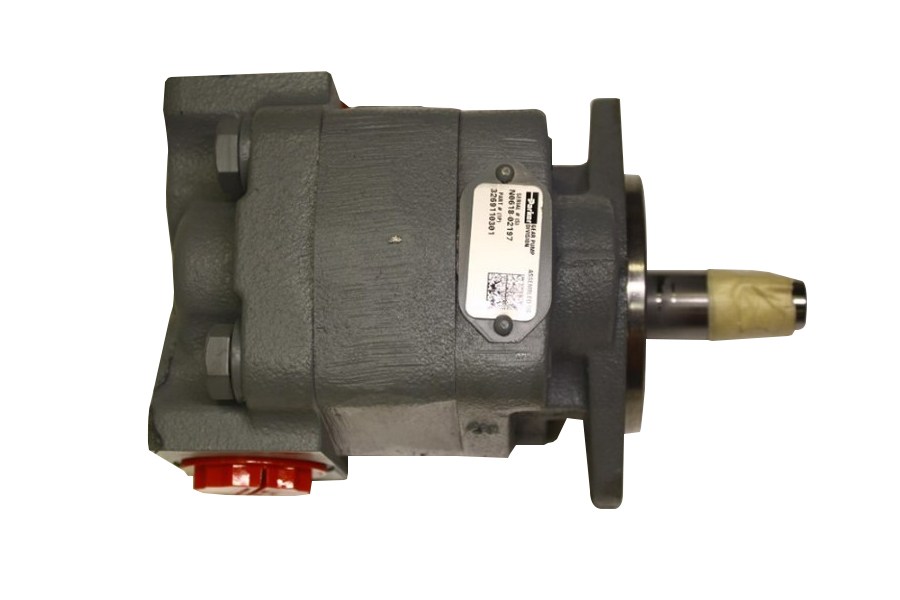

DewEze A Parker Clutch Pump 12 GPM Side Port

DewEze Pump 12GMP Side Port. A Mount Parker P315 326-9110-301 Side Port S20mb P16mb.

TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED: After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 10 seconds on - 10 seconds off for a minimum of 50-100 cycles.

• Mount: A
• GPM: 12
• Port: Side
• Shaft: 7/8" Taper
• Bolt: 5/16-24 x 1
• Rotation: CW
• Material: Iron
• CS Thick: 1-1/2"
• Model Number: 326-9110-301
• CI: 1.04
• Suction H: 1-1/4"
• Suction F: 20mb
• Pressure H: 1"
• Pressure F: 16mb
• PSI R1: 2000
• PSI R2: 3000
• Seal Kit: 720185
• Shaft Key: 720161
• Thrust Plate: 720229
• Series: P315


Where it can be used 700096, 700330, 700350, 700351, 700360, 700363, 700394, 700443, >700486, 700512, 700564
