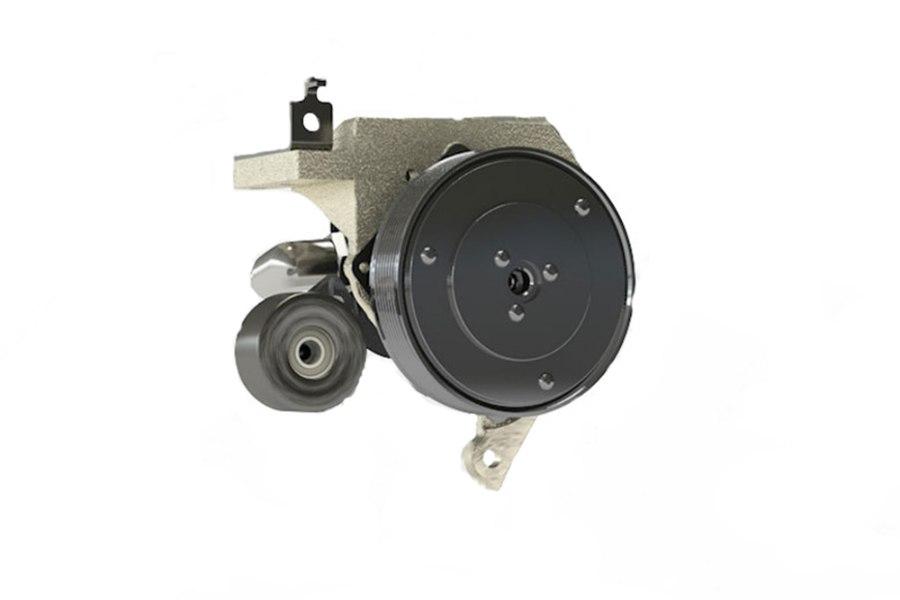

DewEze A Sawyer Dan Foss Clutch Pump 12HP GPM Side Port. (Basic pump kits include: pump, idler pulley, clutch, serpentine belt, crankshaft pulley, pump mtg. Bracket's as needed.
NOTE TO INSTALLER Clutches will need a short burnishing period to generate the rated torque. This is a process of cycling the clutch to slightly wear the friction surfaces. This allows full contact and maximum magnetic attraction required for rated torque (or more).
BURNISHING-TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED: After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 10 seconds on - 10 seconds off for a minimum of 50-100 cycles.
- Model: SD
- Port Side: Side
- Mount: A
- Gallons Per Minute: 12
- Cubic Inch Displacement: 1.53
- Appearance: Black Cast
- Reliable under cold weather conditions
- Parker Number: 83012716
Where it can be used: 700520, 700521, 700522, 700523, 700526, 700527, 700542, 700543
