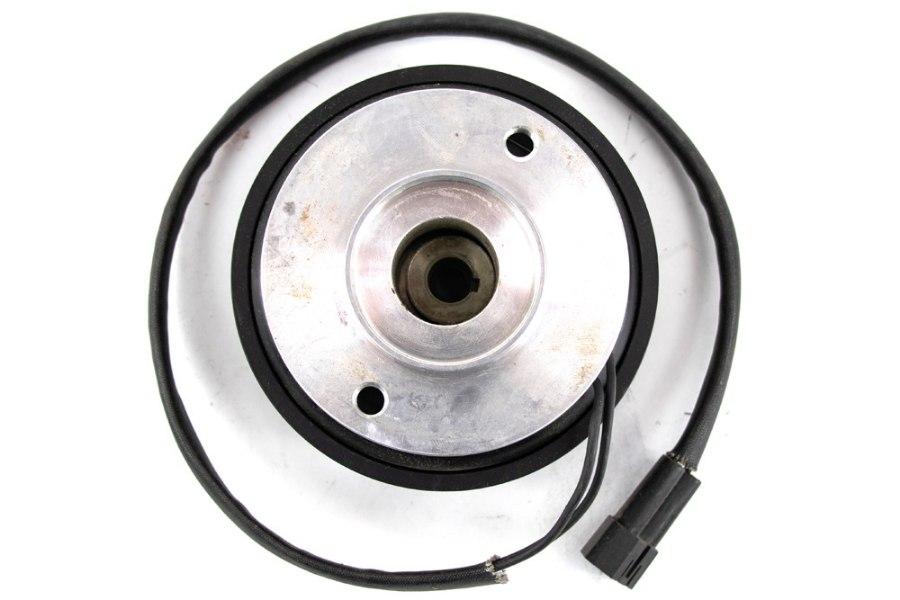

DewEze 7 groove serpentine belt clutch pump system "AA" mount tapered 5" Warner electric clutch 12vdc.
NOTE TO INSTALLER Clutches will need a short burnishing period to generate the rated torque. This is a process of cycling the clutch to slightly wear the friction surfaces. This allows full contact and maximum magnetic attraction required for rated torque (or more).
BURNISHING-TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED:
After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 1 seconds on - 1 seconds off for a minimum of 30-40 cycles.
- Grooves: 7
- Diameter: 5
- Brand: Warner
- Model Number: 1417-42
- Center Bolt Size: 1/14-20 x 3/4
- Bolt Kit: 713001
- Coil: 732029
- Hub:740164
