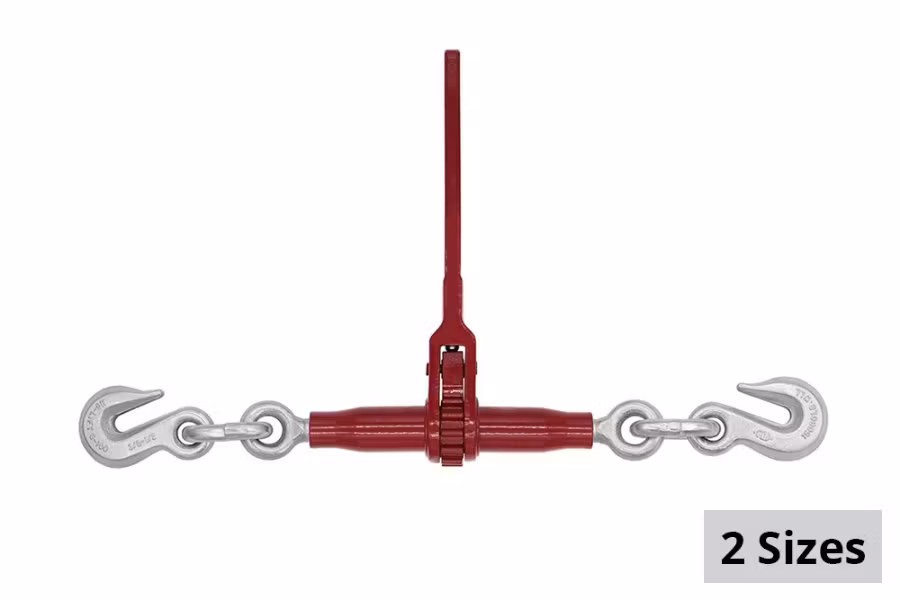

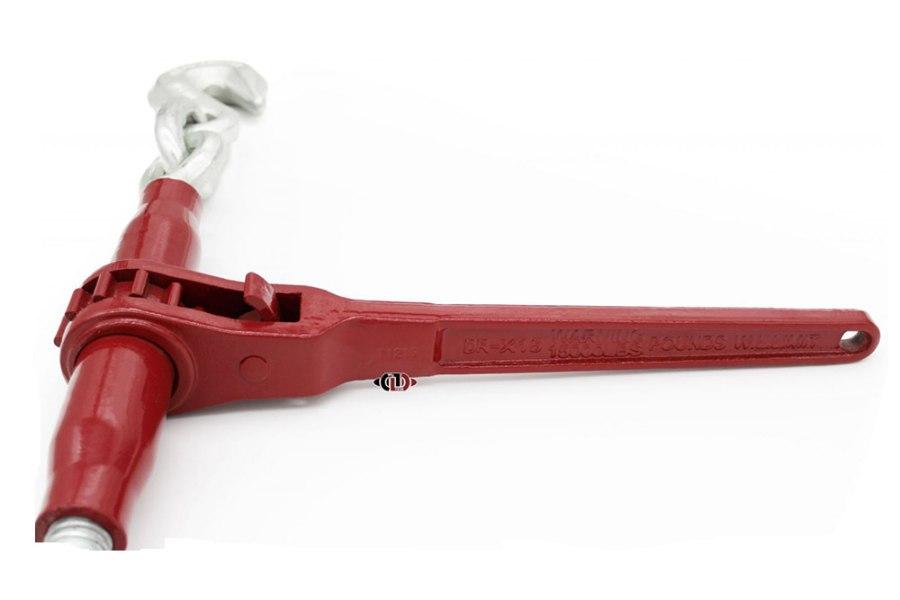

Durabilt (DR-X) Titan Series Binder

In 2012, the DR-X Titan Series Durabilt Ratchet Binders were used on a 160-wheeled carrier to transport the Space Shuttle Endeavour 12 miles across L.A. If it's good enough to handle a space shuttle, it's good enough for whatever load you can imagine.

This heavy-duty binder can handle a working load limit of up to 16,000 lbs. depending on what size you get. Its forged steel construction can handle whatever you throw at it. Plus, with the corrosion–resistant powder-coating and zinc-plated end fittings, you can be sure this spacecraft-carrying binder will last for a long time.

• Fits chain size (inches): 1/2"-3/8" / 5/8"-1/2"
• Take up (inches): 8
• Barrel length (inches): 10
• Handle length (inches): 15
• Screw diameter (inches): 1
• Eye hole diameter/ throat opening (inches): .66 / .77
• B to B (closed-open) (inches): 25.5-33.5 / 26.5-34.5
• Workload limit (lbs): 15,000 / 16,000
• Proof load limit (lbs): 30,000 / 32,000

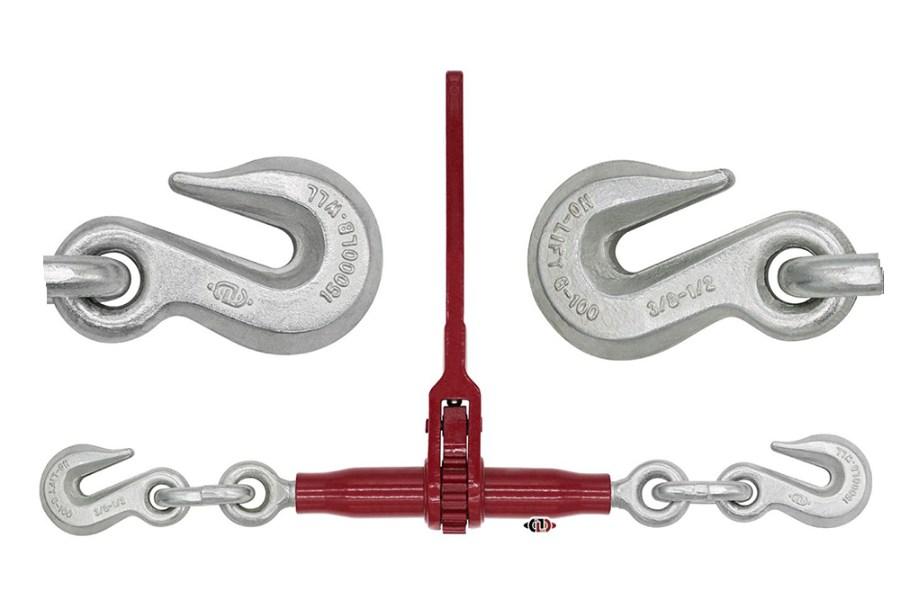

• End fittings: grab hook 1/2" each end / grab hook 5/8" each end
• Weight (lbs): 15.4 / 16.6
• Series: (DR-X) Titan
• Quantity/box: 4
• Sold individually
• Ratchet binder
• Hooks and eye bolts are zinc plated
• Steel construction (forged)
• Powder-coated body
• Heavy swaged tube body
• Color: red
• Made in China
