Federal Signal 4200S and 8200S SignalMaster

Enhance visibility, safety, and versatility with the Federal Signal 4200S and 8200S SignalMaster Stick. Equipped with advanced LED lighting, this light offers numerous benefits for vehicles. It consumes minimal power, reducing strain on the vehicle's electrical system and enabling extended road use. With 14 flash patterns and multiple sizes to choose from, you can select the ideal mode for your specific requirements, whether it's for emergency vehicles, construction sites, or traffic control.

The Signal Master Stick Light is designed for convenience and adaptability. It can be easily mounted using the SignalMaster bracket, allowing for flexible positioning options. Its wide operating temperature range of -40 to 176 degrees Fahrenheit (-40 to 80 degrees Celsius) and resistance to water ensures reliable performance in various climates and weather conditions.

Safety is paramount, which is why the Signal Master Stick Light is SAE J595 Class 1 and CCR Title 13 approved. These certifications guarantee its effectiveness and compliance with regulations for lighting devices on vehicles. Additionally, it's dimming feature assures no worker will be stranded in the dark without warning.

This light also offers a 3-year warranty, showcasing its durability and providing you with peace of mind. Its long-lasting LED technology ensures exceptional visibility and safety on the road, regardless of lighting conditions. It's this durability and long lasting performance that makes replacement rates so low, providing a cost-effective lighting solution.

• LED directional warning light
• 18 inch whip with water-light connector
• Aluminum housing with rail design
• 14 flash patterns
• Discrete cable or serial controller options
• Low-power mode
• Operating voltage: 12 Vdc
• Current Draw: 0.5 A per head
• Operating Temperature: -40F to 176F (-40 to 80C)
• Three-year warranty
• SAE J595, Class 1
• CCR Title 13
• Mounting options
• Extensions available
• Multiple lengths
• 4200 model: 4 LEDs per light head / 8200 model: 8 LEDs per light head

Specifications:

Signalmaster Models Specs

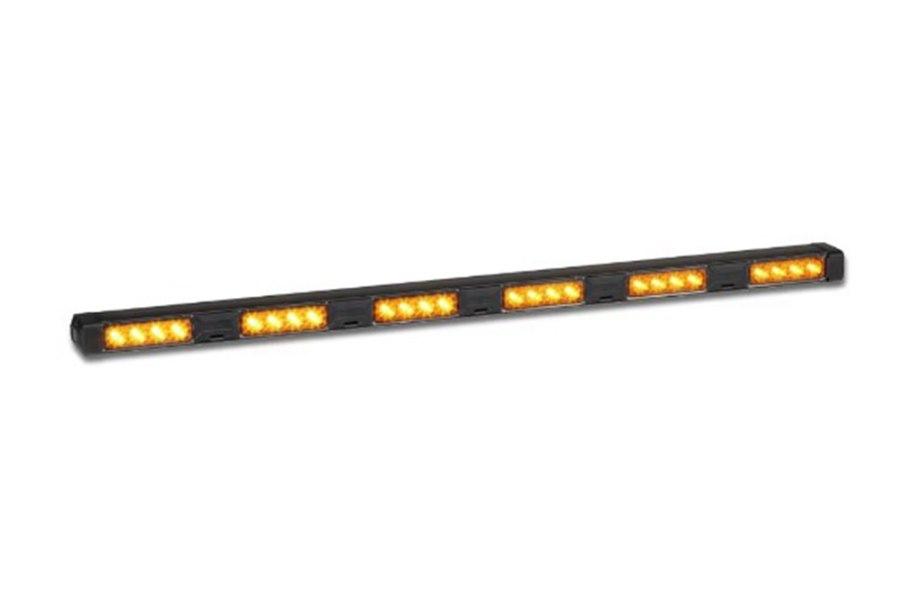

4200SM6-A
 Dimensions: 32.8” L x 2.0” W x 1.4” H
 Weight 5.0 lb
4200SM8-A-42
 Dimensions: 44.0” L x 2.0” W x 1.4” H
 Weight: 7.0 lb

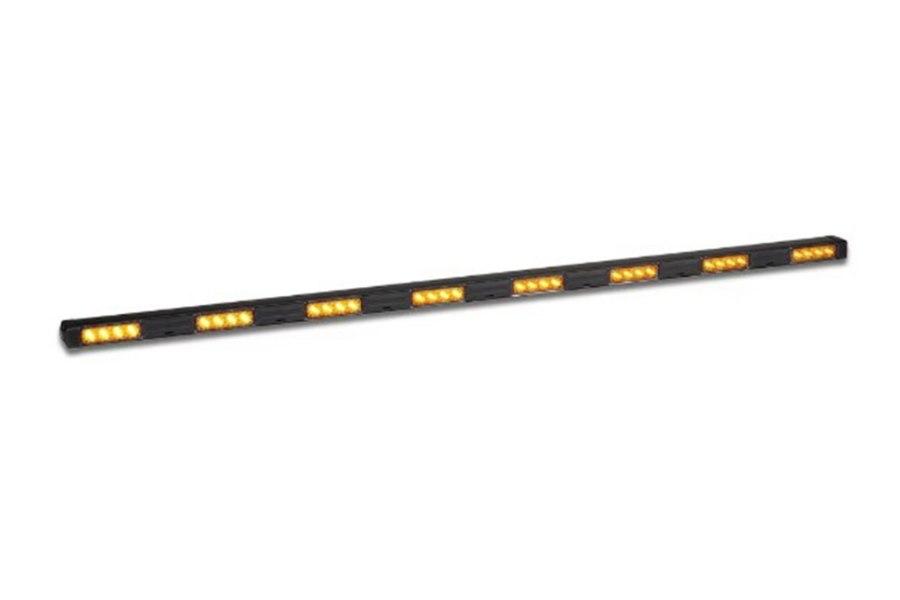

4200SM8-A-51
 Dimensions: 53.0” L x 2.0” W x 1.4” H
 Weight: 7.5 lb

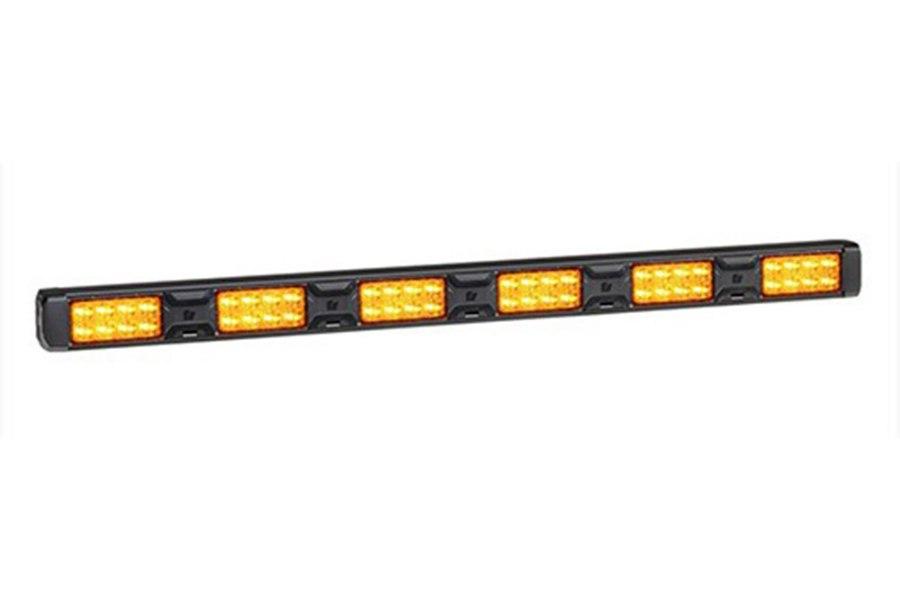

8200SM6-A
 Dimensions: 32.9” L x 1.9” W x 2.3” H
 Weight: 5.0 lb

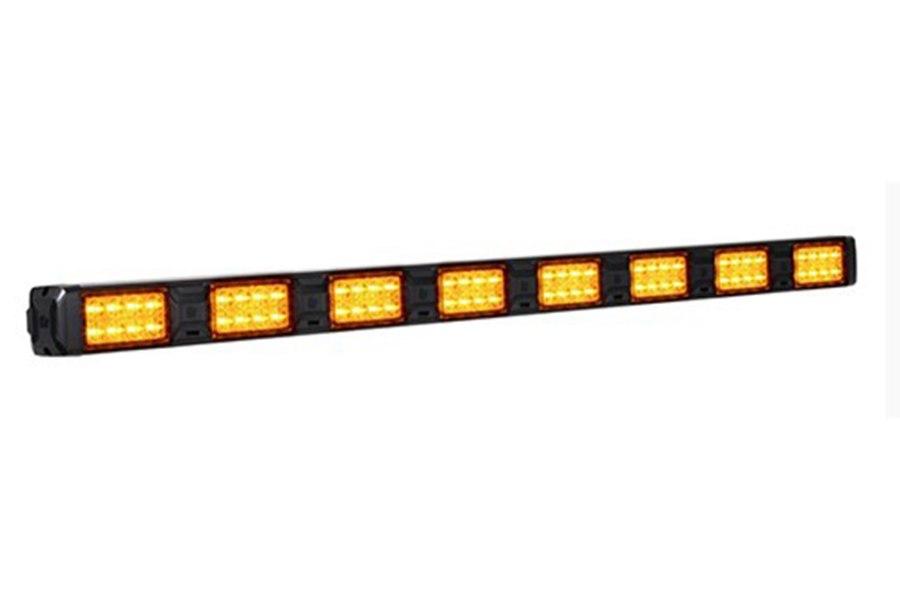

8200SM8-A-42
 Dimensions: 43.9” L x 1.9” W x 2.3” H
 Weight: 7.0 lb

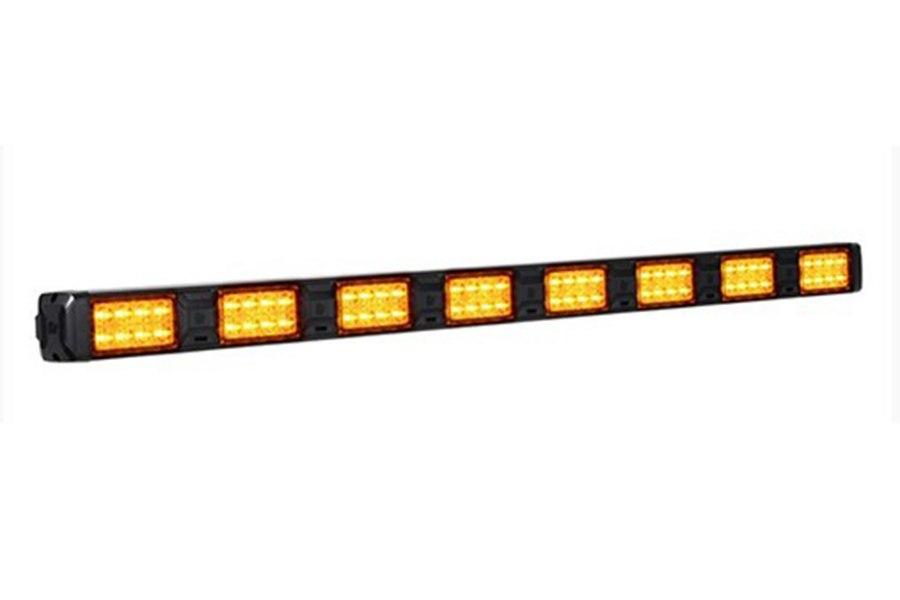

8200SM8-A-51
 Dimensions: 52.9” L x 1.9” W x 2.3” H
 Weight: 7.5 lb

Signalmaster Arrow Models Specs
4200SMA10-A
 Dimensions: 33.1” L x 2.2” W x 10.1” H
 Weight” 10.0 lb
4200SMA16-A
 Dimensions: 53.0” L x 2.2” W x 18.5” H
 Weight: 13.0 lb
8200SMA10-A
 Dimensions: 16.6” L (Per Side) x 2.3” W x 11.9” H
 Weight: 13.5 lb
8200SMA10-A-2
 Dimensions: 33.1” L x 2.3” W x 11.9” H
 Weight: 13.5 lb
8200SMA16-A
 Dimensions: 53.1” L x 2.11” W x 20.2” H
 Weight: 18.0 lb

Required Accessories (Must order one with each 4200s or 8200s signalmaster)
SMCABLE-15- Discrete cable, 15-ft
SMCABLE-30- Discrete cable, 30-ft
SMCONTROL- Eight-button serial controller with 20-ft cable
Optional Accessories
SMEXTENSIONS-15- Extension cable, 15-ft, for use with SMCONTROL
SMEXTENSIONS-30- Extension cable, 30-ft, for use with SMCONTROL
SW200-B- Four-switch box with bail bracket, for use with SMCABLE
SW300-B- Six-switch box with bail bracket. For use with SMCABLE
SW400SS-B- Four-switch with slide switch box with bail bracket, for use with SMCABLE
