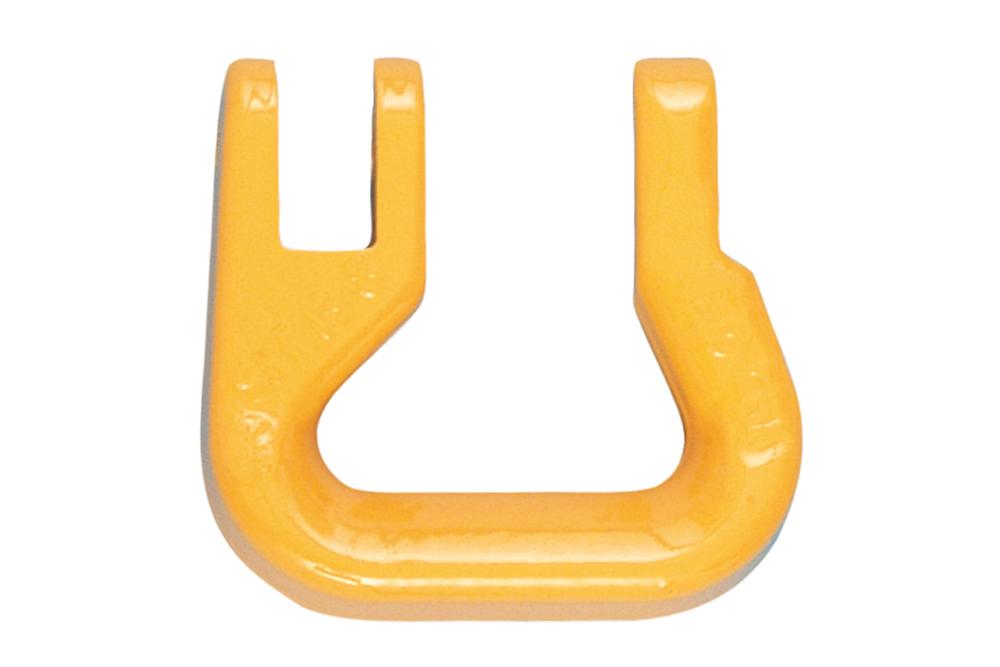

When you need to have a snug fit for your round slings, you can use the Gunnebo Classic Roundsling Coupling SKR. Specially designed for the full working load limit of round slings, you can trust this heat-treated coupling. Plus, it comes with an identification stamp that tells you the batch, factory and year it was manufactured in.
This coupling was designed to work with the SK line of products. It comes in seven sizes with a working load limit that ranges from 4,500 lbs. to 72,300 lbs. These options make for a convenient, yet reliable coupling that can handle what you need it to.
- 7 sizes: 5/16”-1”
- WLL: 4,500 lbs-47,700 lbs
- Safety factor 4:1
- Grade 80 approved for overhead lifting
- Heat number identification for traceability
- Made of high-quality steel
Imperial
Item # |
GI-Z127840 |
GI-Z143143 |
GI-Z302538 |
GI-Z143240 |
GI-Z143347 |
GI-Z100057 |
GI-Z100055 |
Code |
SKR-7/8-8 |
SKR-10-8 |
SKR-13-8 |
SKR-16-8 |
SKR-18/20-8 |
SKR-22-8 |
SKR-26-8 |
WLL lb*
|
4,500 |
7,100 |
12,000 |
18,000 |
28,300 |
34,200 |
47,700 |
L |
1.38 |
1.65 |
1.97 |
2.44 |
2.80 |
111 |
129 |
E |
1.57 |
1.85 |
2.09 |
2.64 |
3.15 |
125 |
150 |
G |
0.51 |
0.63 |
0.75 |
0.91 |
1.10 |
40 |
48 |
K |
0.71 |
0.94 |
1.14 |
1.38 |
1.69 |
50 |
58 |
WLL lb |
1.30 |
1.74 |
2.16 |
2.60 |
3.13 |
11.68 |
19.62 |
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches. |
Item # |
GI-Z127840 |
GI-Z143143 |
GI-Z302538 |
GI-Z143240 |
GI-Z143347 |
GI-Z100057 |
GI-Z100055 |
Code |
SKR-7/8-8 |
SKR-10-8 |
SKR-13-8 |
SKR-16-8 |
SKR-18/20-8 |
SKR-22-8 |
SKR-26-8 |
WLL tonnes*
|
2.0 |
3.2 |
5.4 |
8.2 |
12.8 |
15.5 |
21.7 |
L |
35 |
42 |
50 |
62 |
71 |
111 |
129 |
E |
40 |
47 |
53 |
67 |
80 |
125 |
150 |
G |
13 |
16 |
19 |
23 |
28 |
40 |
48 |
K |
18 |
24 |
29 |
35 |
43 |
50 |
58 |
WLL kg |
0.2 |
0.4 |
0.7 |
1.3 |
1.9 |
5.3 |
8.9 |
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M-02, AS 3776:2015 and SANS 1595:2003. *Safety factor 4:1. All dimensions in mm. |
