Gunnebo GrabiQ C-Grab CG

Leave a Review

Shop all Gunnebo products

Choose SIZE *: 7/32" - 3,306 WLL

7/32" - 3,306 WLL

Not available

5/16" - 5,700 WLL

5/16" - 5,700 WLL

Not available

3/8" - 8,800 WLL

3/8" - 8,800 WLL

Not available

1/2" - 15,000 WLL

1/2" - 15,000 WLL

Not available

5/8" - 22,600 WLL

5/8" - 22,600 WLL

Not available

SKU: GI-CGRAB-CG

Price: $71.99–$284.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

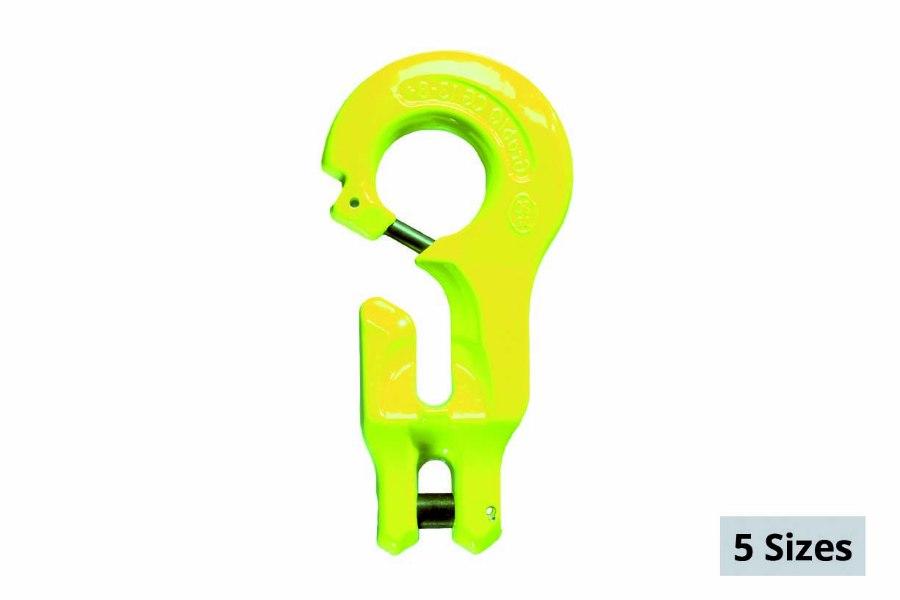

The Gunnebo GrabiQ C-Grab CG is made for use with master links, eyehooks and chokes. The built-in shortening function allows the user to take up less chain without having to re-rig at the lifting point. This hook is forged with a heat number identification that identifies precisely which plant the product was made in, the year and the batch. Thanks to its heavy-duty finish you can trust this heat-treated hook to connect the master link on your sling to the lifting chain leg, providing a safe and secure lifting point on the job.

Featuring a safety factor of 4:1, this grade 100 hook is approved for overhead lifting. Plus, its rigorously tested high-quality steel can handle up to 22,600 lbs, see the dropdown menu for more information.

5 sizes: 7/32”-5/8"
WLL: 3,306 lbs. to 22600 lbs.
Safety factor 4:1
Grade 100 approved for overhead lifting
Connects chains, slings and hooks
Heat number identification for traceability
Approved by BG/DGUV
Made of high-quality steel

Imperial

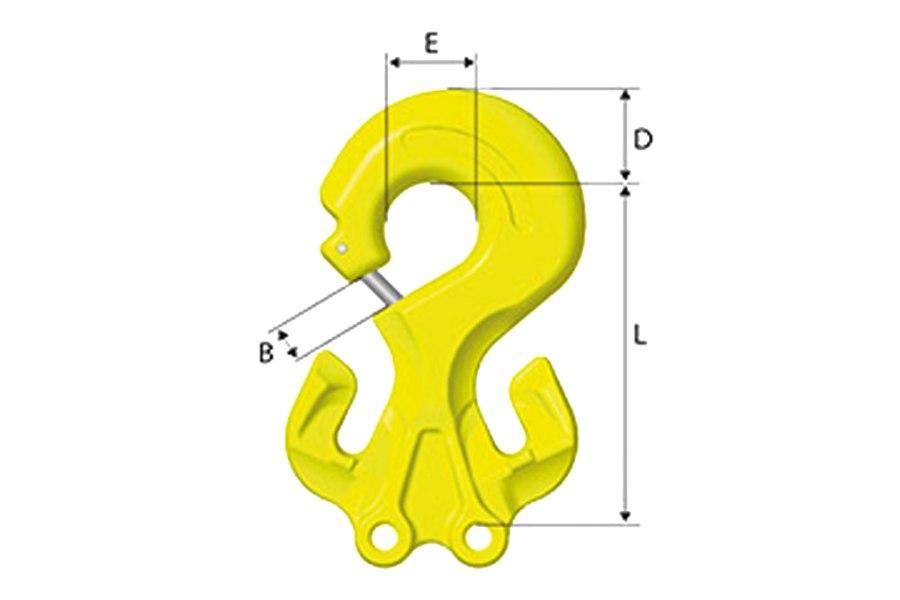

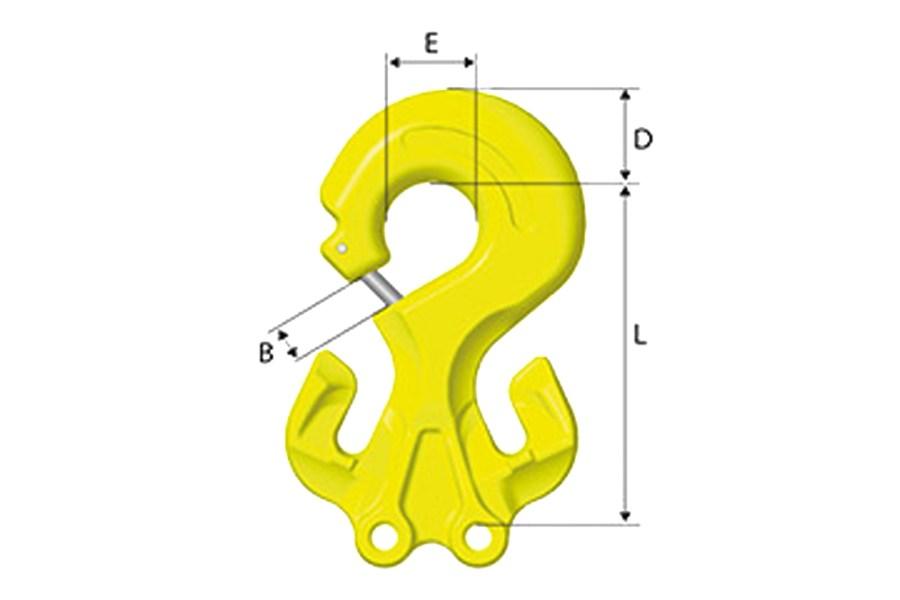

Item #	GI-B14730	GI-B14731	GI-B14732	GI-B14733	GI-B14734
Code	CG-6-10	CG-8-10	CG-10-10	CG-13-10	CG-16-10
WLL lb*	3,306	5,700	8,800	15,000	22,600
L	3.15	4.21	5.28	6.77	8.46
B	0.43	0.47	0.59	0.71	0.87
E	0.94	1.26	1.57	2.05	2.52
D	0.75	0.94	1.14	1.50	1.85
Weight lb	0.66	1.54	3.31	7.05	13.45
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-B14730	GI-B14731	GI-B14732	GI-B14733	GI-B14734
Code	CG-6-10	CG-8-10	CG-10-10	CG-13-10	CG-16-10
WLL tonnes*	1.5	2.6	4.0	6.8	10.3
L	80	107	134	172	215
B	11	12	15	18	22
E	24	32	40	52	64
D	19	24	29	38	3.2
Weight kg	0.3	0.7	1.5	3.2	6.1
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm.
