Gunnebo GrabiQ C-Grab Duo CGD

Leave a Review

Shop all Gunnebo products

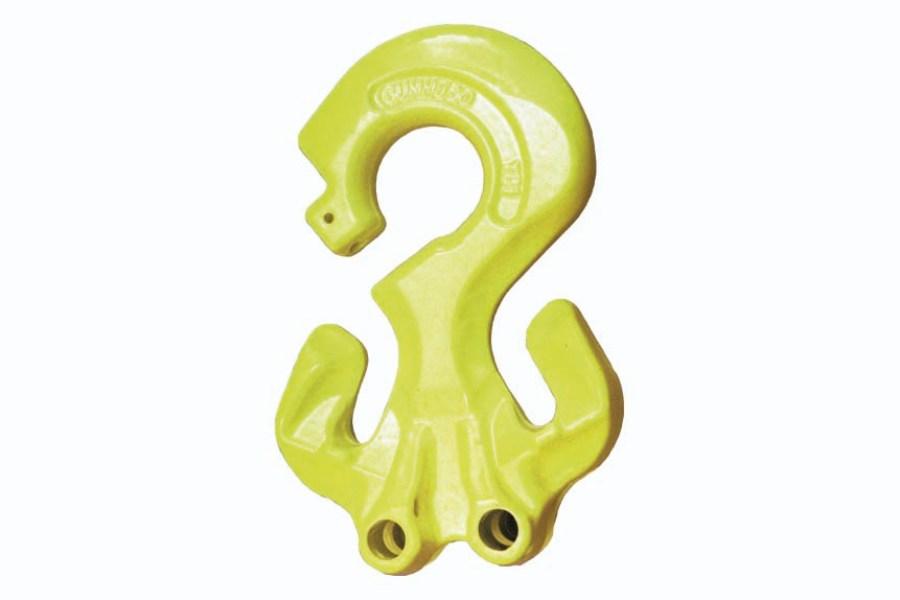

Picture of Gunnebo GrabiQ C-Grab Duo CGD

Choose SIZE *: 7/32" - 4,700 WLL

7/32" - 4,700 WLL

Not available

5/16" - 9,900 WLL

5/16" - 9,900 WLL

Not available

3/8" - 15,200 WLL

3/8" - 15,200 WLL

Not available

1/2" - 26,000 WLL

1/2" - 26,000 WLL

Not available

5/8" - 39,100 WLL

5/8" - 39,100 WLL

Not available

SKU: GI-CGRAB-CGD

Price: $96.99–$451.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

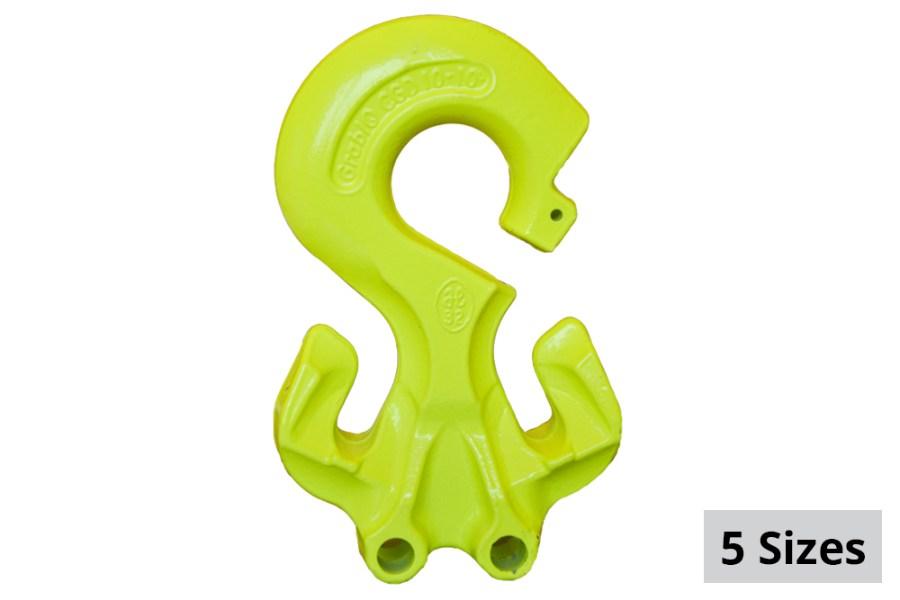

The Gunnebo GrabiQ C-Grab Duo CGD comes with two extra hooks to shorten the chain length. This built-in shortening function allows the user to take up less chain without having to re-rig at the lifting point. The hook itself is forged with a heat number identification that identifies precisely which plant the product was made in, the year and the batch. Thanks to its heavy-duty finish you can trust this heat-treated hook to connect the master link on your sling to the lifting chain leg, providing a safe and secure lifting point on the job.

Featuring a safety factor of 4:1, this grade 100 hook is approved for overhead lifting. Plus, its rigorously tested high-quality steel can handle up to 39,100 lbs, see the dropdown menu for more information.

5 sizes: 7/32”-5/8"
WLL: 4,700 lbs. to 39,100 lbs.
Safety factor 4:1
Grade 100 approved for overhead lifting
Connects chains, slings and hooks
Heat number identification for traceability
Approved by BG/DGUV
Made of high-quality steel
Maximum in-service temperature: 392°F

Imperial

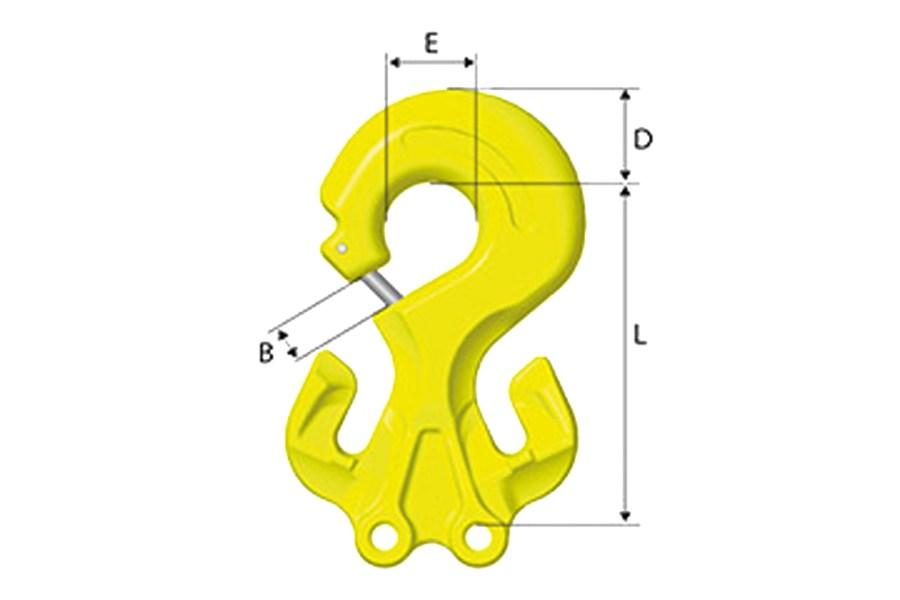

Item #	GI-B14720	GI-B14721U	GI-B14722U	GI-B14723U	GI-B14724U
Code	CG-6-10	CG-8-10	CG-10-10	CG-13-10	CG-16-10
WLL lb*	4,700	9,900	15,200	26,000	39,100
L	3.1	4.2	5.3	6.8	8.5
B	0.43	0.47	0.59	0.75	0.87
E	0.94	1.3	1.6	1.9	2.5
D	0.87	1.1	1.5	1.9	2.2
Weight lb	1.1	2.4	4.8	11.9	20.1
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	GI-B14720	GI-B14721U	GI-B14722U	GI-B14723U	GI-B14724U
Code	CG-6-10	CG-8-10	CG-10-10	CG-13-10	CG-16-10
WLL tonnes*	2.1	3.5	5.6	9.5	14.0
L	79	107	134	173	215
B	11	12	15	19	22
E	24	32	40	48	64
D	20	29	37	48	57
Weight kg	0.6	1.1	2.2	5.4	9.1
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm.

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #	Size
GI-B14724U	B14724U	5/8" - 39,100 WLL
GI-B14720	B14720	7/32" - 4,700 WLL
GI-B14721U	B14721U	5/16" - 9,900 WLL
GI-B14723	B14723	1/2" - 26,000 WLL
GI-B14722U	B14722U	3/8" - 15,200 WLL
