Gunnebo GrabiQ Couplinig Link G

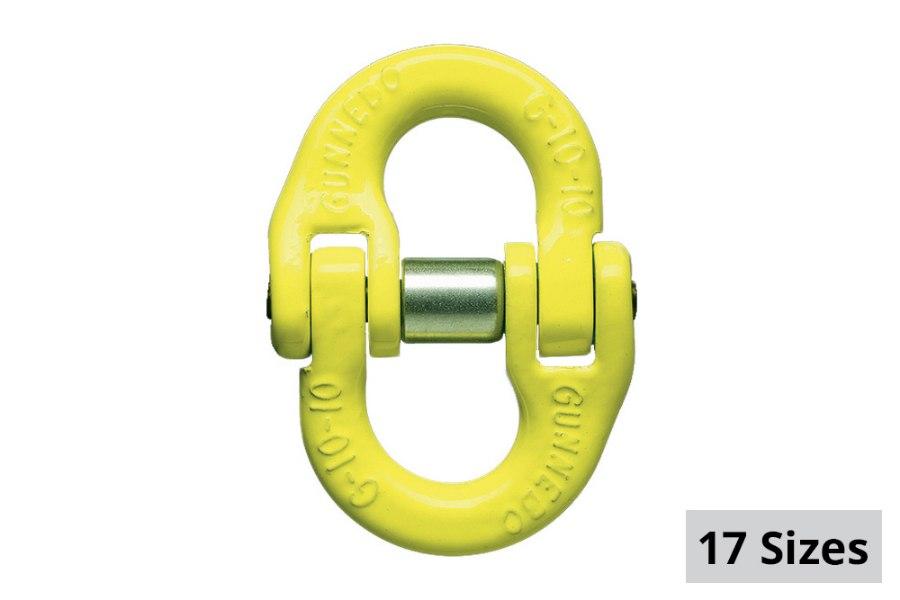

This GrabiQ G Coupling Link from Gunnebo features a heavy-duty retaining collar for semi-permanent connections for chains, slings and hooks. The coupler is forged with extra-wide inside dimension, and a heat number identification allows for full product traceability. The heavy-duty finish ensures product durability. Featuring a Safety Factor of 4:1, the Grade 100 coupler is approved for overhead lifting and 25 percent stronger than Grade 80. Choose from 10 sizes and Working Load Limits ranging from 3,306 lbs. to 88,160 lbs. Various sizes allow slings to handle different capacities.

• Connects chains, slings and hooks
• Grade 100 approved for overhead lifting
• 10 sizes: 7/32” to 1-1/4"
• WLL: 3,306 lbs. to 88,160 lbs.
• Forged with extra-wide inside dimension
• Heavy-duty retaining collar
• Heat number identification for traceability

Imperial

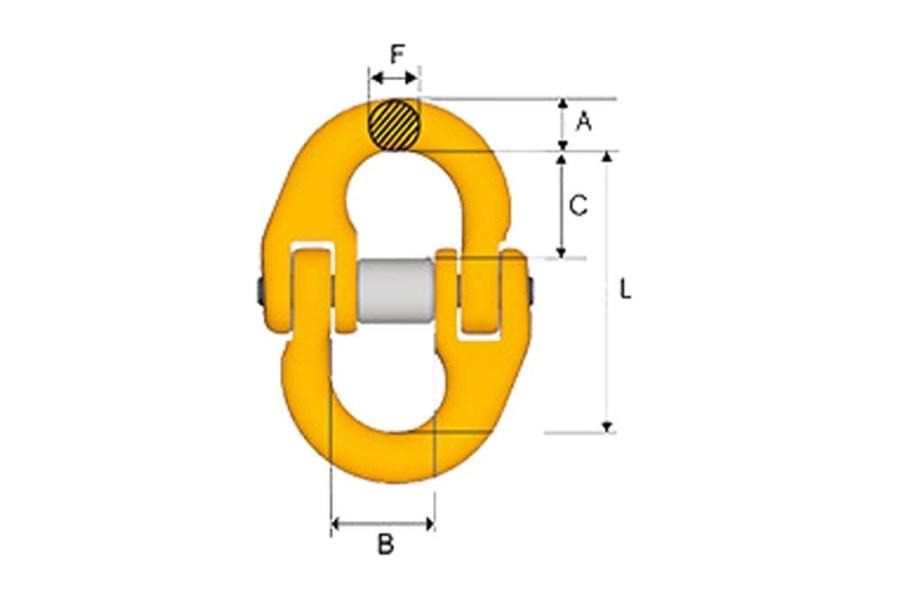

Item #	Code	WLL lb*	For chain dim.	L	B	F	A	C	Weight lb
GI-Z100822	G-6-8	5,700	5/16	1.77	0.59	0.28	0.31	0.67	0.22
GI-Z279430	G-10-8	7,100	3/8	2.68	0.98	0.43	0.51	1.02	0.66
GI-Z100823	G-10-10	8,800	3/8	2.68	0.98	0.47	0.51	1.02	0.74
GI-Z279537	G-13-8	12,000	1/2	3.50	1.18	0.59	0.63	1.30	1.54
GI-Z100824	G-13-10	15,000	1/2	0.27	0.26	0.59	0.66	1.30	1.67
GI-Z279634	G-16-8	18,000	5/8	4.13	1.42	0.75	0.79	1.57	2.65
GI-Z100825	G-16-10	22,600	5/8	4.17	1.41	0.74	0.79	1.57	3.01
GI-Z279731	G-18/20-8	28,300	3/4	1.69	1.69	0.87	0.91	1.85	4.19
GI-Z101119	G-20-10	35,300	3/4	4.92	1.69	0.91	1.02	1.73	6.01
GI-Z279838	G-22-8	34,200	7/8	5.98	1.97	0.94	1.02	2.32	6.61
GI-Z100821	G-6-10	3,306	7/32	1.77	0.59	0.27	8.31	0.62	0.20
GI-Z101339	G-22-10	44,080	7/8	5.98	1.97	1.02	1.10	2.32	7.94
GI-Z101358	G-7-10	4,500	9/32	2.20	0.71	0.35	0.43	0.87	0.36
GI-Z101365	G-26-10	88,160	1	6.34	2.28	1.25	1.34	2.40	12.57
GI-Z101666	G-32-10	88,160	1-1/4	7.87	2.76	1.50	1.57	3.03	20.94
GI-Z349171	G-26-8	47,700	1	6.34	2.28	1.18	1.30	2.40	11.46
GI-Z349189	G-32-8	72,300	1-1/4	7.87	2.76	1.50	1.57	3.03	20.94
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Metric

Item #	Code	WLL tonnes*	For chain dim.	L	B	F	A	C	Weight kg
GI-Z100822	G-6-8	1.1	6	45	15	7	8	17	0.1
GI-Z279430	G-10-8	3.2	10	68	25	11	13	26	0.3
GI-Z100823	G-10-10	4.0	10	68	25	12	13	26	0.3
GI-Z279537	G-13-8	5.4	13	89	30	15	16	33	0.7
GI-Z100824	G-13-10	6.8	13	89	29	15	17	33	0.7
GI-Z279634	G-16-8	8.2	16	105	36	19	20	40	1.2
GI-Z100825	G-16-10	10.3	16	106	36	19	20	40	1.3
GI-Z279731	G-18/20-8	12.8	19	125	43	22	23	47	1.9
GI-Z101119	G-20-10	16.0	19	125	43	23	26	44	2.7
GI-Z279838	G-22-8	15.5	22	152	50	24	26	59	3.0
GI-Z100821	G-6-10	1.5	6	45	15	7	8	16	0.1
GI-Z101339	G-22-10	20.0	22	152	50	26	28	59	3.6
GI-Z101358	G-7-10	2.0	6	56	18	9	11	22	0.1
GI-Z101365	G-26-10	27.3	25	161	58	32	34	61	5.7
GI-Z101666	G-32-10	40.0	23	200	70	38	40	77	9.5
GI-Z349171	G-26-8	21.7	26	161	58	30	33	61	5.2
GI-Z349189	G-32-8	32.8	32	200	70	38	40	77	9.5
Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M-02, AS 3776:2015 and SANS 1595:2003. *Safety factor 4:1. All dimensions in mm.
