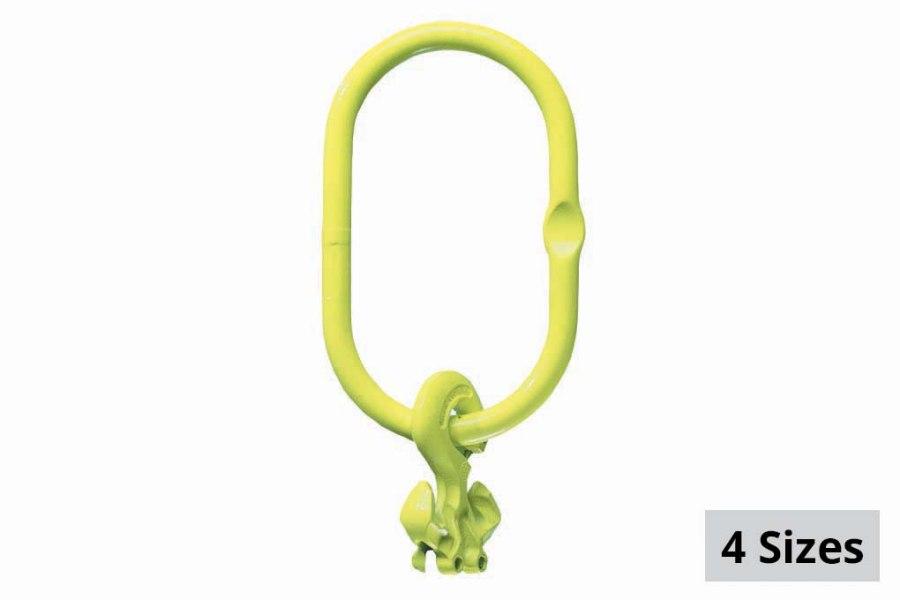

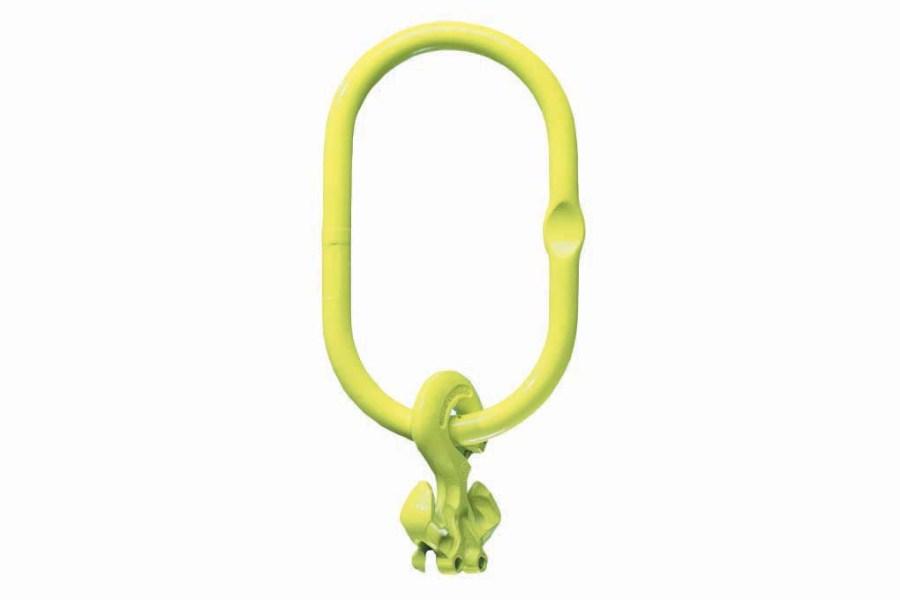

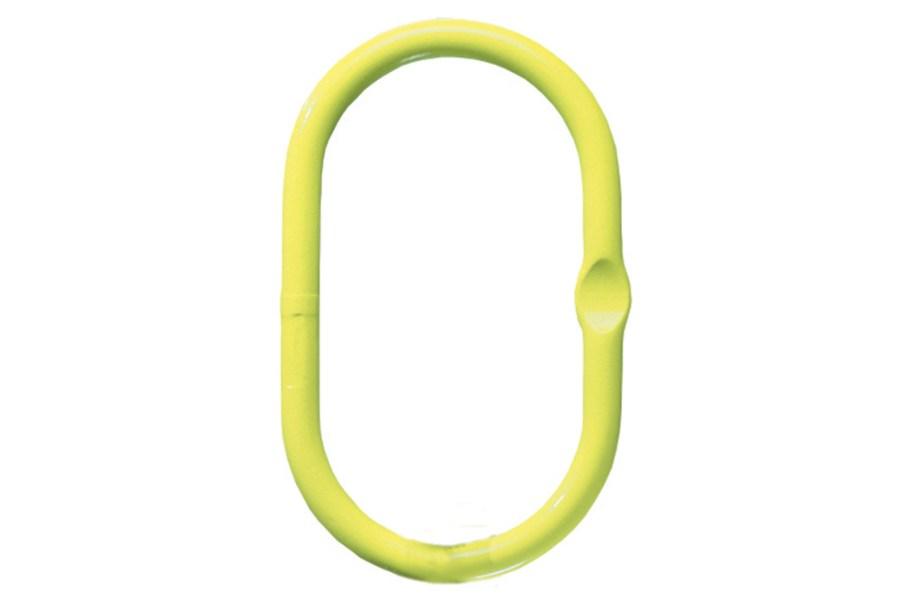

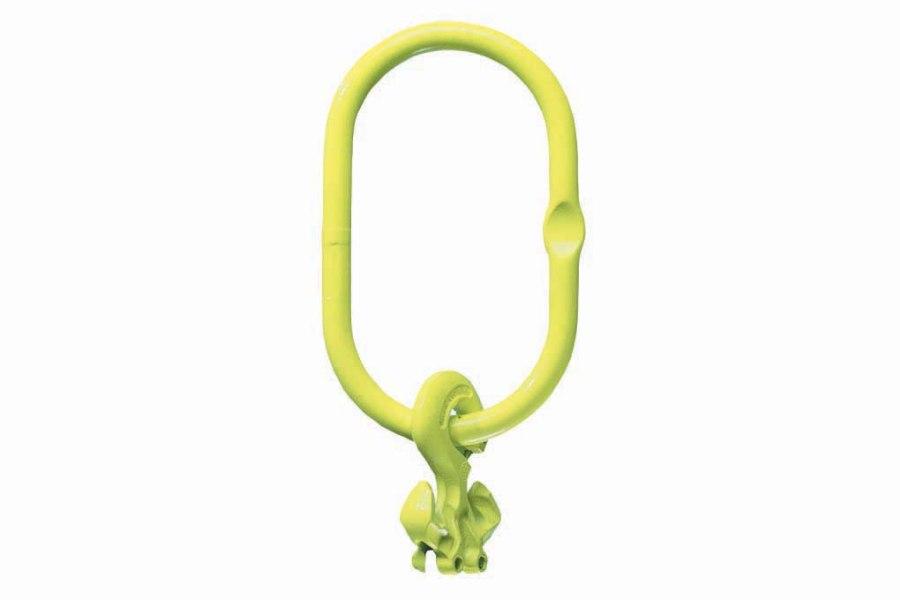

The MFX Master Link from Gunnebo is an oversized link for 1- and 2-leg GrabIQ slings and is designed for use with CL, CLD, CG and CGD components. Choose from four sizes with Working Load Limits ranging from 11,461 lbs. to 35,500 lbs. Featuring a Safety Factor of 5:1, each MFX Master Link allows for efficient sling connection, and the various capacities of links allow for safe lifting with the correct master link.
As with all GrabIQ products, each master link is stamped for traceability and production standards. Here you can find the country of origin, manufacturer identification, grade, batch letter and code. Traceability makes it possible to track the product through the whole production process back to the raw material.
- Four sizes available: 1" to 1-9/16"
- WLL: 11,461 lbs. to 35,300 lbs.
- Safety Factor: 5:1
- Oversized link
- Accepts 1- and 2-leg slings
- Stamped for traceability
Imperial
Item # |
GI-Z100550 |
GI-Z100551 |
GI-Z100552 |
GI-Z101125 |
Code |
MFX-108-10 |
MFX-1310-10 |
MFX-1613-10 |
MFX-2016-10 |
WLL lb (SF 5:1)
EN 1677-4 |
9,367 |
16,530 |
24,685 |
35,300 |
WLL lb (SF 5:1)
A-952/A952M
AS 3775.2 |
11,461 |
17,632 |
29,974 |
45,402 |
For chain
1-leg |
5/16, 3/8 |
1/2 |
5/8 |
3/4 |
For chain
2-leg |
5/16 |
3/8 |
1/2 |
5/8 |

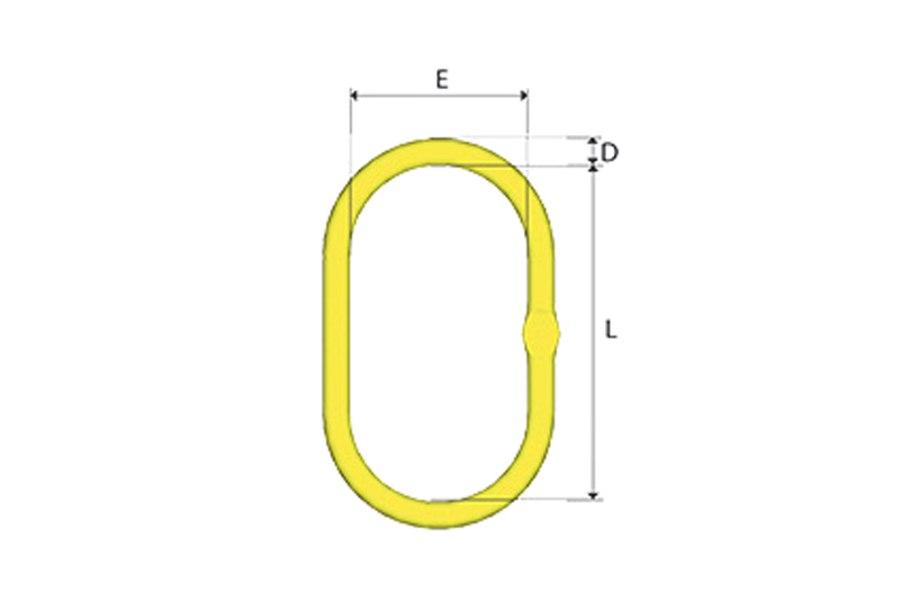

L |
13.39 |
13.39 |
13.39 |
13.39 |
E |
7.09 |
7.09 |
7.09 |
7.09 |
D |
1 |
1-1/8 |
1-3/8 |
1-9/16 |
Weight lb |
8.16 |
10.36 |
15.65 |
21.16 |
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M, AS 3775:2014 and AS 3776:2015. All dimensions in inches. |
Metric
Item # |
GI-Z100550 |
GI-Z100551 |
GI-Z100552 |
GI-Z101125 |
Code |
MFX-108-10 |
MFX-1310-10 |
MFX-1613-10 |
MFX-2016-10 |
WLL t (SF 5:1)
EN 1677-4 |
4.25 |
7.5 |
11.2 |
16.0 |
WLL t (SF 5:1)
ASTM A-952
|
5.2 |
8.0 |
13.6 |
20.6 |
For chain
1-leg |
8, 10 |
13 |
16 |
20 |
For chain
2-leg |
8 |
10 |
13 |
16 |
L |
340 |
340 |
340 |
340 |
E |
180 |
180 |
180 |
180 |
D |
25 |
28 |
34 |
40 |
Weight lb |
3.7 |
4.7 |
7.1 |
9.6 |
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02, AS 3775:2014 and AS 3776:2015. All dimensions in mm. |
