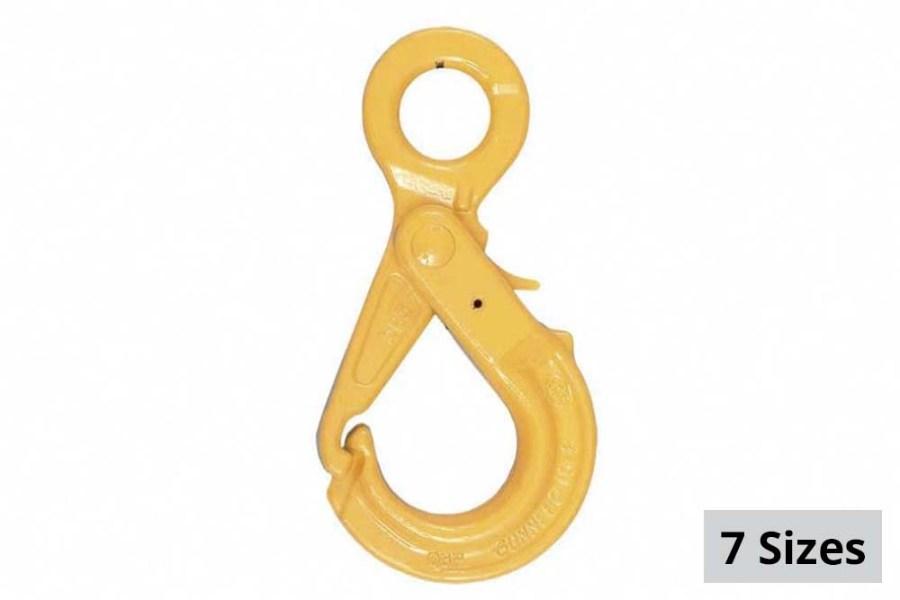

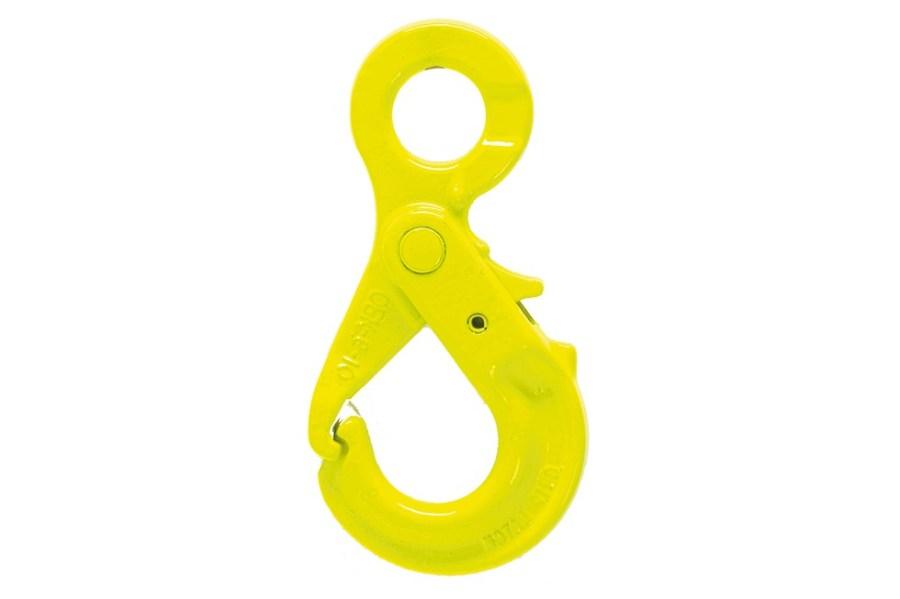

Gunnebo GrabiQ Safety Hook OBK

Item #	GI-Z101048	GI-Z101143	GI-Z101145	GI-Z101147	GI-Z101141	GI-Z101240	GI-Z100218
Code	OBK-6-10	OBK-7/8-10	OBK-10-10	OBK-13-10	OBK-16-10	OBK-18/20-10	OBK-22-8
WLL lb*	3,306	5,700	8,800	15,000	22,600	35,300	34,200

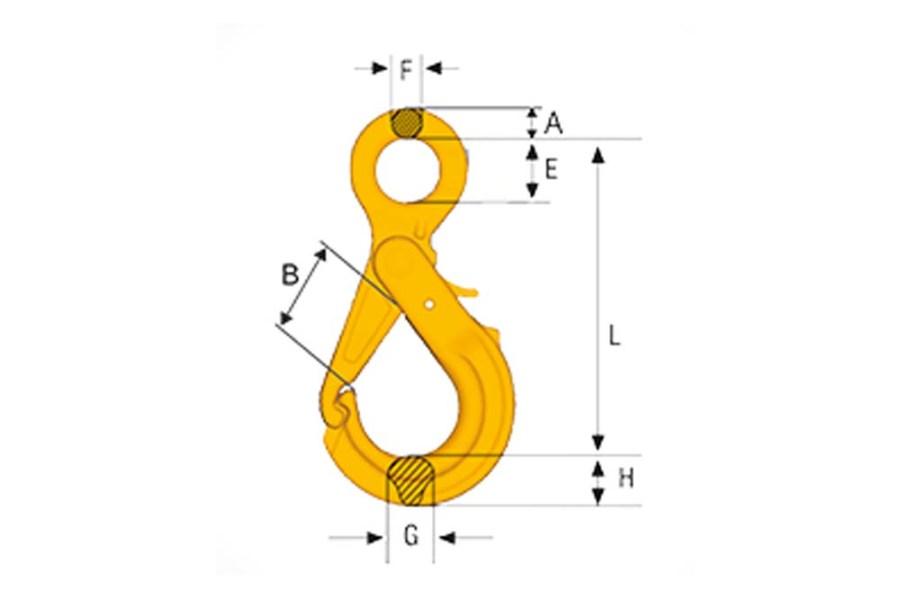

A	0.47	0.55	0.63	0.83	1.02	1.10	1.18
L	4.06	5.47	6.69	8.11	9.88	11.54	13.19
B	1.02	1.46	1.85	2.09	2.68	2.91	3.43
E	0.87	1.10	1.34	1.73	2.20	2.36	2.76
F	0.35	0.39	0.51	0.59	0.75	0.87	0.94
G	0.59	0.79	0.87	1.14	1.14	1.73	1.57
H	0.67	0.87	1.14	1.50	1.77	2.20	2.28
Weight lb	0.88	1.76	2.87	5.73	9.70	16.09	23
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Code

OBK-6-10

OBK-7/8-10

OBK-10-10

OBK-13-10

OBK-16-10

OBK-18/20-10

OBK-22-8

WLL lb*

3,306

5,700

8,800

15,000

22,600

35,300

34,200

A

0.47

0.55

0.63

0.83

1.02

1.10

1.18

L

4.06

5.47

6.69

8.11

9.88

11.54

13.19

B

1.02

1.46

1.85

2.09

2.68

2.91

3.43

E

0.87

1.10

1.34

1.73

2.20

2.36

2.76

F

0.35

0.39

0.51

0.59

0.75

0.87

0.94

G

0.59

0.79

0.87

1.14

1.73

1.57

H

0.67

0.87

1.14

1.50

1.77

2.20

2.28

Weight lb

0.88

1.76

2.87

5.73

9.70

16.09

23

Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1.
All dimensions in inches.
