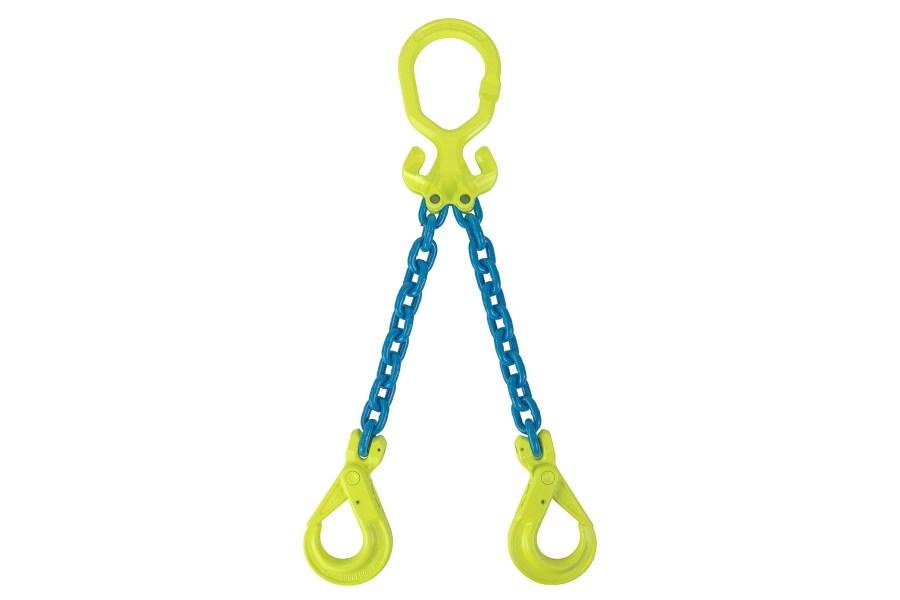

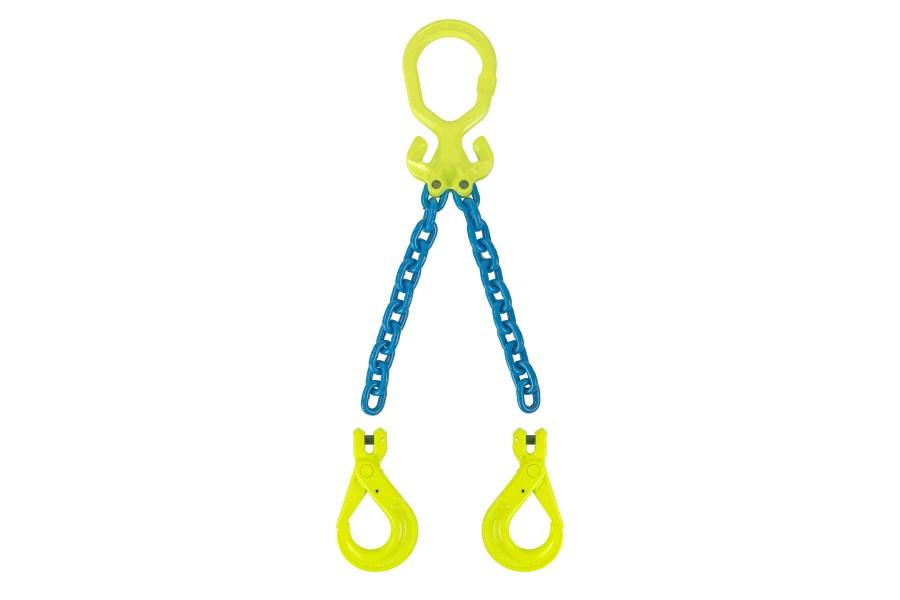

Increase the flexibility in your overhead lifting operations with Gunnebo’s GrabIQ FlexiLeg chain sling kits from Zip’s AW Direct. Add or remove legs as needed for the object being lifted with the removable QuickPin on each connecting hook to the master link. This stainless steel pin allows for safe exchange of sling legs and offers an instant open and close function so no tools are required.

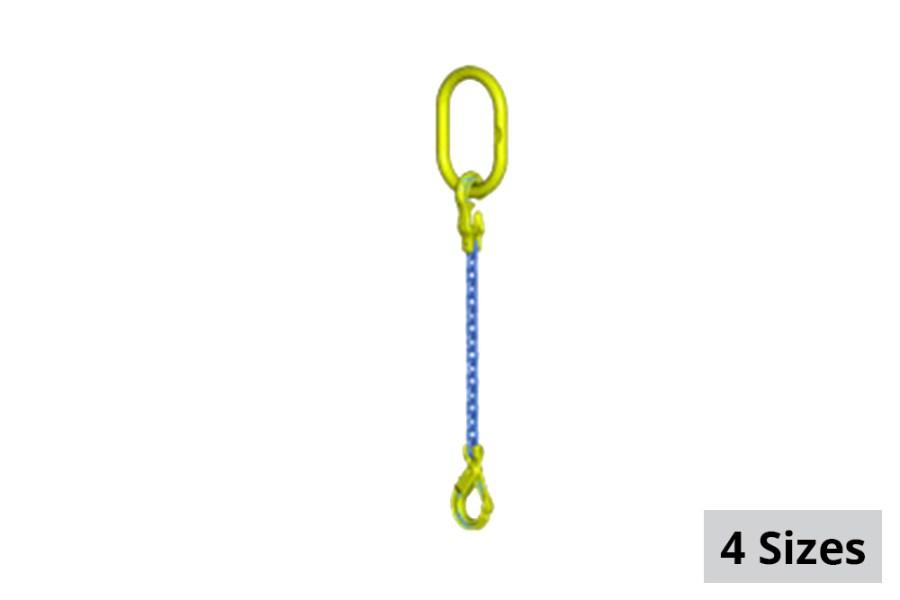

The single leg FlexiLeg chain sling includes a C-Grab CG connecting hook to the oblong master link. The integrated grab hook at the neck allows for quick chain shortening to adapt to any lifting application. The single leg is made from Grade 100 chain and is approved for overhead lifting. The safety yellow paint allows for easy identification.

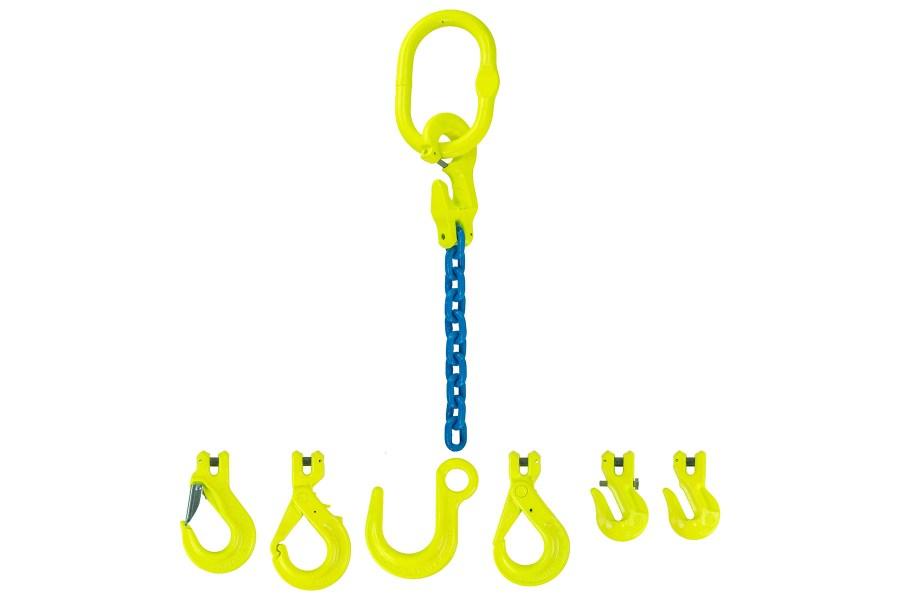

Offering a safety factor of 4:1, chain size ranges from 5/16”- 5/8”, and depending on the angle of lift, the Working Load Limit (WLL) ranges from 5,700 lbs. to 22,600 lbs. A stainless steel metal FlexiTag is attached to each sling and contains all pertinent safety information. Five hook options allow for the right connection for the job. Choose from sling, foundry, cradle grab, safety hook and grab hook with lock attachments.
- One chain leg
- Grade 100
- Chain size: 5/16”-5/8”
- WLL: 5,700 lbs.-22,600 lbs.
- Oblong master link
- C-Grab CG connecting hook
- Shortening functions
- Five hook attachment options
Available in the following sizes Size | Length | End Fitting |
---|

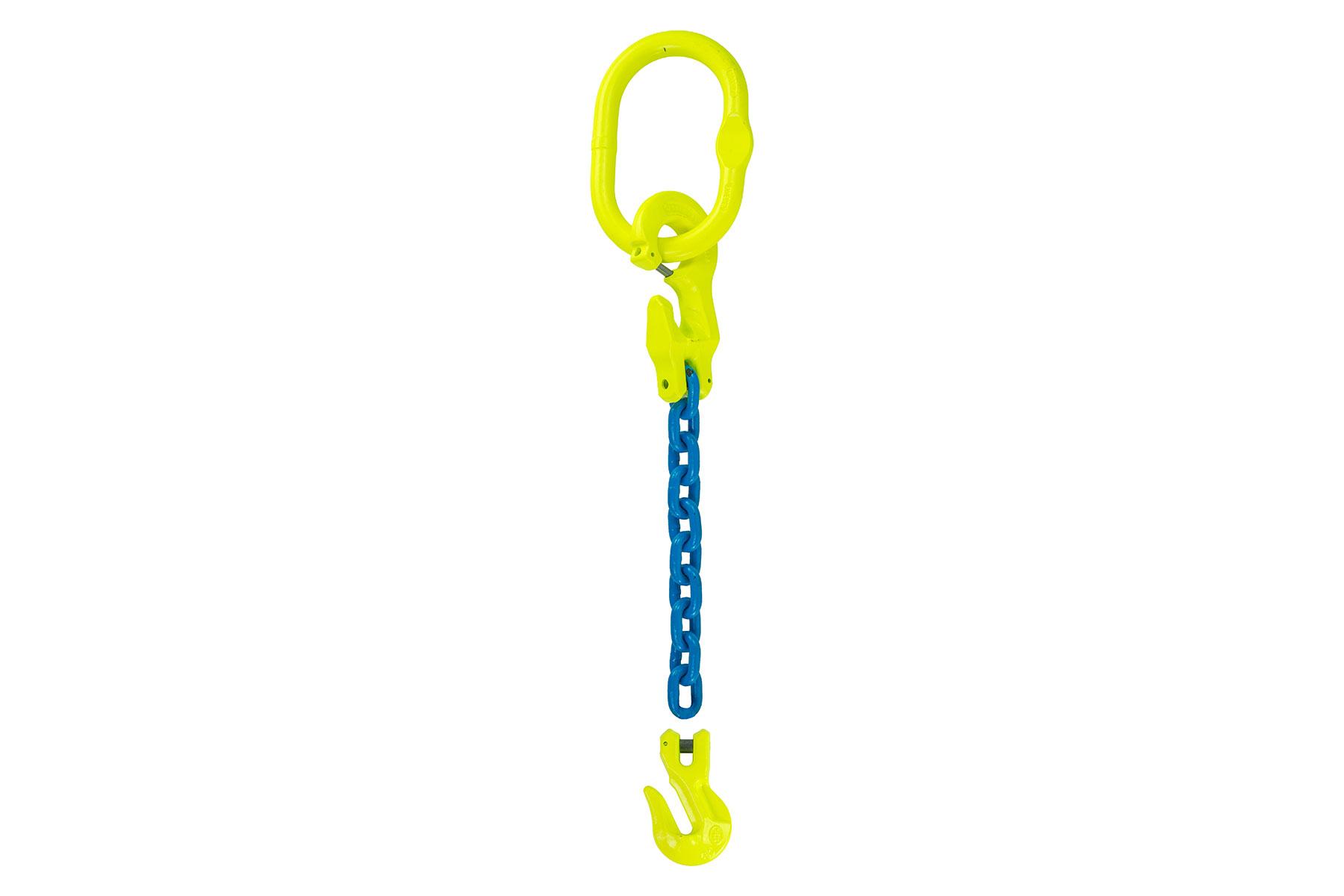

5/16" - 9,900 WLL | 8', 12", 16 | Grab Hook w/ Lock Pin |
5/16" - 9,900 WLL | 8', 12", 16 | Foundry Hook |
5/16" - 9,900 WLL | 8', 12", 16 | Safety Hook GBK |

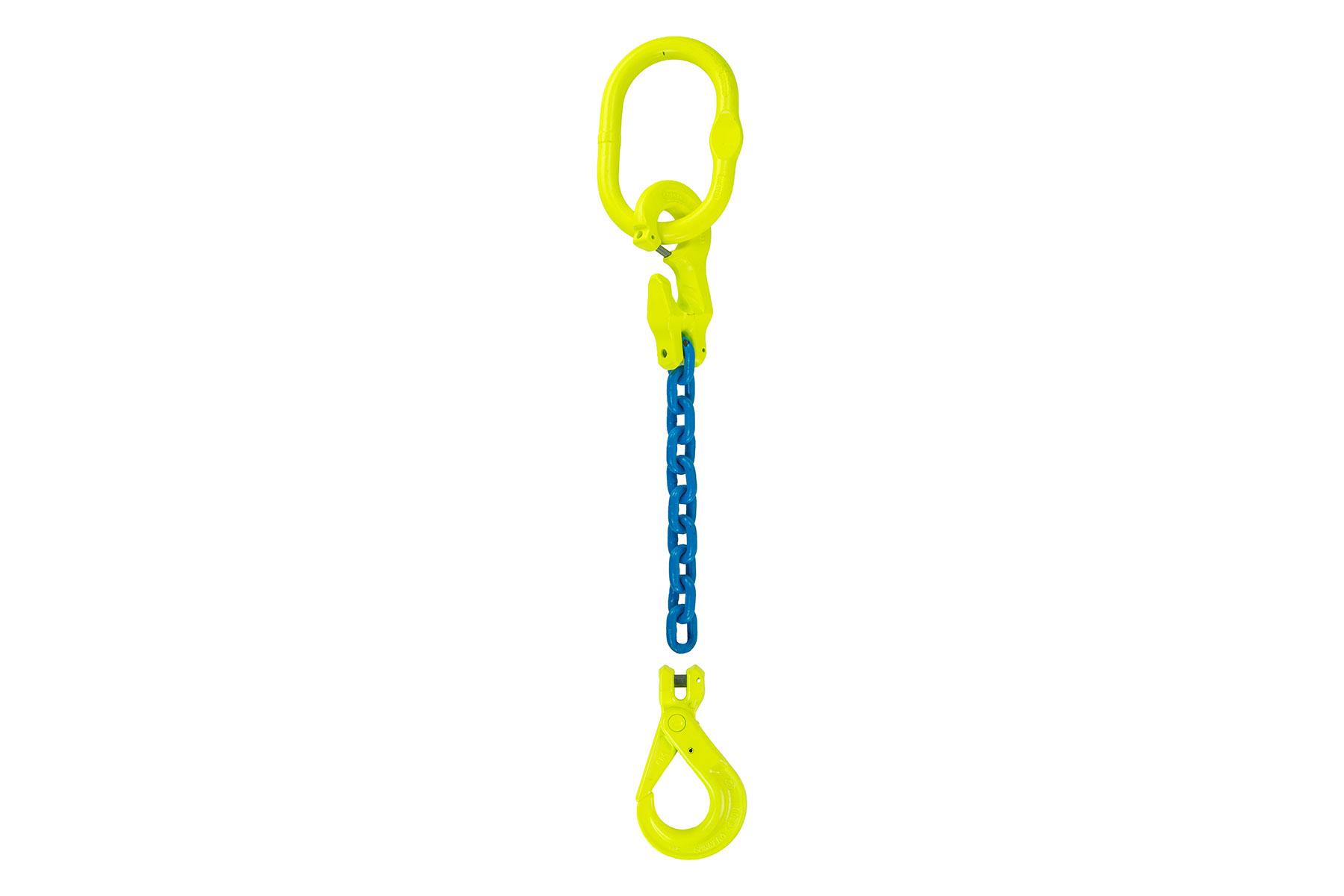

5/16" - 9,900 WLL | 8', 12", 16 | Safety Hook BKG |

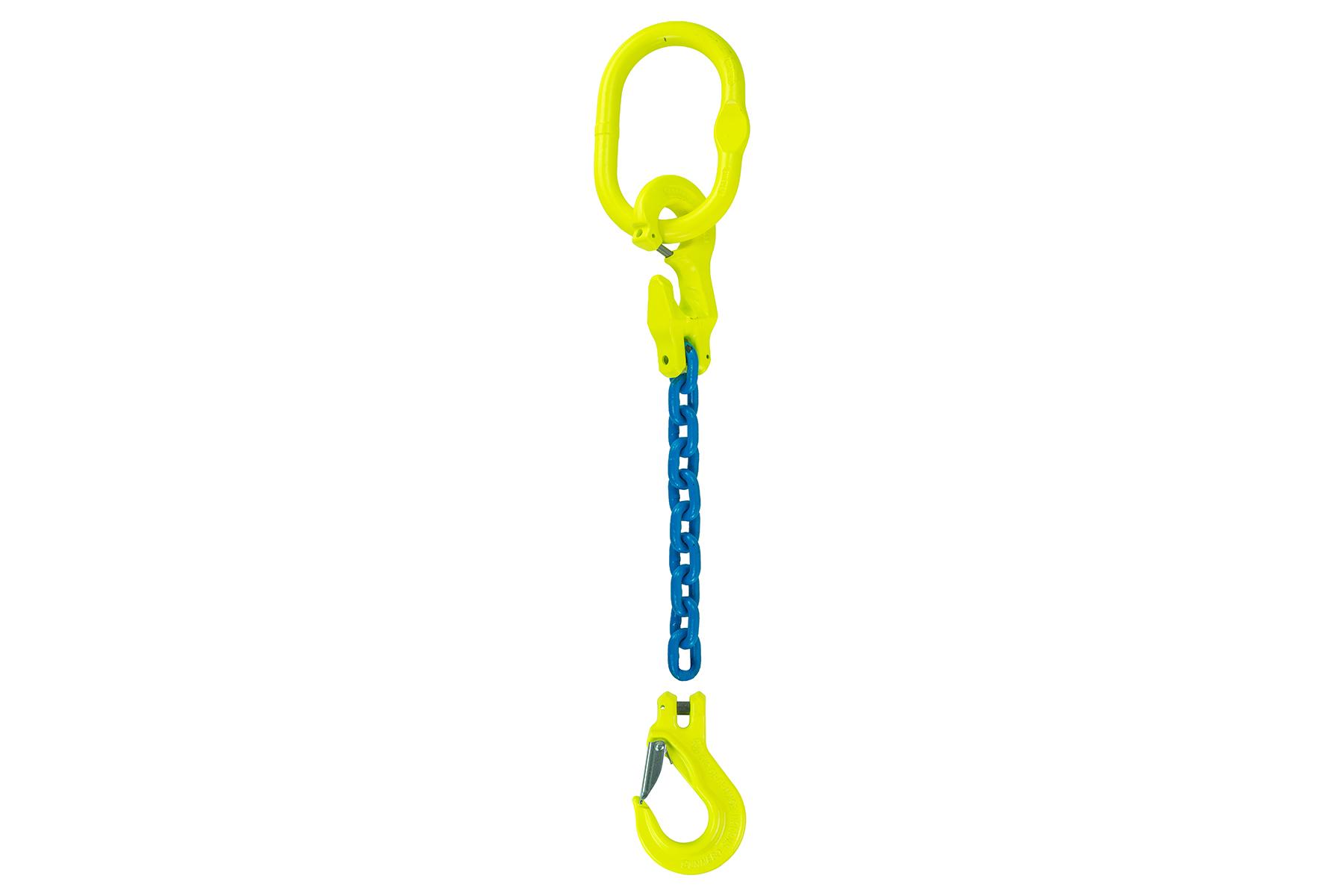

5/16" - 9,900 WLL | 8', 12", 16 | Sling Hook |
5/16" - 9,900 WLL | 8', 12", 16 | Cradle Grab Hook |

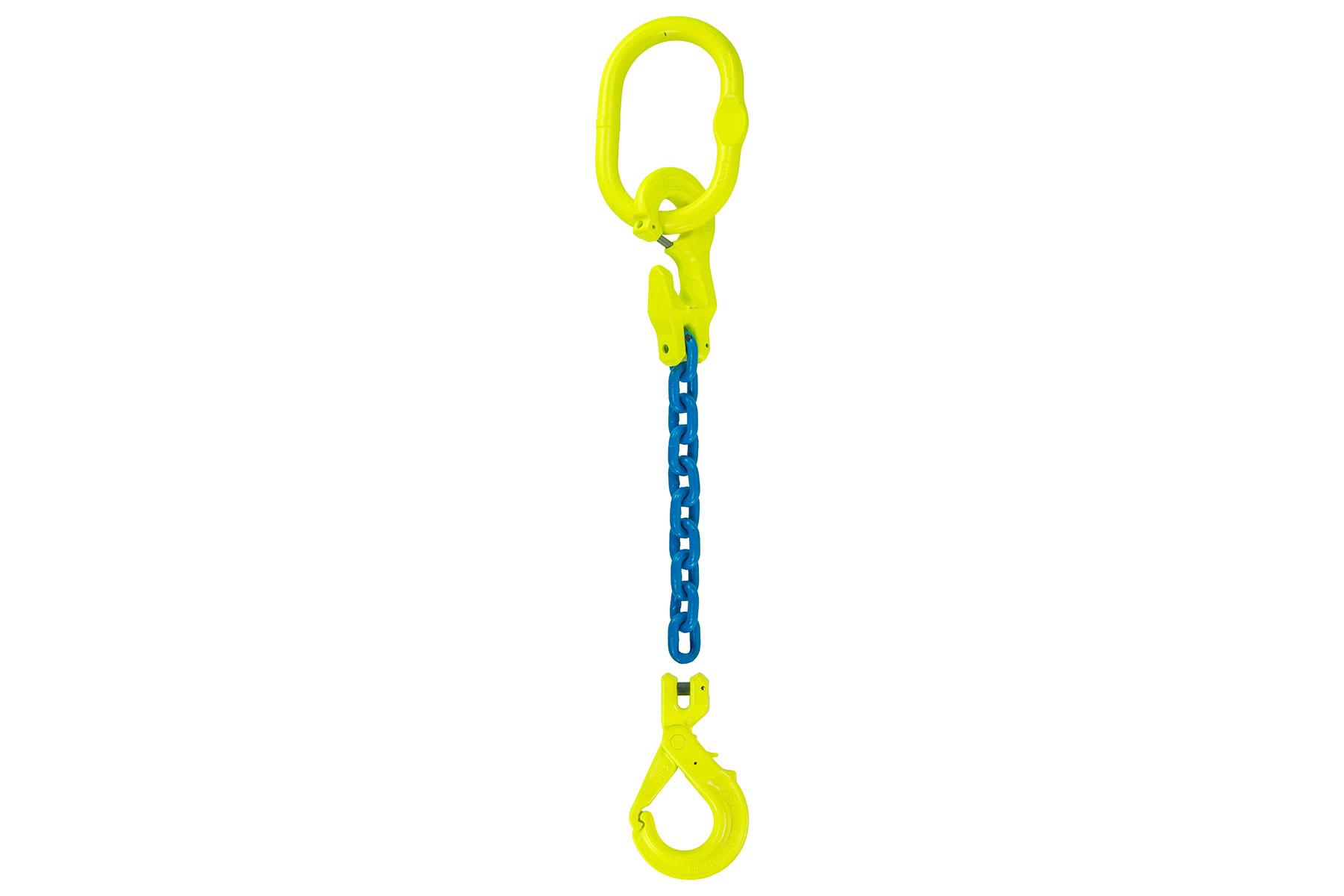

3/8" - 15,200 WLL | 8', 12", 16 | Grab Hook w/ Lock Pin |
3/8" - 15,200 WLL | 8', 12", 16 | Foundry Hook |
3/8" - 15,200 WLL | 8', 12", 16 | Safety Hook GBK |
3/8" - 15,200 WLL | 8', 12", 16 | Safety Hook BKG |
3/8" - 15,200 WLL | 8', 12", 16 | Sling Hook |
3/8" - 15,200 WLL | 8', 12", 16 | Cradle Grab Hook |

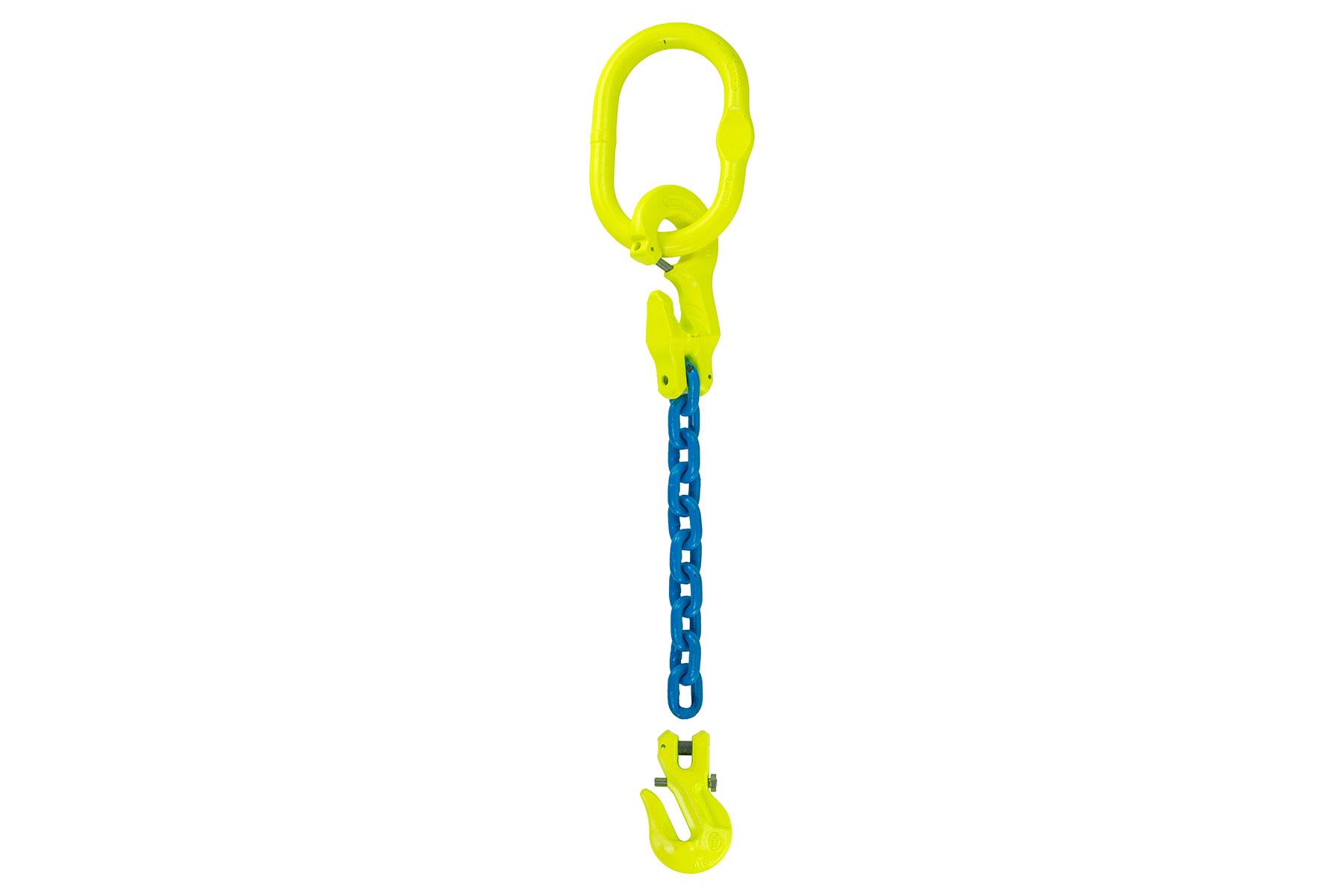

1/2" - 26,000 WLL | 8', 12", 16 | Grab Hook w/ Lock Pin |
1/2" - 26,000 WLL | 8', 12", 16 | Foundry Hook |
1/2" - 26,000 WLL | 8', 12", 16 | Safety Hook GBK |
1/2" - 26,000 WLL | 8', 12", 16 | Safety Hook BKG |
1/2" - 26,000 WLL | 8', 12", 16 | Sling Hook |
1/2" - 26,000 WLL | 8', 12", 16 | Cradle Grab Hook |

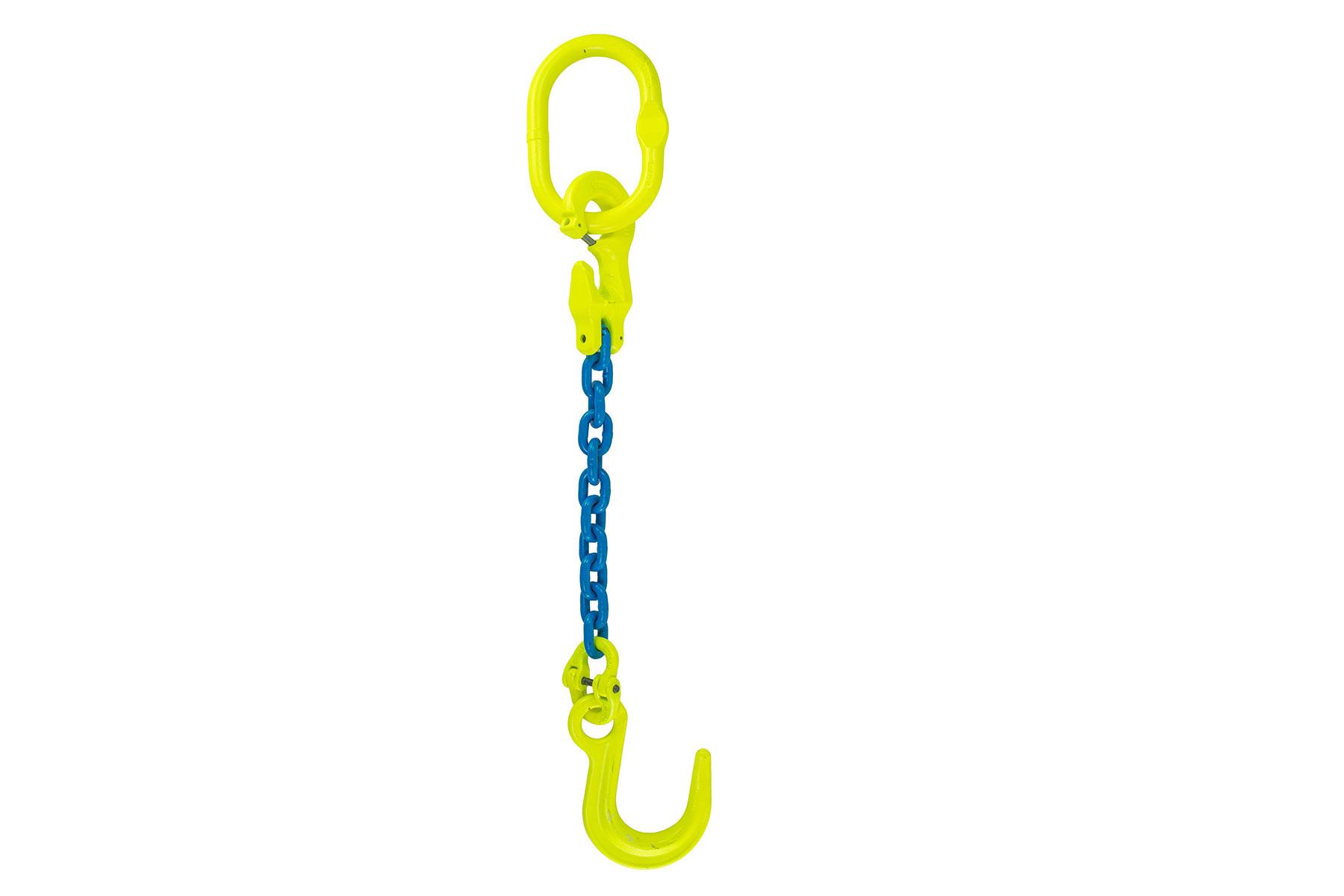

5/8" - 39,100 WLL | 8', 12", 16 | Grab Hook w/ Lock Pin |
5/8" - 39,100 WLL | 8', 12", 16 | Foundry Hook |
5/8" - 39,100 WLL | 8', 12", 16 | Safety Hook GBK |
5/8" - 39,100 WLL | 8', 12", 16 | Safety Hook BKG |
5/8" - 39,100 WLL | 8', 12", 16 | Sling Hook |
5/8" - 39,100 WLL | 8', 12", 16 | Cradle Grab Hook |
