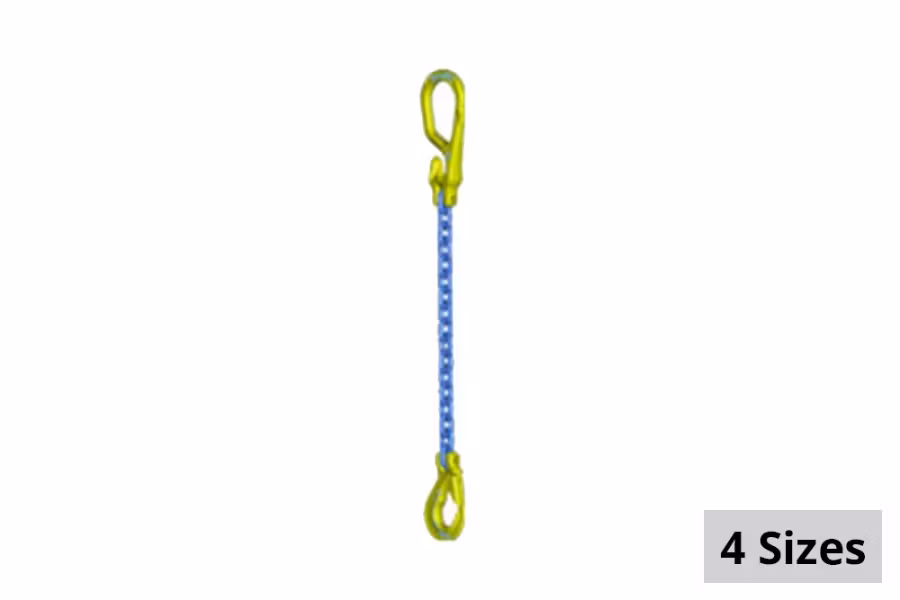

Gunnebo GrabiQ Single Leg Chain Sling

Overcome lifting challenges in construction, manufacturing and assembly with Gunnebo’s GrabIQ single leg chain sling system. GrabIQ kits from Zip’s AW Direct offer quicker, safer and simpler lifting operations with intelligent design and multiple functions in each component. Fewer components mean less weight and less expense than traditional chain slings.

Approved for overhead lifting, each sling features Grade 100 chain, which is 25 percent stronger than Grade 80 chain. Each chain assembly is up to 40 percent lighter than the competition, making them easier to use, handle and store on the jobsite or in any industrial setting. With a safety factor of 4:1, all products are proof-loaded and visually inspected with Working Load Limits (WLL) stamped on the components.

GrabIQ chain assemblies are painted safety yellow for easy identification. Chain size ranges from 5/16”- 5/8”, and the length of each leg varies between 7”-24”. Built-in shortening functions and five hook options allow for quick adjustments during lifting applications. Choose from sling, foundry, cradle grab, safety hook and grab hook with lock attachments.

Each sling kit includes a master link. Choose from the Midgrab MIG link for instant mounting, positioning and shortening on any part of the chain. The C-Grab Duo CGD master link includes two cast grab hooks at the neck of the main C hook, and the Master Grab MG link is a compact link that also allows for easy shortening and the ability to create a looped sling in a matter of seconds.

• One chain leg
• Grade 100
• Chain size: 5/16”-5/8”
• Leg lengths: 6.73”-24.57”
• Master links: Midgrab, C-Grab, Master Grab
• WLL: 5,700 lbs.-22,600 lbs.
• Shortening functions

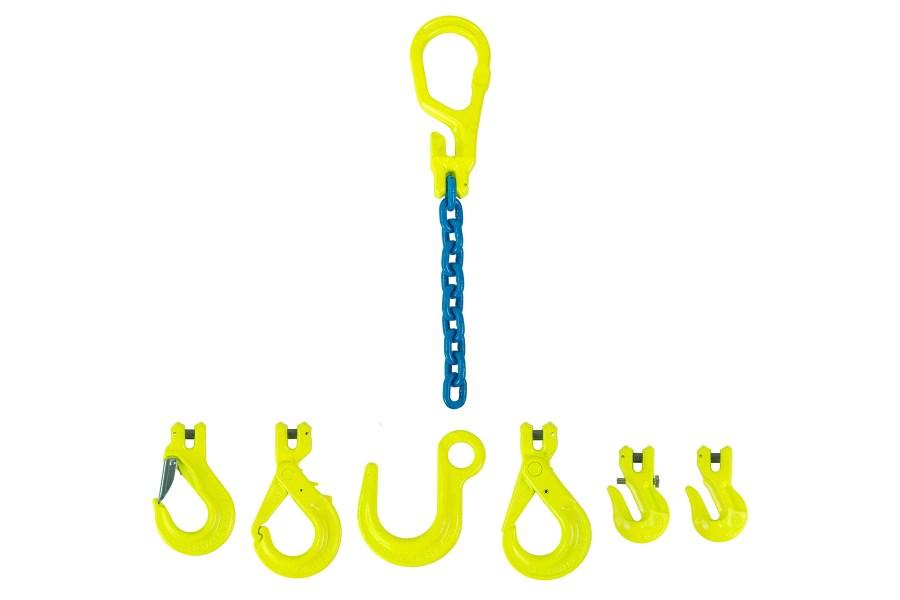

• Five hook attachment options

Available in the following sizes

Size	Length	End Fitting

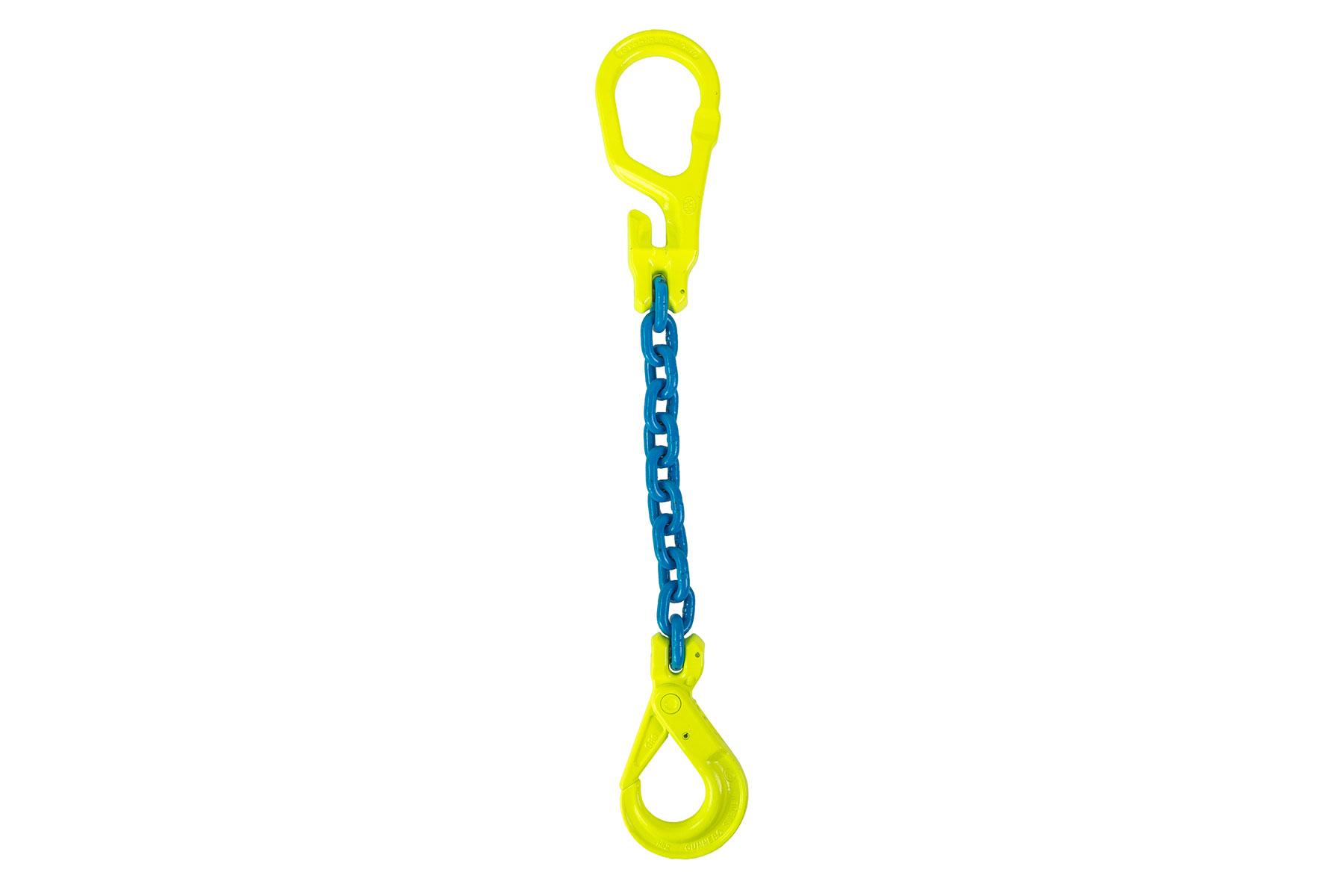

5/16" - 9,900 WLL	8', 12", 16	Safety Hook GBK

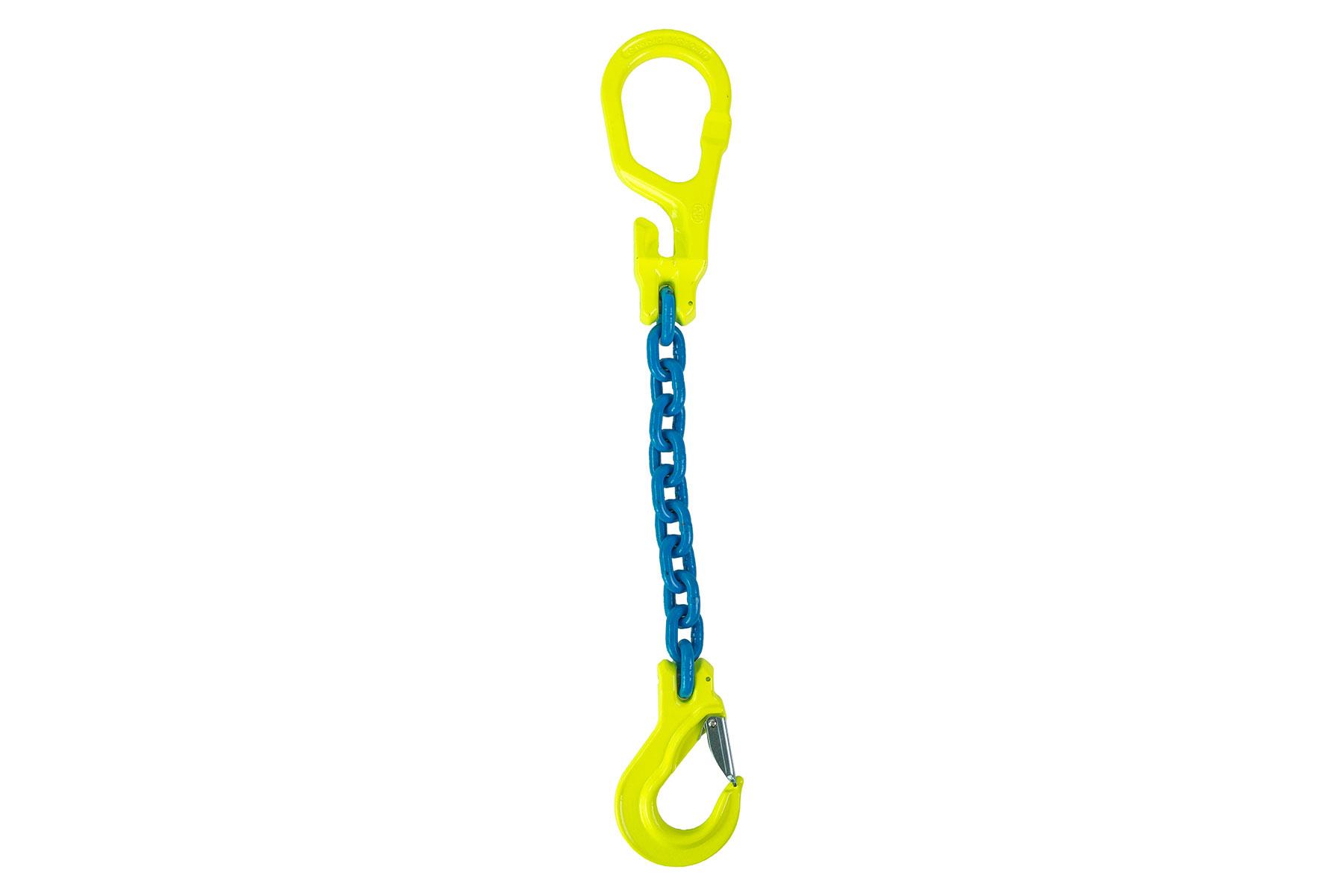

5/16" - 9,900 WLL	8', 12", 16	Sling Hook
5/16" - 9,900 WLL	8', 12", 16	Safety Hook BKG

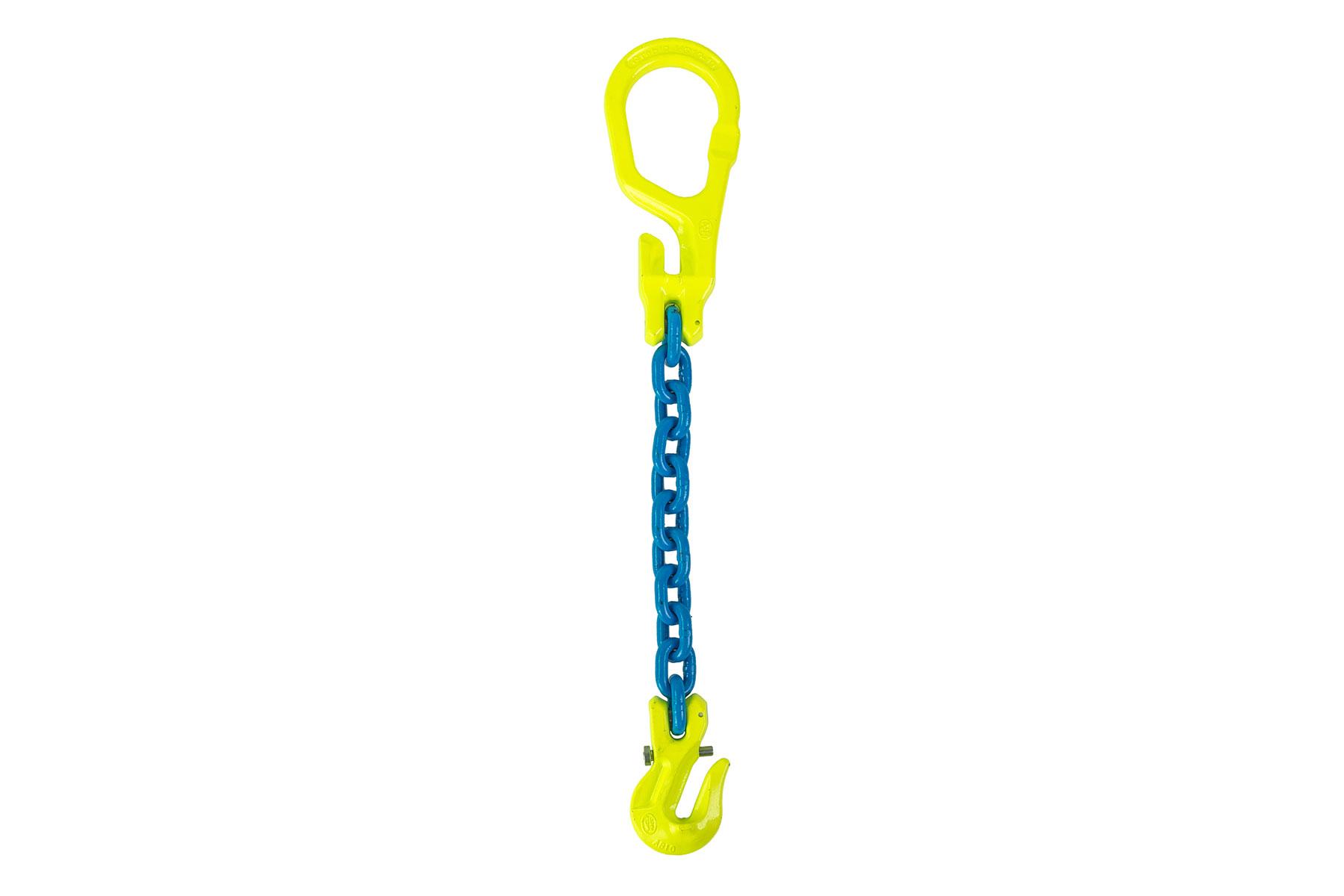

5/16" - 9,900 WLL	8', 12", 16	Grab Hook w/ Lock Pin
5/16" - 9,900 WLL	8', 12", 16	Cradle Grab Hook
5/16" - 9,900 WLL	8', 12", 16	Foundry Hook

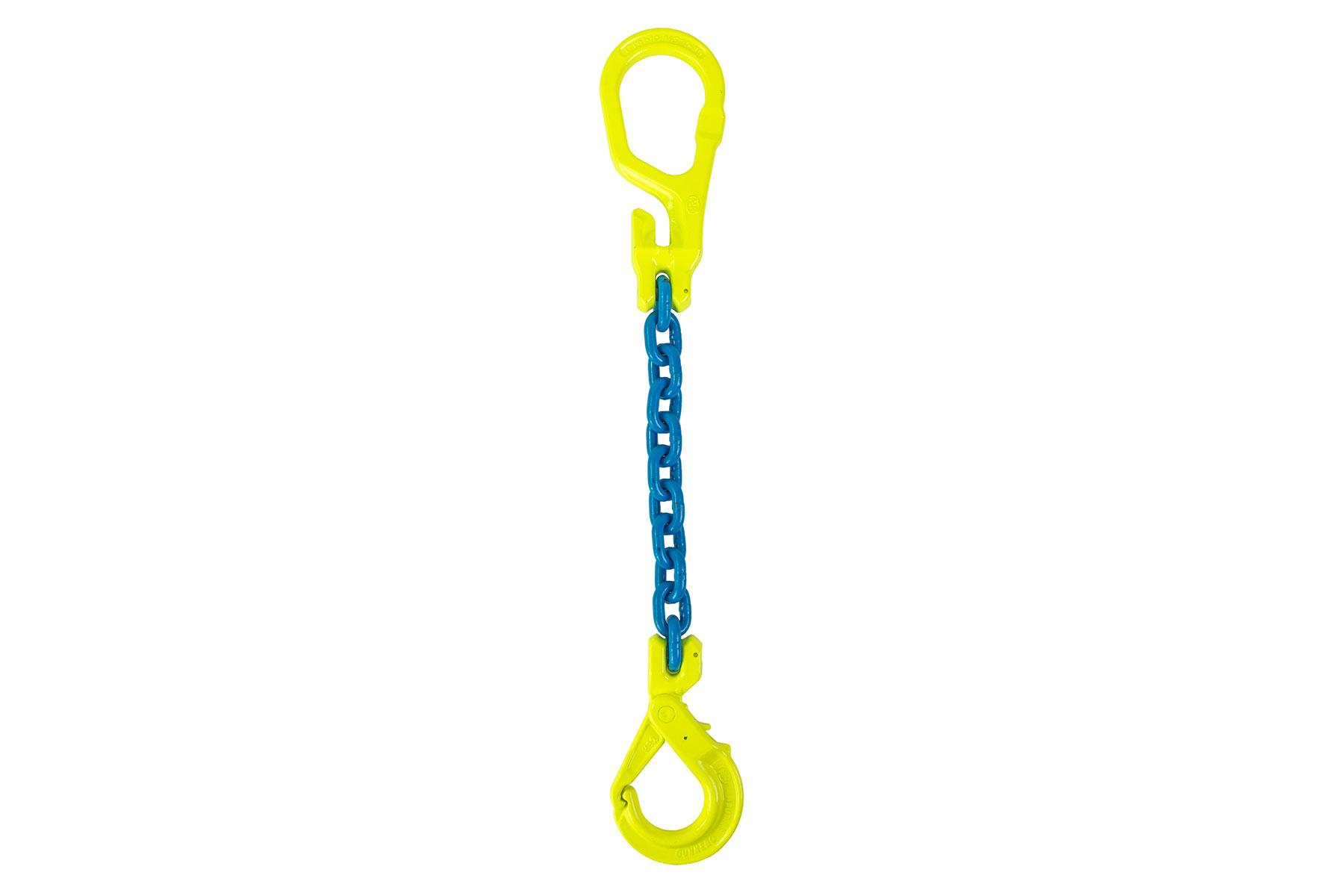

3/8" - 15,200 WLL	8', 12", 16	Safety Hook GBK
3/8" - 15,200 WLL	8', 12", 16	Sling Hook
3/8" - 15,200 WLL	8', 12", 16	Safety Hook BKG
3/8" - 15,200 WLL	8', 12", 16	Grab Hook w/ Lock Pin
3/8" - 15,200 WLL	8', 12", 16	Cradle Grab Hook
3/8" - 15,200 WLL	8', 12", 16	Foundry Hook

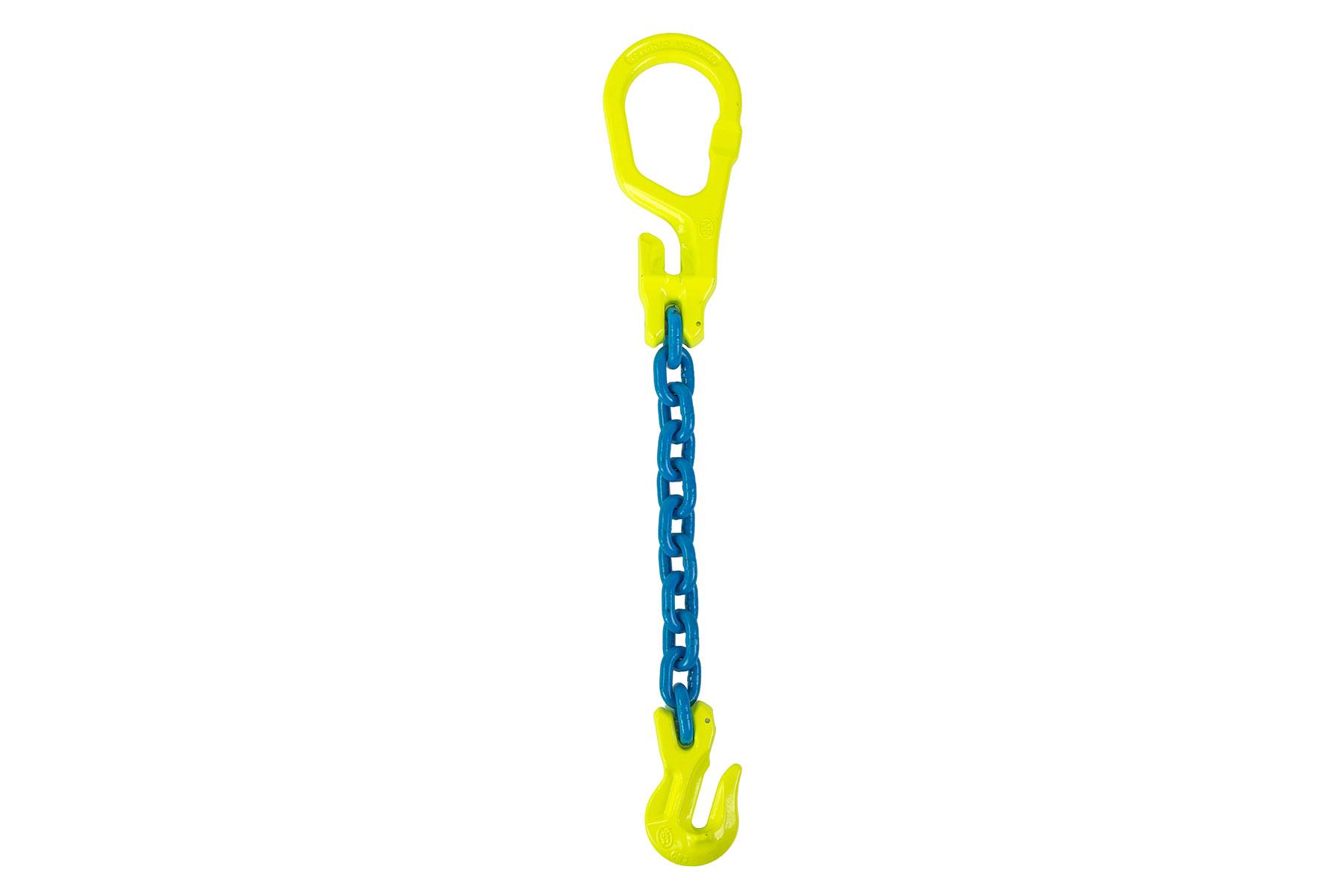

1/2" - 26,000 WLL	8', 12", 16	Safety Hook GBK
1/2" - 26,000 WLL	8', 12", 16	Sling Hook
1/2" - 26,000 WLL	8', 12", 16	Safety Hook BKG
1/2" - 26,000 WLL	8', 12", 16	Grab Hook w/ Lock Pin
1/2" - 26,000 WLL	8', 12", 16	Cradle Grab Hook
1/2" - 26,000 WLL	8', 12", 16	Foundry Hook

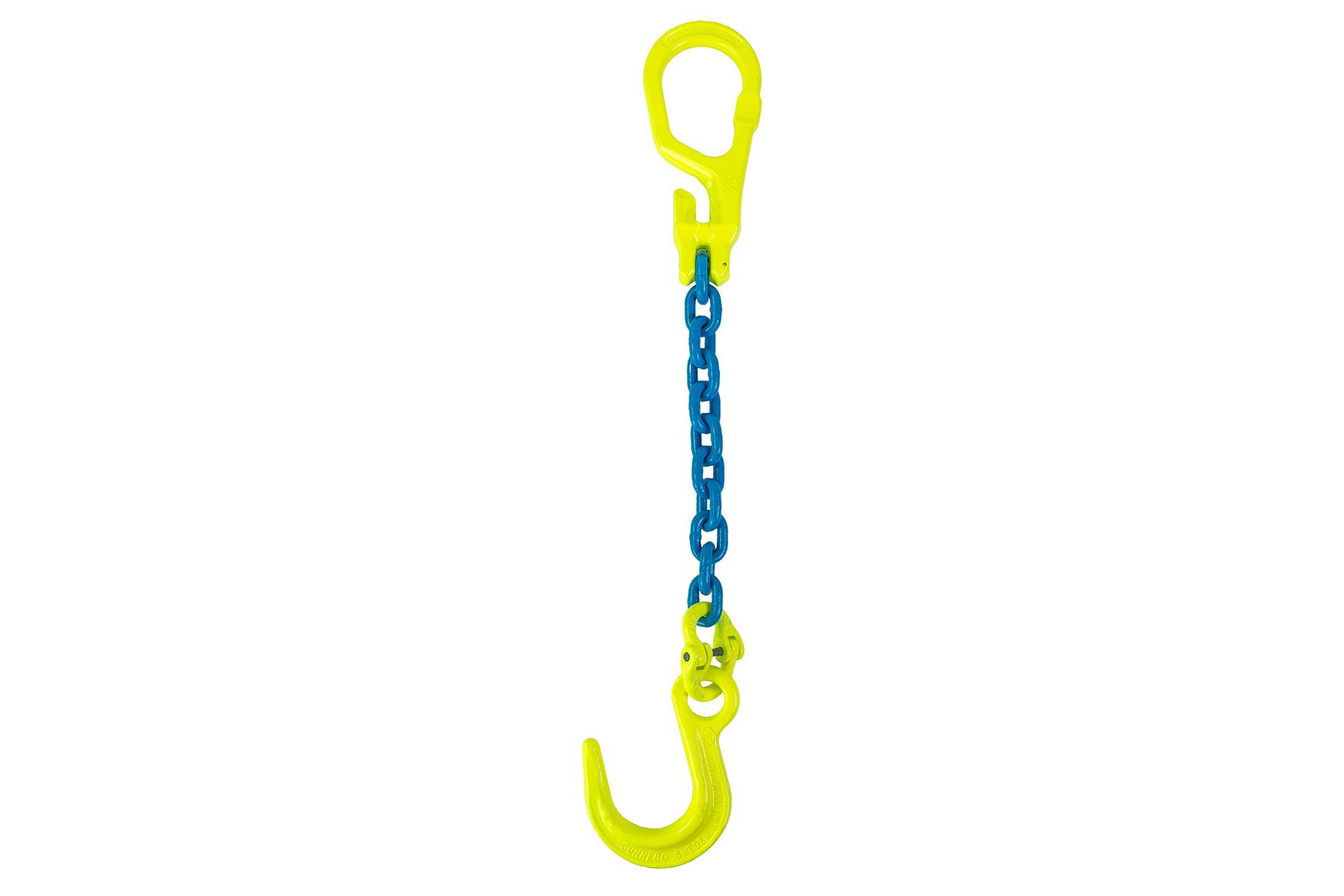

5/8" - 39,100 WLL	8', 12", 16	Safety Hook GBK
5/8" - 39,100 WLL	8', 12", 16	Sling Hook
5/8" - 39,100 WLL	8', 12", 16	Safety Hook BKG
5/8" - 39,100 WLL	8', 12", 16	Grab Hook w/ Lock Pin
5/8" - 39,100 WLL	8', 12", 16	Cradle Grab Hook
5/8" - 39,100 WLL	8', 12", 16	Foundry Hook
