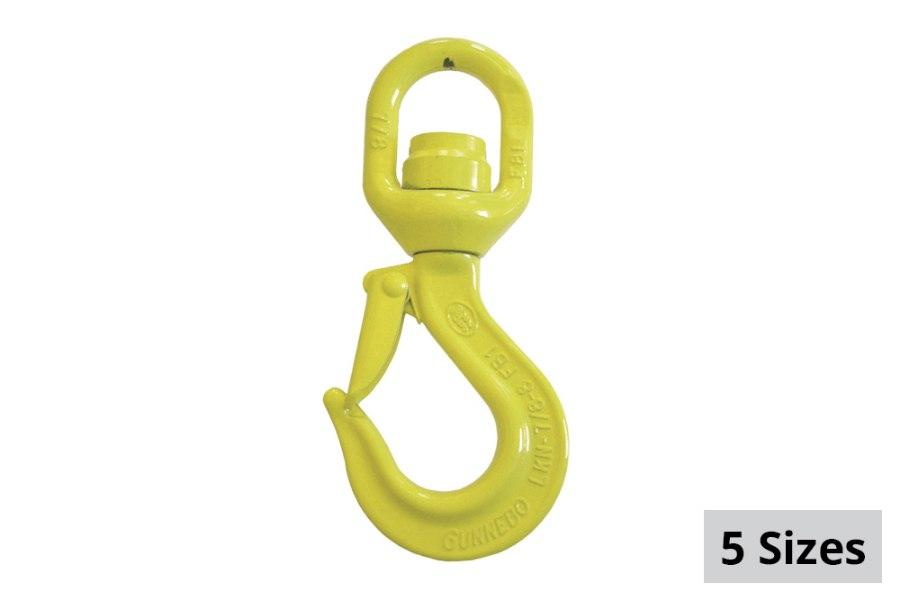

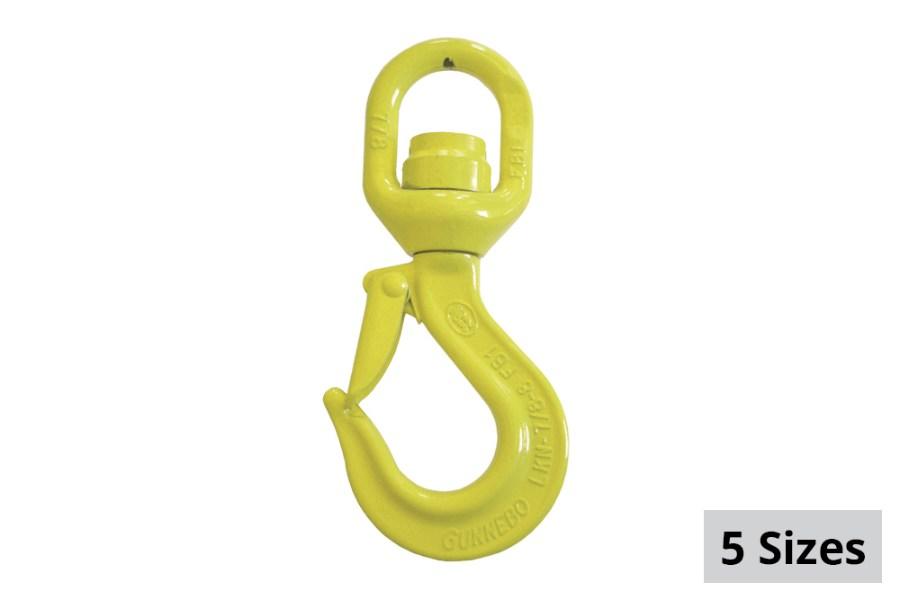

Gunnebo GrabiQ Swivel Latch Hook LKNK

Item #	GI-Z101349	GI-Z101350	GI-Z101351	GI-Z101352	GI-Z101354
Code	LKNK-7/8-10	LKNK-10-10	LKNK-13-10	LKNK-16-10	LKNK-22-10
WLL lb*	5,700	8,800	15,000	22,600	44,080
For chain dim.	9/32, 5/16	3/8	1/2	5/8	7/8
L	6.06	7.52	9.29	11.54	15.75
B	1.10	1.38	1.57	2.09	2.91
C	1.10	1.38	1.77	2.44	3.15
E	1.50	1.73	1.89	2.40	3.15
A	0.47	0.59	0.75	0.98	1.38
G	0.71	0.91	1.10	1.34	1.69
H	0.94	1.22	1.50	1.69	2.64
Weight lb	1.98	3.53	7.28	12.3	31.5
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.

Code

LKNK-7/8-10

LKNK-10-10

LKNK-13-10

LKNK-16-10

LKNK-22-10

WLL lb*

5,700

8,800

15,000

22,600

44,080

For chain dim.

9/32, 5/16

3/8

1/2

5/8

7/8

L

6.06

7.52

9.29

11.54

15.75

B

1.10

1.38

1.57

2.09

2.91

C

1.10

1.38

1.77

2.44

3.15

E

1.50

1.73

1.89

2.40

3.15

A

0.47

0.59

0.75

0.98

1.38

G

0.71

0.91

1.10

1.34

1.69

H

0.94

1.22

1.50

1.69

2.64

Weight lb

1.98

3.53

7.28

12.3

31.5

Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches.
