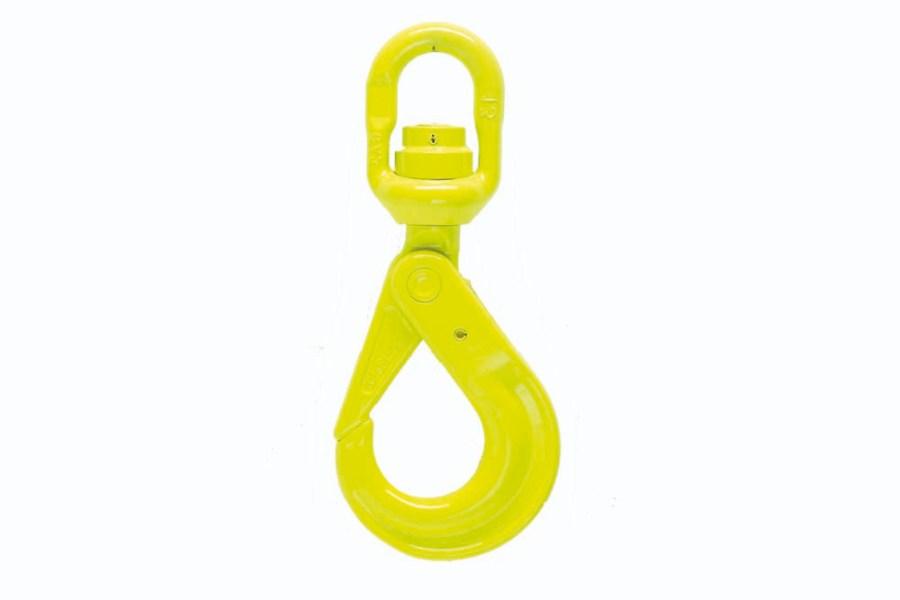

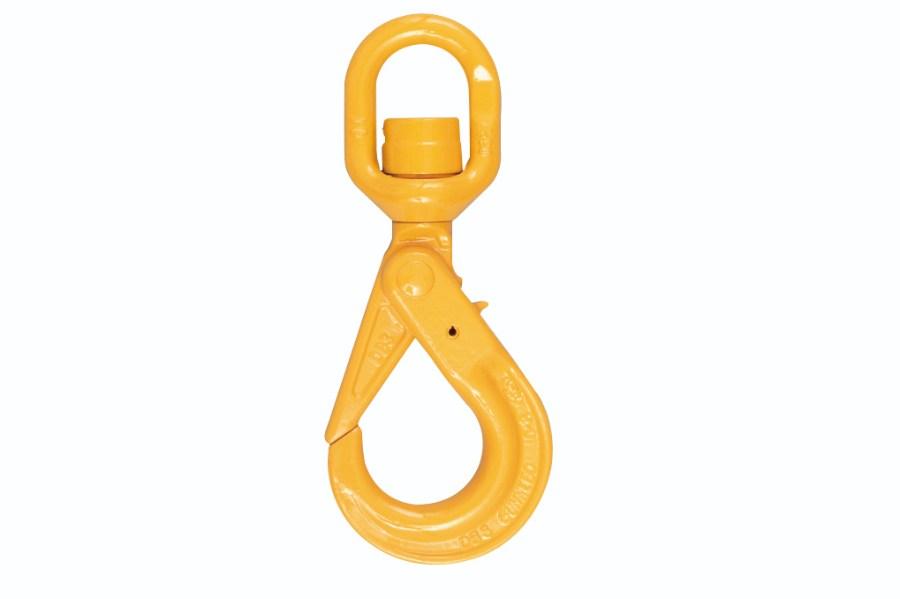

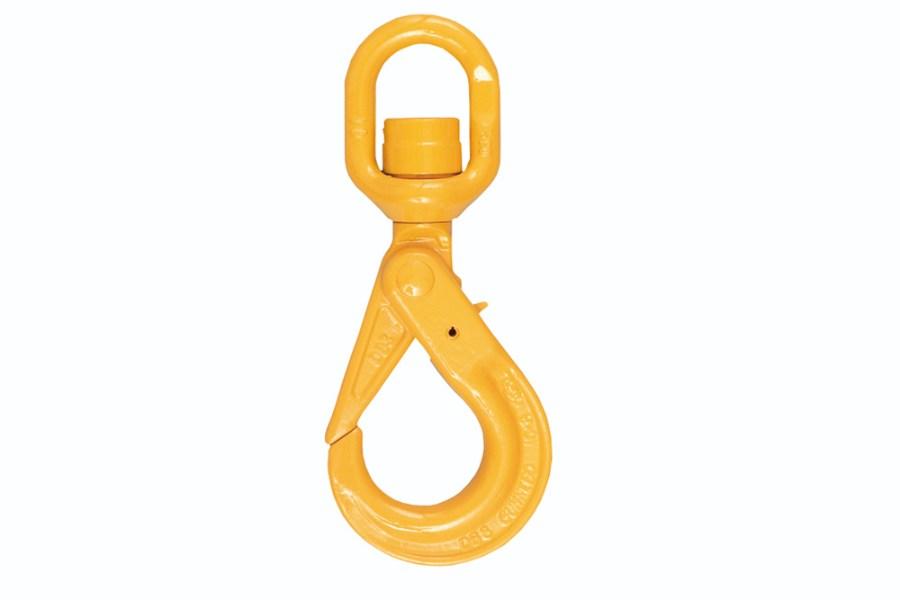

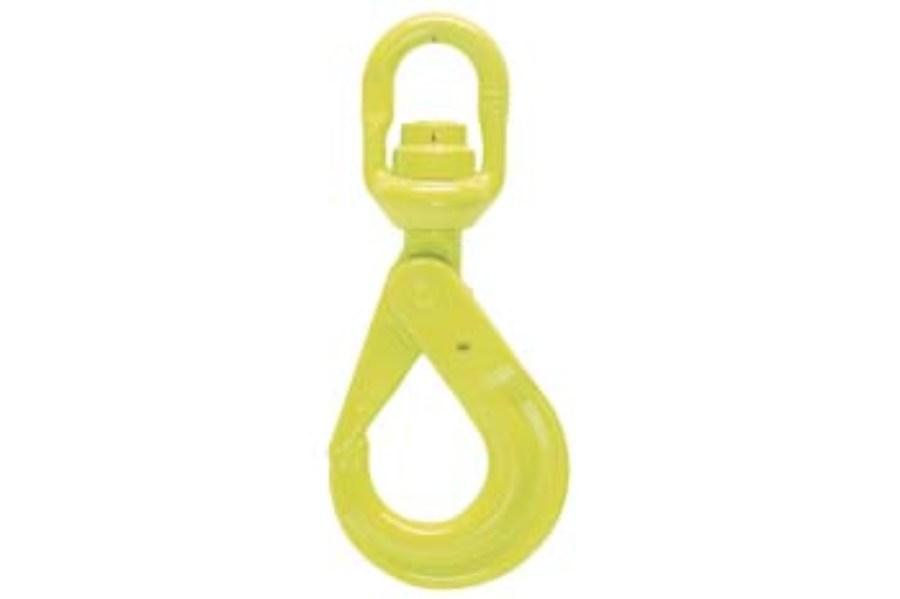

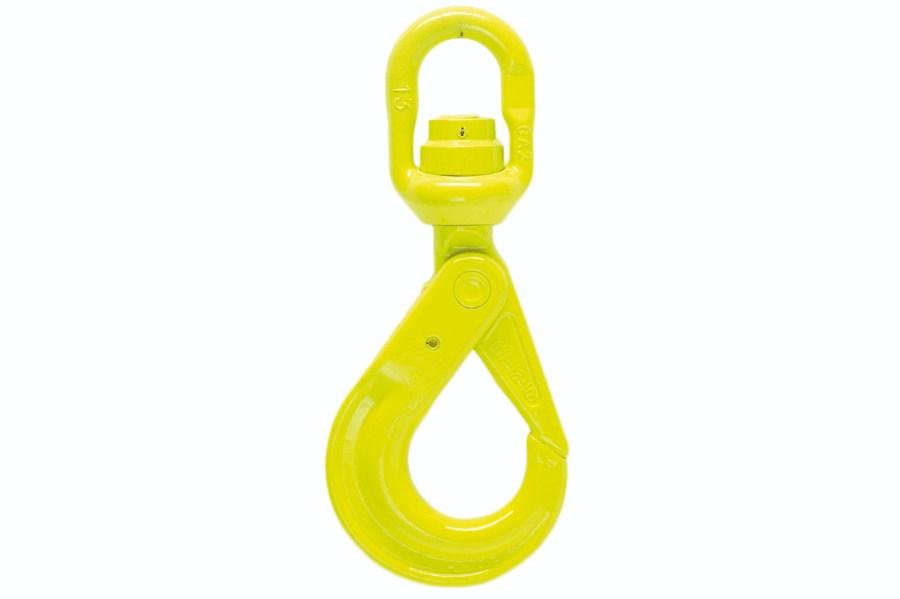

Gunnebo GrabiQ Swivel Safety Hook BKLK

Item #	GI-Z101116	GI-Z101106	GI-Z101030	GI-Z101038	GI-Z101046	GI-Z101095	GI-Z101294	GI-Z101295
Code	BKLK-6-10	BKLK-7/8-10	BKLK-10-10	BKLK-13-10	BKLK-16-10	BKLK-18/20-10	BKLK-22-10 OS	BKLK-26-10 OS
WLL lb*	3,306	5,700	8,800	15,000	22,600	35,300	44,080	60,169
L	5.87	7.20	8.58	11.02	13.35	14.49	17.17	19.13
B	1.14	1.46	1.77	2.17	2.44	2.68	3.11	3.94
C	0.94	1.06	1.38	1.77	2.44	2.36	3.15	4.33
E	1.30	1.50	1.73	1.89	2.40	2.83	3.15	4.02
A	0.43	0.47	0.59	0.75	0.98	1.22	1.38	1.77
G	0.59	0.67	0.83	1.18	1.46	1.73	1.97	2.13
H	0.83	1.02	1.22	1.57	1.97	2.44	2.44	2.68
Weight lb	1.54	2.65	4.41	8.82	16.09	25.35	37.04	57.32
Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. For larger sizes, see Classic Grade 8. *Safety factor 4:1. All dimensions in inches.

Code

BKLK-6-10

BKLK-7/8-10

BKLK-10-10

BKLK-13-10

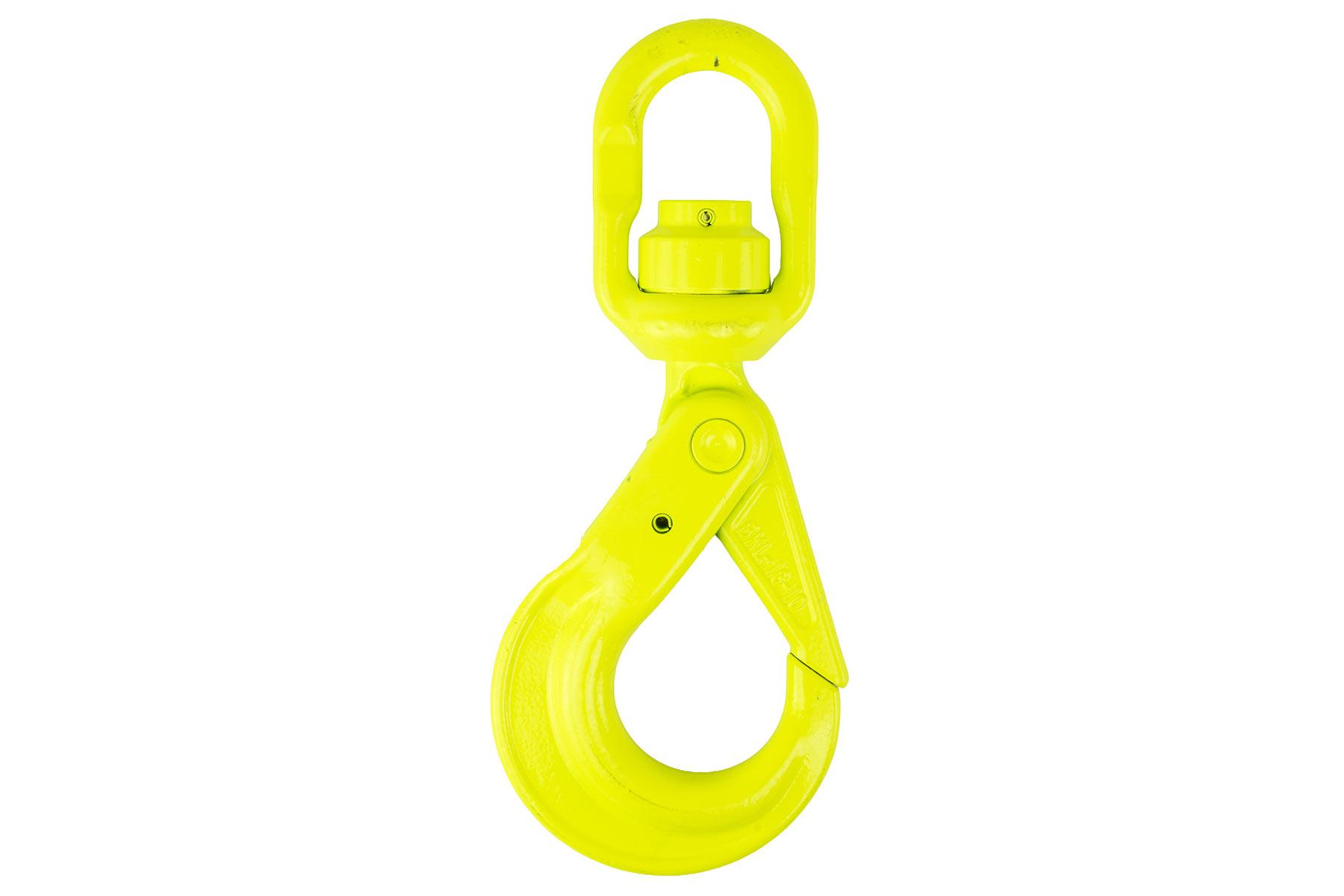

BKLK-16-10

BKLK-18/20-10

BKLK-22-10 OS

BKLK-26-10 OS

WLL lb*

3,306

5,700

8,800

15,000

22,600

35,300

44,080

60,169

L

5.87

7.20

8.58

11.02

13.35

14.49

17.17

19.13

B

1.14

1.46

1.77

2.17

2.44

2.68

3.11

3.94

C

0.94

1.06

1.38

1.77

2.44

2.36

3.15

4.33

E

1.30

1.50

1.73

1.89

2.40

2.83

3.15

4.02

A

0.43

0.47

0.59

0.75

0.98

1.22

1.38

1.77

G

0.59

0.67

0.83

1.18

1.46

1.73

1.97

2.13

H

0.83

1.02

1.22

1.57

1.97

2.44

2.68

Weight lb

1.54

2.65

4.41

8.82

16.09

25.35

37.04

57.32

Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. For larger sizes, see Classic Grade 8. *Safety factor 4:1. All dimensions in inches.
