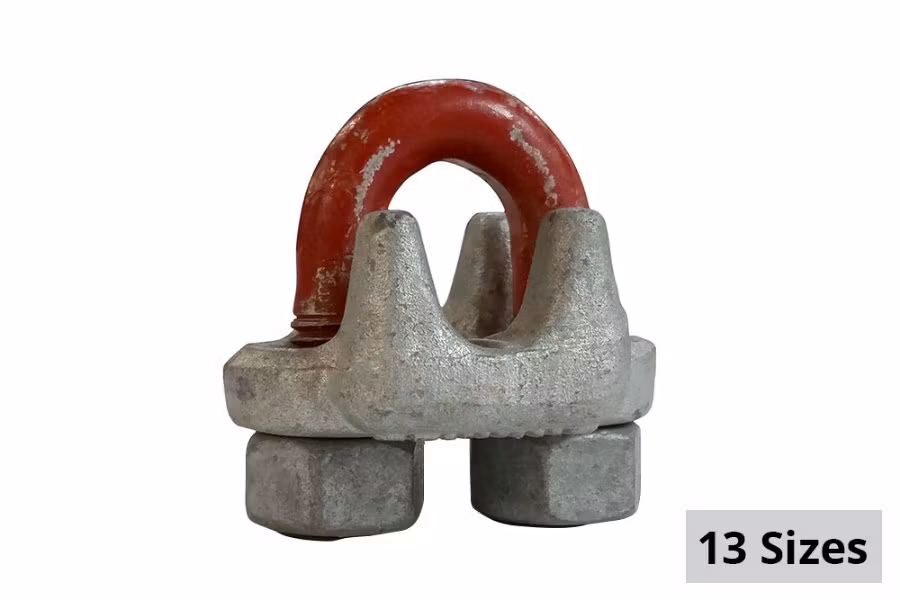

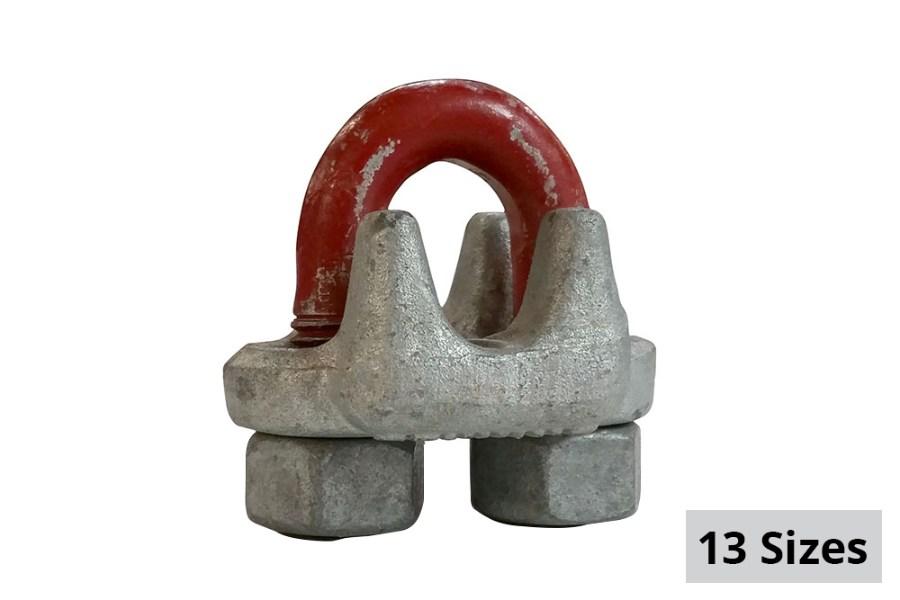

All-Grip Wire Rope Clips

Whether you're forming a wire rope eye or connecting two wires together, you can rely on this drop-forged and galvanized wire rope clip from All-Grip. Not only is it extremely durable, due to how it's made, it also resists corrosion and rust. To top that durability off, the product identification code is stamped at the base. With it, you can trace the wire rope all the way back to when it was made.

These wire rope clips come in 13 different sizes. This ensures that no matter how big the job is, you'll find a size that will work for you. This adds an extra layer of convenience.

• Each base has a Product Identification Code (PIC) for material traceability, the name CROSBY or CG and a size forged into it.
• Based on the catalog breaking strength of wire rope, Crosby wire rope clips have an efficiency rating of 80% for 1/8" to 7/8" sizes and 90% for sizes 1" to 3-1/2".
• Galvanized to resist corrosive and rusting action.
• Sizes 1/8" through 2-1/2" and 3" have forged bases.
• All Clips are individually bagged or tagged with proper application instructions and warning information.
• Clip sizes up through 1-1/2" have rolled threads.
• Meets or exceeds all requirements of ASME B30.26, including identification, ductility, design factor, proof load and temperature requirements.
• Meets other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.

Available in the following sizes

Item #	Size
WS-10257	1-1/8
10275	1-1/4
10079	5/16"
10097	3/8"
10293	1-3/8"
CR-1010131	7/16" - 1/2"
10113	7/16"
10131	1/2"
10319	1-1/2"
10159	9/16"
10177	5/8"
10195	3/4"
10211	7/8"
10239	1"
