McKissick Evolution Series Snatch Blocks Miller Exclusive

Leave a Review

Shop all McKissick products

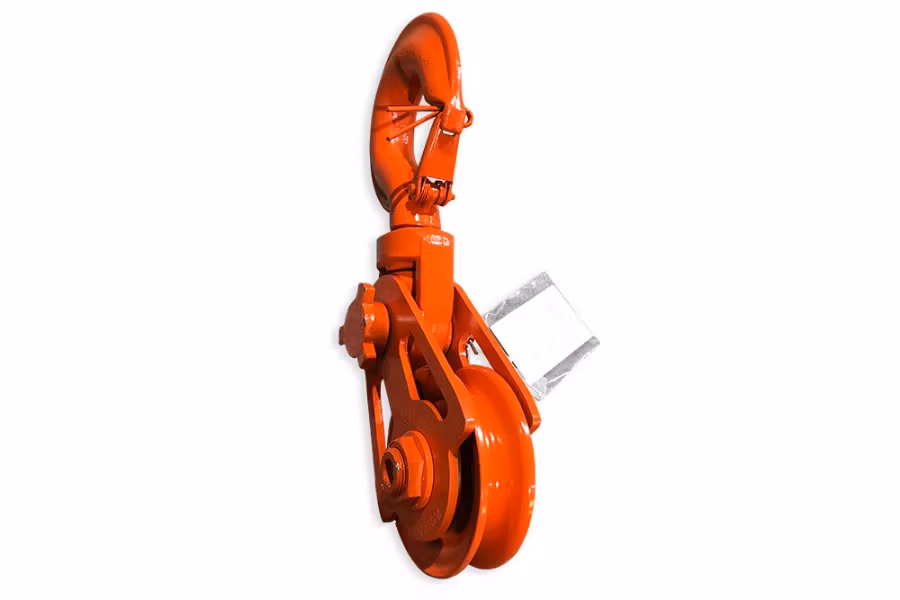

Picture of McKissick Evolution Series Snatch Blocks Miller Exclusive

Choose SIZE *: 6" - 8 Ton WLL

6" - 8 Ton WLL

Not available

8" - 12 Ton WLL

8" - 12 Ton WLL

Not available

8" - 15 Ton WLL

8" - 15 Ton WLL

Not available

SKU: SNATCH-BLOCK-EVO

Price: $1,363.99–$2,262.99

Qty:

Go Straight to Checkout

Qualifies for Free Shipping
with $199.00 minimum order

Description

The 420 Champion Series snatch blocks from McKissick are perfect for heavy duty rigging operations because they greatly improve your winches function and pulling power. The hooks and side plates are made from forged alloy steel that is also heat treated. This makes the blocks exceptionally durable while keeping them as light as possible. Each of these sizes will fit a 3/4" - 7/8" wireline. The opening feature permits the insertion of a rope line while the block is suspended from a gin-pole. The side plates on these snatch blocks have been designed to eliminate the possibility of a rope jamming.

All parts are forged
Furnished with bronze bushings
Pressure lube fittings
Blocks furnished with dual rated Wireline sheaves
Fatigue rated
All sizes are RFID Equipped

Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements.

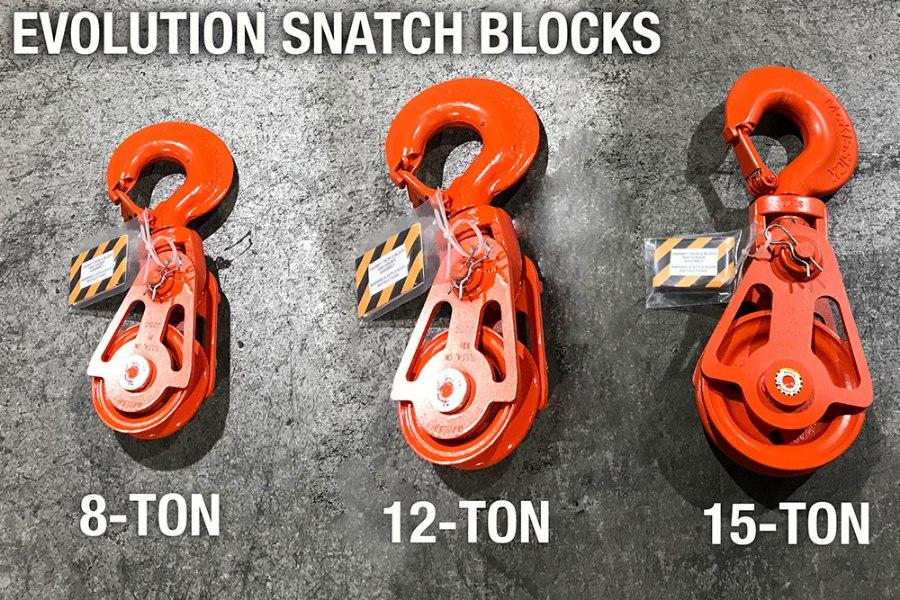

Available in the following sizes

Item #	Sheave Size	WLL	Wire Rope Size
MK169374	6"	8 Ton	5/8" - 3/4"
MK169418	8"	12 Ton	3/4" - 7/8"
MK110221	8"	15 Ton	3/4" - 7/8"

Shipping & Returns

Expedited orders must be placed by 12 p.m. CST. Items under 110 lbs ship via standard parcel (UPS Ground). Items 110–150 lbs may ship via ground or truck freight depending on size and destination.
Larger or heavier items ship via truck freight, which may require additional delivery time.

Please inspect all shipments within 10 days of delivery. Return requests must be submitted within 45 days.

For full details, view our Shipping & Returns Policy.

Learn More

Product Information

Item #	MFG #	Size
SNATCH-BLOCK-EVO	SNATCH-BLOCK-EVO	--
50005568	50005568	8" - 15 Ton WLL
50005567	50005567	8" - 12 Ton WLL
50005566	50005566	6" - 8 Ton WLL
