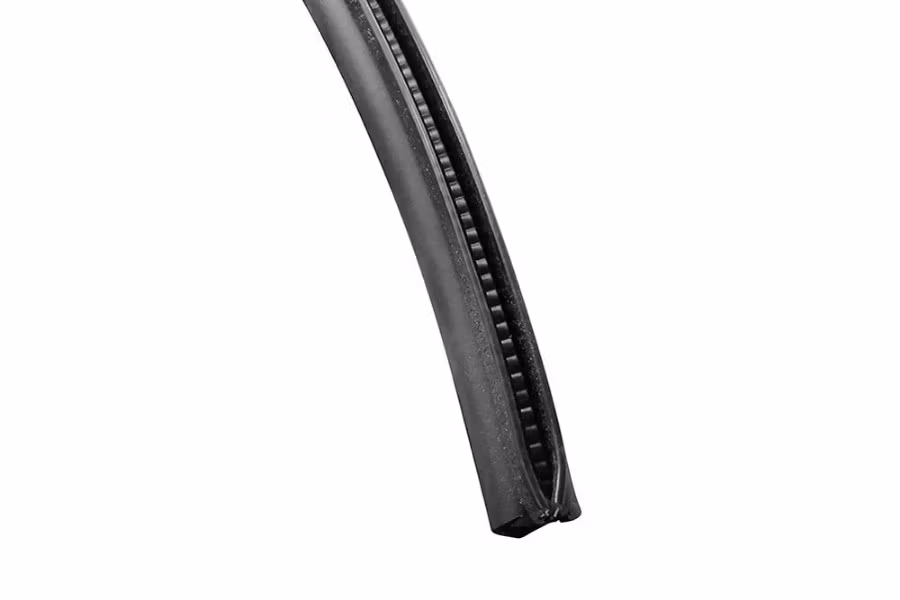

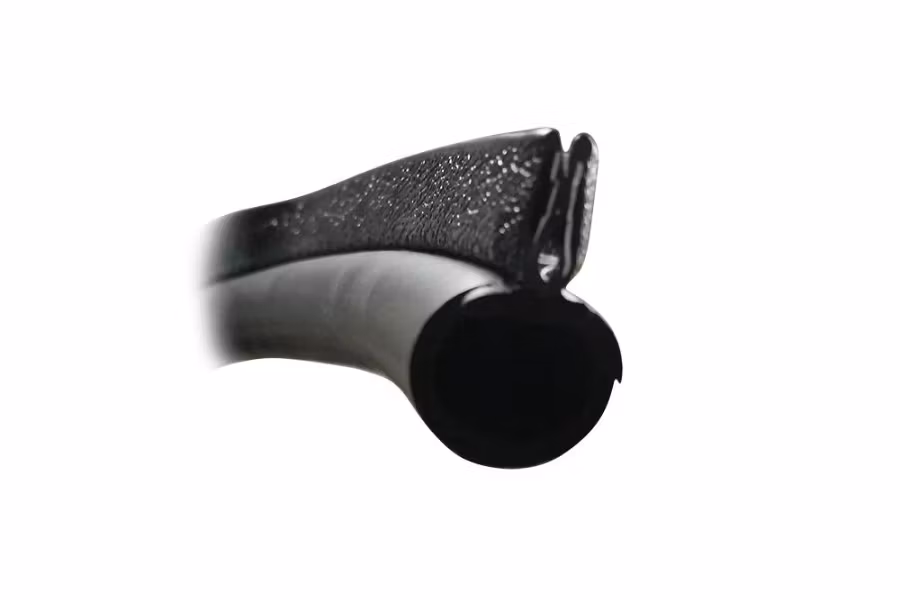

Trim-Lok Century and Vulcan Wrecker 1/4" Thick Trim Seal

Trim-Lok's bulb trim seals are manufactured from a flexible PVC trim with an attached EPDM sponge rubber tubing, ensuring a safe, secure seal for a variety of applications. With strong gripping tongues and resilient design, Trim-Lok's trim seals and bulb gaskets are sure to stay in place, even in extreme temperatures and erratic weather conditions. Regardless of the application, our extruded rubber bulb seals will seal and protect against weather damage so your products won't be affected by rain, snow, wind, or extreme heat. They are the product of choice for the automotive, marine, and transportation industries. It is used on the body assembly of Century and Vulcan wreckers.

With strong gripping power, superior flexibility, weather resistance, and a professional finish, there are plenty of product highlights that set Trim-Lok's bulb seals apart from other trim seal options available on the market. If you're looking for a durable EPDM bulb seal that will protect boats, automobiles, or trucks from unnecessary damage, look no further than Trim-Lok. This part can be used to replace Part Number 12-0306780.

• Sold by the foot, so each quantity represents 1 foot (example: quantity of 1 = 1 foot, quantity of 2 = 2 foot, etc.)
• See the brochure tab for the parts schematics
• Product Dimensions: 12"L x 1"H x .5"H
• Supplier part number: 7100B3X1/4C

Specifications

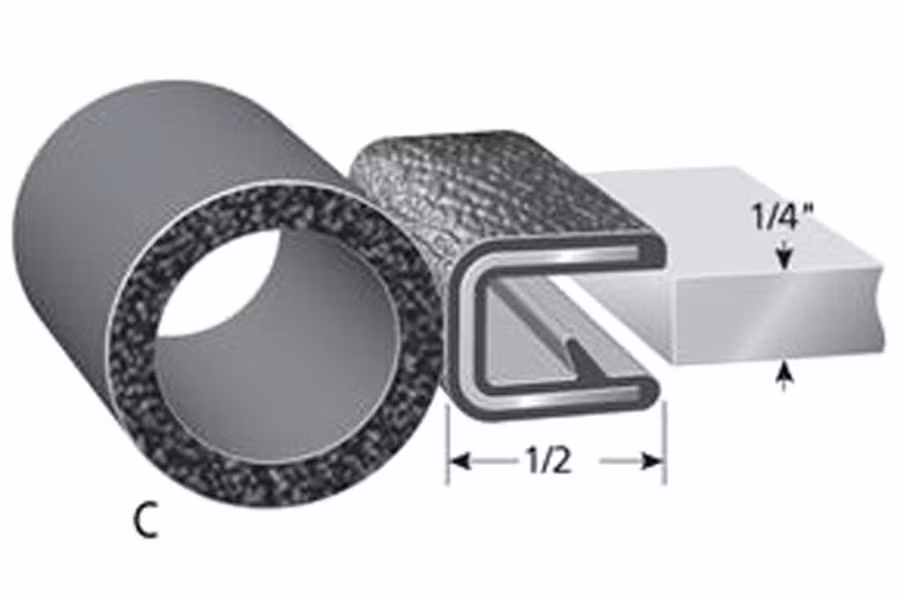

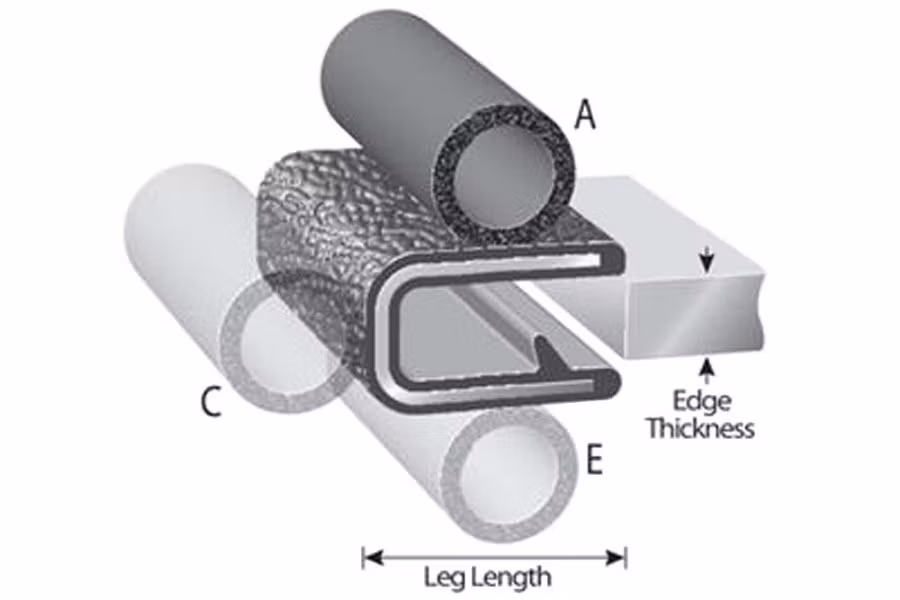

• Bulb size: 7- .750"
• Edge thickness: 1/4"
• Leg length: 1/2"
• Style: 1- single tongue
• Location: C
• Color: black
• Texture: pebble texture
• Resistance to: ozone, water absorption, sunlight aging, and low temperature
• Temperature rating: -20°F to 158°F
• Outer coating material: Poly Vinyl Chloride (PVC) 85 Durometer Shore A
• Internal metal clip materials: aluminum - 3004 H38P and steel - CRS SAE 1010, Rockwell B, 75-85 Durometer
• Bulb material: custom formulated EPDM sponge rubber

Fits:

• Century Express - 300 Series Modular (06/2007 - Current)
• Century Modular 400 & 600 (01/2009 - Current)
• Century Tacom MR30
• Vulcan Modular 807 (10/2007 - Current)
• Vulcan Modular 880 / 890 (06/1999 - Current)
