Cylinder and Pin Replacements

This is a 1" Heavy Duty extended retaining / snap ring that is used on the boom and underlift of wreckers.

This Seal Kit from Miller Industries is used on the Bed Tilt Cylinder

This is the Wheel Lift Tilt Cylinder Lower Pin for the Vulcan 806 and Vulcan 807 Auto Grip light duty wreckers by Miller Industries. This pin goes through the rod end of the tilt cylinder. This pin attaches the tilt cylinder to the wheel lift outer boom weldment. To see which specific wrecker models this pin will fit please see Features below. To view the part schematics click on the Brochure tab.

This is the Wheel Lift Tilt Cylinder Upper Pin for the Vulcan 806 and Vulcan 807 Auto Grip light duty wreckers by Miller Industries. This pin goes through the base end of the tilt cylinder. This pin attaches the tilt cylinder to the wrecker outer boom weldment. To see which specific wrecker models this pin will fit please see Features below. To view the part schematics click on the Brochure tab.

This is the Wrecker Boom Lift Cylinder Pin for the Holmes 440SL, Vulcan 805, and Vulcan 810 Series light duty wreckers by Miller Industries. This pin goes through the base end of the lift cylinder. This pin connects the boom lift cylinder to the subframe weldment. To view part schematics click on the Brochure tab.

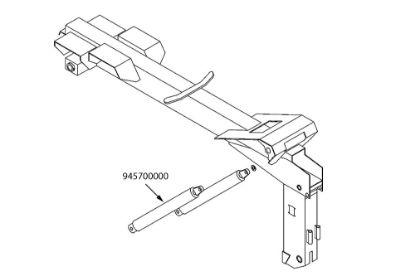

This is the Wrecker Boom Lift Cylinder on the Holmes 440SL, Vulcan 810 Intruder, Vulcan 812 Intruder, and the Vulcan 810 Power Tilt light duty wreckers by Miller Industries. This cylinder has a 3.5" bore with a 10.44" stroke. This lift cylinder connects to the subframe weldment and to the outer wrecker boom weldment. This is the cylinder that raises the boom of the wrecker up and down. This lift cylinder is also referred to as the boom elevation cylinder. To see which specific models this cylinder will fit please see Features below. To view part schematics click on the Brochure tab.

This is the Wheel Lift Tilt Cylinder Lower Pin on the Vulcan 880 / 890 Series and the Vulcan 896 / 897 Series light duty wreckers by Miller Industries. This pin is also used to attach the wrecker boom lift cylinder to the subframe weldment on the Vulcan 896 / 897 Series wrecker. To see which specific wrecker models this pin will fit please see Features below. To view the part schematics click on the Brochure tab.

This is a 1" Snap Ring by Miller Industries. This snap ring is used on the wheel lift extend cylinder pin. This snap ring secures the pin in place. To view the part schematic click on the Brochure tab.

This is the Wheel Lift Tilt Cylinder Lower Pin for the Vulcan 810 Intruder light duty wrecker by Miller Industries. This pin goes through the rod end of the tilt cylinder. This pin attaches the wheel lift tilt cylinder to the wheel lift outer boom weldment. To view the part schematic click on the Brochure tab.

This is the Wheel Lift Tilt Cylinder Lower Pin for the Vulcan 812 Intruder and the Vulcan 810 Power Tilt light duty wreckers by Miller Industries. This pin goes through the rod end of the tilt cylinder. This pin attaches the tilt cylinder to the wheel lift outer boom weldment. To see which specific wrecker models this pin will fit please see Features below. To view the part schematics click on the Brochure tab.

This is the Wheel Lift Extend Cylinder Rear Pin for the Vulcan 800 Series light duty wreckers by Miller Industries. This includes the 880 / 890 Series, Modular 880 / 890 Series and the 896 / 897 Series. This pin is used to connect the wheel lift extend cylinder to the wheel lift inner boom weldment. To see which specific wrecker models this pin fits please see Features below. To view the part schematics click on the Brochure tab.

This is the Wheel Lift Tilt Cylinder for the Vulcan 880 / 890 Series light duty wreckers by Miller Industries. This cylinder allows your wheel lift to tilt up and down. This cylinder connects to the wheel lift tilt column and the subframe of the wrecker. To view the part schematic click on the Brochure tab.

This is the Wheel Lift Extend Cylinder Front Pin for the Vulcan 880 / 890 Series and the Modular 880 / 890 Series light duty wreckers by Miller Industries. This pin is used to connect the wheel lift extend cylinder to the wheel lift outer boom weldment. To see which specific wrecker models this pin fits please see Features below. To view the part schematics click on the Brochure tab.   1" Diameter, 1-5/8"between snap ring grooves, 2-1/16" total length

This is the Wrecker Boom Lift Cylinder Pin on the Holmes 440SL, Vulcan 812 Intruder, and the Vulcan 810 Power Tilt light duty wreckers by Miller Industries. This pin goes through the rod end of the lift cylinder. This pin connects the boom lift cylinder to the main boom of the wrecker. To see which specific models this pin will fit see Features below. To view part schematics click on the Brochure tab.

This is the Wrecker Boom Extend Cylinder Pin for the Vulcan 896 and 897 Series light duty wreckers by Miller Industries. This cylinder pin goes through the rod end of the cylinder. This pin connects the boom extend cylinder to the wrecker inner boom weldment. To view the part schematic click on the Brochure tab.

This is the Wheel Lift Extend Cylinder Pin for the Wheel Lift of the Vulcan 805 light duty wrecker by Miller Industries. This pin goes through the rod end of the cylinder. This pin is used to attach the wheel lift extend cylinder to the wheel lift inner boom weldment. To view the part schematic click on the Brochure tab.

This is the Wheel Lift Tilt Cylinder on the Vulcan 896 and 897 Series light duty wreckers by Miller Industries. This is the cylinder that tilts the wheel lift up and down on your wrecker. This cylinder attaches to the wrecker subframe and to the wheel lift tilt column. To view the part schematic click on the Brochure tab.
