Equipment and Trailer Parts

This is a 1" Heavy Duty extended retaining / snap ring that is used on the boom and underlift of wreckers.

This Seal Kit from Miller Industries is used on the Bed Tilt Cylinder

This passenger side pivot-style L-Arm receiver bracket from Miller Industries attaches to the outer crosstubes on Vulcan 896 and 897 Series light-duty wrecker wheel lift assemblies. Also known as a wheel retainer and tire restraint, the L-Arm slides into the angled opening, and the desired position is secured with the bottom side locking pin. This scoop bracket weldment includes the swivel locking pin and the comfort grip stop pin.

Please Note: Product Discontinued - ALL SALES FINAL!

This is the Wheel Lift Tilt Cylinder Lower Pin for the Vulcan 806 and Vulcan 807 Auto Grip light duty wreckers by Miller Industries. This pin goes through the rod end of the tilt cylinder. This pin attaches the tilt cylinder to the wheel lift outer boom weldment. To see which specific wrecker models this pin will fit please see Features below. To view the part schematics click on the Brochure tab.

This is the Wheel Lift Tilt Cylinder Upper Pin for the Vulcan 806 and Vulcan 807 Auto Grip light duty wreckers by Miller Industries. This pin goes through the base end of the tilt cylinder. This pin attaches the tilt cylinder to the wrecker outer boom weldment. To see which specific wrecker models this pin will fit please see Features below. To view the part schematics click on the Brochure tab.

This is a complete crossbar assembly less the wheel retainers by Miller Industries for the Vulcan 880/890 Series.

This is an aluminum bronze bushing for a wheel lift pivot pin on a Vulcan 807 by Miller Industries.

Bottom wear pads for the underlift on a Vulcan V60 or V70 wrecker.

This is the Wrecker Boom Lift Cylinder Pin for the Holmes 440SL, Vulcan 805, and Vulcan 810 Series light duty wreckers by Miller Industries. This pin goes through the base end of the lift cylinder. This pin connects the boom lift cylinder to the subframe weldment. To view part schematics click on the Brochure tab.

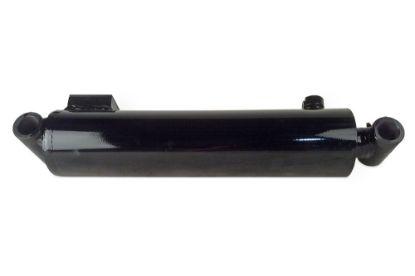

This is the Wrecker Boom Lift Cylinder on the Holmes 440SL, Vulcan 810 Intruder, Vulcan 812 Intruder, and the Vulcan 810 Power Tilt light duty wreckers by Miller Industries. This cylinder has a 3.5" bore with a 10.44" stroke. This lift cylinder connects to the subframe weldment and to the outer wrecker boom weldment. This is the cylinder that raises the boom of the wrecker up and down. This lift cylinder is also referred to as the boom elevation cylinder. To see which specific models this cylinder will fit please see Features below. To view part schematics click on the Brochure tab.

This is the Wheel Lift Tilt Cylinder Lower Pin on the Vulcan 880 / 890 Series and the Vulcan 896 / 897 Series light duty wreckers by Miller Industries. This pin is also used to attach the wrecker boom lift cylinder to the subframe weldment on the Vulcan 896 / 897 Series wrecker. To see which specific wrecker models this pin will fit please see Features below. To view the part schematics click on the Brochure tab.

Note: Special Handling Fees Apply

Wheel Grid assembly, right hand, fits Vulcan 850 & 890 wheel lifts. Uses 8501000 l-arm. This part can be used to replace Part Number, 8500500.

• Fits on 4" x 4" square tube
• Vulcan patented strapless system
• 6,000lbs lift rating

Note: Special Handling Fees Apply

This is a 3.5" square crossbar by Miller Industries designed for Vulcan 804, 806, 860, 870, and 880 series wheel lifts and Vulcan car carrier wheel lifts. It uses VUL-880K1 pivot pin kit. See Features for related parts and brochures for reference chart. This part can be used to replace Part Number 8700150.

• 3 1/2" x 3 1/2" square tube
• Accepts 8800800 & 8800900 outer crosstubes
• Uses VUL-DK1 detent ball kit
• Vulcan 804, 806, and 880/890 Series

  Related Parts:
• Pivot Pin Kit VUL-880K2
• Crosstubes (CROSSTUBES3.5)

Note: Special Handling Fees Apply

This Wheel Grid Assembly from Miller Industries is a right hand assembly that fits 3.5" x 3.5" square tubes. The wheel grid has a Vu lcan patented strapless system that is used on the Crossbar and Outer Crosstube Assembly of Vulcan 804, 806, 870, and 880 wheel lift s, as well as Vulcan Car Carriers. This wheel grid accepts L-Arm 8700180. Click here for the left hand version of this wheel grid 8800800.

• Vulcan patented strapless system
• Lift rating of 4,000 lbs.
• Accepts L-Arm 8700180
• Get the right hand version of this wheel gird, 8800800

  Fits:


• 2010-Current Vulcan Modular 804 Wreckers
• 2010-Current Vulcan Modular 806 Wreckers
• Vulcan 804, 860, 870, and 880 wheel lifts
• Vulcan car carriers

This is a 1" Snap Ring by Miller Industries. This snap ring is used on the wheel lift extend cylinder pin. This snap ring secures the pin in place. To view the part schematic click on the Brochure tab.

This is the Wheel Lift Tilt Cylinder Lower Pin for the Vulcan 810 Intruder light duty wrecker by Miller Industries. This pin goes through the rod end of the tilt cylinder. This pin attaches the wheel lift tilt cylinder to the wheel lift outer boom weldment. To view the part schematic click on the Brochure tab.

Note: Special Handling Fees Apply

Crossbar, Vulcan 850 and 890 series wheel lifts, uses the VUL-890K1 pivot pin kit. This part can be used to replace Part Number 850020300.

• 4 X 4  square tube
• Accepts 8900400 & 8900500 outer crosstubes
• Uses VUL-DK1 detent ball kit
• Length: 64"
• Width: 4"
• Height: 8.5"

This is the Wheel Lift Tilt Cylinder Lower Pin for the Vulcan 812 Intruder and the Vulcan 810 Power Tilt light duty wreckers by Miller Industries. This pin goes through the rod end of the tilt cylinder. This pin attaches the tilt cylinder to the wheel lift outer boom weldment. To see which specific wrecker models this pin will fit please see Features below. To view the part schematics click on the Brochure tab.

This is the Wheel Lift Extend Cylinder Rear Pin for the Vulcan 800 Series light duty wreckers by Miller Industries. This includes the 880 / 890 Series, Modular 880 / 890 Series and the 896 / 897 Series. This pin is used to connect the wheel lift extend cylinder to the wheel lift inner boom weldment. To see which specific wrecker models this pin fits please see Features below. To view the part schematics click on the Brochure tab.

This is the Wheel Lift Tilt Cylinder for the Vulcan 880 / 890 Series light duty wreckers by Miller Industries. This cylinder allows your wheel lift to tilt up and down. This cylinder connects to the wheel lift tilt column and the subframe of the wrecker. To view the part schematic click on the Brochure tab.

This is the Wheel Lift Extend Cylinder Front Pin for the Vulcan 880 / 890 Series and the Modular 880 / 890 Series light duty wreckers by Miller Industries. This pin is used to connect the wheel lift extend cylinder to the wheel lift outer boom weldment. To see which specific wrecker models this pin fits please see Features below. To view the part schematics click on the Brochure tab.   1" Diameter, 1-5/8"between snap ring grooves, 2-1/16" total length

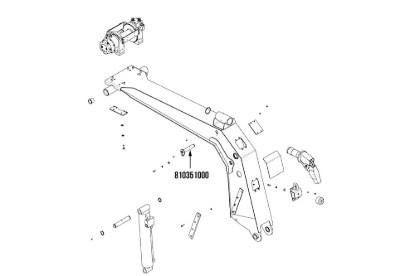

This is the Wrecker Boom Lift Cylinder Pin on the Holmes 440SL, Vulcan 812 Intruder, and the Vulcan 810 Power Tilt light duty wreckers by Miller Industries. This pin goes through the rod end of the lift cylinder. This pin connects the boom lift cylinder to the main boom of the wrecker. To see which specific models this pin will fit see Features below. To view part schematics click on the Brochure tab.

This painted steel L-Arm bracket from Miller Industries is a replacement weldment for the wheel lift on Vulcan 896, 897 and V30 light- and medium-duty wreckers. This receiver mounts to the passenger side wheel grid and secure the L-Arm, otherwise known as a scoop, wheel retainer or tire restraint.

This is the Wrecker Boom Extend Cylinder Pin for the Vulcan 896 and 897 Series light duty wreckers by Miller Industries. This cylinder pin goes through the rod end of the cylinder. This pin connects the boom extend cylinder to the wrecker inner boom weldment. To view the part schematic click on the Brochure tab.

This is the Wheel Lift Extend Cylinder Pin for the Wheel Lift of the Vulcan 805 light duty wrecker by Miller Industries. This pin goes through the rod end of the cylinder. This pin is used to attach the wheel lift extend cylinder to the wheel lift inner boom weldment. To view the part schematic click on the Brochure tab.

This is the Wheel Lift Tilt Cylinder on the Vulcan 896 and 897 Series light duty wreckers by Miller Industries. This is the cylinder that tilts the wheel lift up and down on your wrecker. This cylinder attaches to the wrecker subframe and to the wheel lift tilt column. To view the part schematic click on the Brochure tab.

This zinc-plated mild steel L-Arm from Miller Industries fits the driver side of the wheel lift on Vulcan 896 and 897 medium-duty wreckers. Otherwise known as a tire restraint or wheel retainer, the 2" x 3" rectangular tube fits the 12-4008001 outer crosstubes and offers adjustment holes and a grated tire scoop pan for tire securement.
