Gunnebo GrabiQ Couplinig Link G
This GrabiQ G Coupling Link from Gunnebo features a heavy-duty retaining collar for semi-permanent connections for chains, slings and hooks. The coupler is forged with extra-wide inside dimension, and a heat number identification allows for full product traceability. The heavy-duty finish ensures product durability. Featuring a Safety Factor of 4:1, the Grade 100 coupler is approved for overhead lifting and 25 percent stronger than Grade 80. Choose from 10 sizes and Working Load Limits ranging from 3,306 lbs. to 88,160 lbs. Various sizes allow slings to handle different capacities.
$28.99
–
$603.99
Gunnebo GrabiQ Master Grab Duo MGD
The Master Grab Duo MGD master link works with GrabIQ slings from Gunnebo. The all-in-one compact top link allows slings to handle different capacities and the ability to add and and remove legs as needed. Two built-in shortening functions allow the user to switch from a straight lift to a looped sling in a matter of seconds. Choose from five sizes with Working Load Limits ranging from 4,700 lbs. to 39,100 lbs. This master link offers a Safety Factor of 4:1.
$86.99
–
$420.99
Gunnebo Grade 80 Weld-On Anchor Hooks
The Gunnebo-Johnson Anchor Hook allows you to weld onto any surface for an
added anchor point. Spring-loaded latch is very strong, made from alloy
steel, same as the hook. Welding instructions are supplied. Proof-tested and
certified.
$114.99
–
$458.99
Gunnebo GrabiQ Grade 100 Bulk Chain
GrabIQ Grade 100 bulk chain from Gunnebo Industries is hardened and heat-treated for tempered durability and strength. Available in 10 sizes with Working Load Limits to 88,160 lbs., the chain is lighter than Grade 80 chain and 25 percent stronger. The chain is approved for overhead lifting and painted blue for easy identification.
$5.99
–
$178.99
Gunnebo GrabiQ Master Link M
The M Master Link from Gunnebo is used with GrabIQ slings. Choose from 16 sizes with Working Load Limits ranging from 3,306 lbs. to 275,500 lbs. Featuring a Safety Factor of 5:1, each M Master Link can handle up to five separate sling legs with quick insertion and removal as needed for the lifting job.
$23.99
–
$1,805.99
Gunnebo GrabiQ Sling Hook EGKN
Imperial
Metric
| Item # | GI-B14460 | GI-Z100843 | GI-B14461 | GI-B14462 | GI-B14463 | GI-B14464 | GI-Z101127 |
|---|---|---|---|---|---|---|---|
| Code | EGKN-6-10 | EGKN-7-10 | EGKN-8-10 | EGKN-10-10 | EGKN-13-10 | EGKN-16-10 | EGKN-20-10 |
| WLL lb* | 3,306 | 4,500 | 5,700 | 8,800 | 15,000 | 22,600 | 35,300 |
| L | 3.39 | 3.74 | 3.74 | 4.76 | 5.71 | 6.69 | 8.23 |
| B | 0.98 | 1.06 | 1.10 | 1.38 | 1.65 | 2.09 | 2.56 |
| G | 0.67 | 0.67 | 0.67 | 0.91 | 1.10 | 1.42 | 1.65 |
| H | 0.79 | 0.91 | 0.91 | 1.22 | 1.50 | 1.81 | 2.36 |
| Weight lb | 0.88 | 1.10 | 1.10 | 2.43 | 4.85 | 8.82 | 16.76 |
Metric
| Item # | GI-B14460 | GI-Z100843 | GI-B14461 | GI-B14462 | GI-B14463 | GI-B14464 | GI-Z101127 |
|---|---|---|---|---|---|---|---|
| Code | EGKN-6-10 | EGKN-7-10 | EGKN-8-10 | EGKN-10-10 | EGKN-13-10 | EGKN-16-10 | EGKN-20-10 |
| WLL tonnes* | 3,306 | 4,500 | 5,700 | 8,800 | 15,000 | 22,600 | 35,300 |
| L | 3.39 | 3.74 | 3.74 | 4.76 | 5.71 | 6.69 | 8.23 |
| B | 0.98 | 1.06 | 1.10 | 1.38 | 1.65 | 2.09 | 2.56 |
| G | 0.67 | 0.67 | 0.67 | 0.91 | 1.10 | 1.42 | 1.65 |
| H | 0.79 | 0.91 | 0.91 | 1.22 | 1.50 | 1.81 | 2.36 |
| Weight kg | 0.88 | 1.10 | 1.10 | 2.43 | 4.85 | 8.82 | 16.76 |
$57.99
–
$285.99
Gunnebo GrabiQ Grab Hook GG
Imperial
| Item # | GI-Z101844 | GI-Z100845 | GI-B14771 | GI-B14772 | GI-B14773 | GI-B14774 | Z101152 |
|---|---|---|---|---|---|---|---|
| Code | GG-6-10 | GG-7-10 | GG-8-10 | GG-10-10 | GG-13-10 | GG-16-10 | GG-20-10 |
| WLL lb* | 3,306 | 4,500 | 5,700 | 8,800 | 15,000 | 22,600 | 35,300 |
| L | 2.13 | 2.24 | 2.24 | 2.99 | 3.82 | 3.82 | 5.79 |
| B | 0.31 | 0.39 | 0.39 | 0.47 | 0.63 | 0.79 | 1.02 |
| Weight lb | 0.44 | 0.66 | 0.88 | 1.98 | 3.97 | 6.83 | 15.43 |
| Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches. | |||||||
Metric
| Item # | GI-Z101844 | GI-Z100845 | GI-B14771 | GI-B14772 | GI-B14773 | GI-B14774 | Z101152 |
|---|---|---|---|---|---|---|---|
| Code | GG-6-10 | GG-7-10 | GG-8-10 | GG-10-10 | GG-13-10 | GG-16-10 | GG-20-10 |
| WLL tonnes* | 1.5 | 2.0 | 2.6 | 4.0 | 6.8 | 10.3 | 16.0 |
| L | 54 | 57 | 57 | 76 | 97 | 114 | 147 |
| B | 8 | 10 | 10 | 12 | 16 | 20 | 26 |
| Weight kg | 0.2 | 0.3 | 0.4 | 0.9 | 1.8 | 3.1 | 7.0 |
| Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm. | |||||||
$38.99
–
$223.99
Gunnebo GrabiQ Single Leg Chain Sling
Overcome lifting challenges in construction, manufacturing and assembly with Gunnebo’s GrabIQ single leg chain sling system. GrabIQ kits from Zip’s AW Direct offer quicker, safer and simpler lifting operations with intelligent design and multiple functions in each component. Fewer components mean less weight and less expense than traditional chain slings.
$224.99
–
$1,404.99
Gunnebo GrabiQ Master Grab MG
The Master Grab MG master link works with GrabIQ slings from Gunnebo. The all-in-one compact top link allows slings to handle different capacities and the ability to add and and remove legs as needed. The built-in shortening function allows the user to switch from a straight lift to a looped sling in a matter of seconds. Choose from five sizes with Working Load Limits ranging from 3,306 lbs. to 22,600 lbs. This master link offers a Safety Factor of 4:1.
$52.99
–
$264.99
Gunnebo-Johnson Closed Pear Master Link 5/16" Chain WLL: 4500
As part of Gunnebo-Johnson's SK system of custom rigging solutions, the 5/16"
Closed Pear Master Link stands out as an excellent choice for single leg sling
of chain, synthetic or wire rope. The link has been proof tested and certified
and has a working load limit of 4,500 lbs.
$41.99
Gunnebo GrabiQ Container Hook CH
Imperial
Metric
| Item # | GI-Z101220 | GI-Z101221 | GI-Z101219 |
|---|---|---|---|
| Code | CH-3 | CH-3. 45° left | CH-3. 45° right |
| WLL lb* | 27,550 | 27,550 | 27,550 |
| A | 0.98 | 0.98 | 0.98 |
| L | 7.36 | 7.36 | 7.36 |
| E | 2.76 | 2.76 | 2.76 |
| B | 1.81 | 1.81 | 1.81 |
| H | 1.85 | 1.85 | 1.85 |
| G | 2.95 | 2.95 | 2.95 |
| Weight lb | 8.378 | 8.378 | 8.378 |
| *Safety factor 4:1. All dimensions in inches. | |||
Metric
| Item # | GI-Z101220 | GI-Z101221 | GI-Z101219 |
|---|---|---|---|
| Code | CH-3 | CH-3. 45° left | CH-3. 45° right |
| WLL tonnes* | 12.5 | 12.5 | 12.5 |
| A | 25 | 25 | 25 |
| L | 187 | 187 | 187 |
| E | 70 | 70 | 70 |
| B | 46 | 46 | 46 |
| H | 47 | 47 | 47 |
| G | 75 | 75 | 75 |
| Weight kg | 3.8 | 3.8 | 3.8 |
| *Safety factor 4:1. All dimensions in mm. | |||
$386.99
–
$549.99
Gunnebo GrabiQ C-Grab CG
The Gunnebo GrabiQ C-Grab CG is made for use with master links, eyehooks and chokes. The built-in shortening function allows the user to take up less chain without having to re-rig at the lifting point. This hook is forged with a heat number identification that identifies precisely which plant the product was made in, the year and the batch. Thanks to its heavy-duty finish you can trust this heat-treated hook to connect the master link on your sling to the lifting chain leg, providing a safe and secure lifting point on the job.
$71.99
–
$284.99
Gunnebo GrabiQ Master Link MF
The MF Master Link from Gunnebo is used with GrabIQ slings. Choose from 7 sizes with Working Load Limits ranging from 3,306 lbs. to 68,103 lbs. Featuring a Safety Factor of 5:1, each MF Master Link can handle up to four separate sling legs with quick insertion and removal as needed for the lifting job.
$24.99
–
$179.99
Gunnebo GrabiQ Grab Hook GG with Locking Pin
Imperial
Metric
| Item # | GI-B14971 | GI-B14972 | GI-B14973 | GI-B14974 |
|---|---|---|---|---|
| Code | GG-8-10 LP | GG-10-10 LP | GG-13-10 LP | GG-16-10 LP |
| WWL lb* | 5,700 | 8,800 | 15,000 | 22,600 |
| L | 2.24 | 3.03 | 3.82 | 4.49 |
| B | 0.39 | 0.47 | 0.63 | 0.79 |
| Weight lb* | 0.88 | 1.98 | 4.19 | 7.05 |
| Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches. |
||||
Metric
| Item # | GI-B14971 | GI-B14972 | GI-B14973 | GI-B14974 |
|---|---|---|---|---|
| Code | GG-8-10 LP | GG-10-10 LP | GG-13-10 LP | GG-16-10 LP |
| WWL tonnes* | 2.6 | 4.0 | 6.8 | 10.3 |
| L | 57 | 77 | 97 | 114 |
| B | 10 | 12 | 16 | 1.9 |
| Weight kg* | 10.3 | 114 | 20 | 3.2 |
| Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm. |
||||
$163.99
–
$526.99
Gunnebo Johnson Kupler Links Alloy G80
Kuplers act as a connection device between master links and chain legs.
Resembling a shackle in appearance, they provide high strength connection.
Alloy steel.
$32.99
Gunnebo GrabiQ Dual Leg Chain Sling
Overcome lifting challenges in construction, manufacturing and assembly with Gunnebo’s GrabIQ dual leg chain sling system. GrabIQ kits from Zip’s AW Direct offer quicker, safer and simpler lifting operations with intelligent design and multiple functions in each component. Fewer components mean less weight and less expense than traditional chain slings.
$404.99
–
$2,719.99
Gunnebo GrabiQ C-Grab Duo CGD
The Gunnebo GrabiQ C-Grab Duo CGD comes with two extra hooks to shorten the chain length. This built-in shortening function allows the user to take up less chain without having to re-rig at the lifting point. The hook itself is forged with a heat number identification that identifies precisely which plant the product was made in, the year and the batch. Thanks to its heavy-duty finish you can trust this heat-treated hook to connect the master link on your sling to the lifting chain leg, providing a safe and secure lifting point on the job.
$96.99
–
$451.99
Gunnebo GrabiQ Single Flexi-Leg Chain Sling
Increase the flexibility in your overhead lifting operations with Gunnebo’s GrabIQ FlexiLeg chain sling kits from Zip’s AW Direct. Add or remove legs as needed for the object being lifted with the removable QuickPin on each connecting hook to the master link. This stainless steel pin allows for safe exchange of sling legs and offers an instant open and close function so no tools are required.
$249.99
–
$1,429.99
Gunnebo GrabiQ C-Lok CL
The Gunnebo GrabiQ C-Lok CL hook was designed for use with master links, eyehooks and choke. This versatile hook features a safety factor of 4:1 and is 25% stronger than any grade 80 hook. This hook is approved for overhead lifting. Plus its rigorously tested high-quality steel can handle up to 22,600 lbs. More information is available in the dropdown menu.
$47.99
–
$151.99
Gunnebo Classic Berglok Chain Coupler BL
Imperial
| Item # | GI-Z622036 | GI-Z195823 | GI-Z208022 | GI-Z217820 | GI-Z208226 |
|---|---|---|---|---|---|
| Code | BL-6-8 | BL-7/8-8 | BL-10-8 | BL-13-8 | BL-16-8 |
| WLL lb* | 2,500 | 4,500 | 7,100 | 12,000 | 18,000 |
| For chain dim. | (6mm) | 9/32, 5/16 | 3/8 | 1/2 | 5/8 |
| L | 1.06 | 1.38 | 1.77 | 2.20 | 2.68 |
| E | 0.79 | 0.98 | 1.26 | 1.57 | 1.97 |
| F | 0.35 | 0.43 | 0.55 | 0.67 | 1.97 |
| A | 0.55 | 0.71 | 0.87 | 1.10 | 1.38 |
| Weight lb | 0.22 | 0.44 | 0.88 | 1.76 | 3.09 |
| Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches. |
|||||
Metric
| Item # | GI-Z622036 | GI-Z195823 | GI-Z208022 | GI-Z217820 | GI-Z208226 |
|---|---|---|---|---|---|
| Code | BL-6-8 | BL-7/8-8 | BL-10-8 | BL-13-8 | BL-16-8 |
| WLL tonnes* | 1.1 | 2.0 | 3.2 | 5.4 | 8.2 |
| For chain dim. | 6 | 7, 8 | 10 | 13 | 16 |
| L | 27 | 35 | 45 | 56 | 68 |
| E | 20 | 25 | 32 | 40 | 50 |
| F | 9 | 11 | 14 | 17 | 22 |
| A | 14 | 18 | 22 | 28 | 35 |
| Weight kg | 0.1 | 0.2 | 0.4 | 0.8 | 1.4 |
| Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M-02, AS 3776:2015 and SANS 1595:2003. *Safety factor 4:1. All dimensions in mm. |
|||||
$40.99
–
$110.99
Gunnebo GrabiQ Midgrab Chain Shortener w/ LC Pins
The GrabIQ Midgrab Chain Shortener from Gunnebo Industries allows the user to take up slack in the overall chain length for effective and efficient lifting. Available in three sizes, the shortener can be placed anywhere along the length of the chain and can be used in any direction. To prevent inadvertent chain disengagement, the device features a fixed pin for locking the shortener in place.
$175.99
–
$302.99
Gunnebo GrabiQ Sling Hook EKN
Imperial
Metric
| Item # | GI-Z101128 | GI-Z101130 | GI-Z101132 | GI-Z101134 | GI-Z101136 | GI-Z101327 | GI-Z101328 | GI-Z101329 | GI-Z100725 | GI-Z101330 |
|---|---|---|---|---|---|---|---|---|---|---|
| Code | EKN- 6-10 | EKN- 7/8-10 | EKN-10-10 | EKN-13-10 | EKN-16-10 | EKN-20-10 | EKN-22-10 | EKN-26-10 | 72,300 WLL | EKN-32-10 |
| WLL lb* | 3,306 | 5,700 | 8,800 | 15,000 | 22,600 | 35,300 | 44,080 | 60,169 | 72,311 | 88,160 |
| L | 3.66 | 4.25 | 5.28 | 6.54 | 7.99 | 9.02 | 10.51 | 11.85 | 13.11 | 13.90 |
| B | 0.98 | 1.02 | 1.38 | 1.65 | 2.09 | 2.56 | 2.87 | 3.23 | 3.66 | 3.78 |
| E | 0.91 | 1.10 | 1.34 | 1.73 | 2.20 | 2.40 | 2.52 | 2.60 | 2.99 | 3.54 |
| F | 0.39 | 0.47 | 0.55 | 0.71 | 0.87 | 1.02 | 1.22 | 1.26 | 1.50 | 1.50 |
| G | 0.67 | 0.67 | 0.91 | 1.10 | 1.42 | 1.65 | 1.69 | 2.01 | 2.40 | 2.40 |
| H | 0.79 | 0.91 | 1.18 | 1.50 | 1.85 | 2.36 | 2.64 | 2.95 | 3.14 | 3.86 |
| Weight lb | 0.88 | 1.32 | 2.20 | 4.63 | 8.82 | 14.11 | 19.62 | 28.66 | 41.73 | 55.12 |
| Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches. | ||||||||||
Metric
| Item # | GI-Z101128 | GI-Z101130 | GI-Z101132 | GI-Z101134 | GI-Z101136 | GI-Z101327 | GI-Z101328 | GI-Z101329 | GI-Z100725 | GI-Z101330 |
|---|---|---|---|---|---|---|---|---|---|---|
| Code | EKN- 6-10 | EKN- 7/8-10 | EKN-10-10 | EKN-13-10 | EKN-16-10 | EKN-20-10 | EKN-22-10 | EKN-26-10 | 72,300 WLL | EKN-32-10 |
| WLL tonnes* | 1.5 | 2.6 | 4.0 | 6.8 | 10.3 | 16.0 | 20.0 | 27.3 | 32.8 | 40.0 |
| L | 93 | 108 | 134 | 166 | 203 | 229 | 267 | 301 | 333 | 353 |
| B | 25 | 26 | 37 | 42 | 53 | 60 | 73 | 82 | 93 | 96 |
| E | 23 | 28 | 34 | 44 | 56 | 61 | 64 | 66 | 76 | 90 |
| F | 10 | 12 | 14 | 18 | 22 | 26 | 31 | 32 | 38 | 32 |
| G | 17 | 17 | 23 | 28 | 36 | 42 | 43 | 51 | 61 | 61 |
| H | 20 | 23 | 30 | 38 | 47 | 60 | 67 | 75 | 80 | 98 |
| Weight kg | 0.4 | 0.6 | 1.0 | 2.1 | 4.0 | 6.4 | 8.9 | 13.0 | 18.927 | 25.0 |
| Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in mm. |
||||||||||
$47.99
–
$1,663.99
Gunnebo-Johnson Berglok Clevis and Pin
This Berglok 5/16" clevis and pin from Gunnebo Johnson is primarily used with
the LK sliding choker and allows for assembly of chain systems with engineered
flats. The clevis fits most Gunnebo eye hooks.
$33.99
Gunnebo Classic Grab Hook OG
Available in the following sizes
| Item # | Size | WLL |
|---|---|---|
| GI-Z100811 | 5/16" | 4,500 lbs. |
| GI-Z291022 | 3/8" | 7,100 lbs. |
| GI-Z295220 | 1/2" | 12,000 lbs. |
| GI-Z296221 | 5/8" | 18,000 lbs. |
$24.99
–
$102.99
Gunnebo GrabiQ Master Link MT with Sub Links
The MT Master Link from Gunnebo is designed for use with chain or wire rope and works with three- and four-leg GrabIQ slings. Choose from 10 sizes with Working Load Limits ranging from 11,020 lbs. to 275,500 lbs. Featuring a Safety Factor of 5:1, each MT Master Link allows for efficient sling connection, and the various capacities of links allow for safe lifting with the correct master link.
$126.99
–
$2,681.99
9/32" Alloy Kupler Link, Grade 80
Please Note: Product Discontinued - ALL SALES FINAL!
Discontinued items are not eligible for return. View Returns Policy
Kuplers act as a connection device between master links and chain legs. Resembling a shackle in appearance, they provide high strength connection. Alloy steel.
Discontinued items are not eligible for return. View Returns Policy
Kuplers act as a connection device between master links and chain legs. Resembling a shackle in appearance, they provide high strength connection. Alloy steel.
- Individually proof tested at 2-1/2 times working load limit with certification.
- Locking system that provides for simple assembly and disassembly - no special tools needed.
- Meets ASTM A-952-96 standards for Grade 8 chain fittings.
- Forged alloy steel - Quenched and Tempered.
- 3500 LBS WLL
$15.99
Gunnebo-Johnson Open Pear Master Link 5/16" Chain WLL: 4500
As part of Gunnebo-Johnson's SK system of custom rigging solutions, the 5/16"
Closed Pear Master Link stands out as an excellent choice for single leg sling
of chain, synthetic or wire rope. The link has been proof tested and certified
and has a working load limit of 4,500 lbs.
$58.99
Gunnebo Classic Roller-Bearing Swivel SKLI/SKLU
Imperial
Metric
| Item # | GI-Z100316 | GI-Z100414 |
|---|---|---|
| Code | SKLI-7/8-8 | SKLI-10-8 |
| WLL lb* | 4,500 | 7,100 |
| For chain dim. | 9/32”, 5/16” | 3/8” |
| L | 2.95 | 3.82 |
| D | 1.89 | 2.32 |
| Weight lb | 1.54 | 2.87 |
| Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015. ** Uninsulated. *Safety factor 4:1. All dimensions in inches. |
||
Metric
| Item # | GI-Z100316 | GI-Z100414 |
|---|---|---|
| Code | SKLI-7/8-8 | SKLI-10-8 |
| WLL tonnes* | 2.0 | 3.2 |
| For chain dim. | 7, 8 | 10 |
| L | 75 | 97 |
| D | 48 | 59 |
| Weight kg | 0.7 | 1.3 |
| Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M-02, AS 3776:2015 and SANS 1595:2003. ** Uninsulated. All dimensions in mm. |
||
$564.99
–
$712.99
Gunnebo GrabiQ Dual Flexi-Leg Chain Sling
Increase the flexibility in your overhead lifting operations with Gunnebo’s GrabIQ FlexiLeg chain sling kits from Zip’s AW Direct. Add or remove legs as needed for the object being lifted with the removable QuickPin on each connecting hook to the master link. This stainless steel pin allows for safe exchange of sling legs and offers an instant open and close function so no tools are required.
$459.99
–
$2,674.99
Gunnebo Quick Pin
Available in the following sizes
| Item # | Size |
|---|---|
| GI-Z101010 | 7/32' |
| GI-Z101011 | 5/16" |
| GI-Z101013 | 1/2" |
$50.99
–
$71.99
Gunnebo Locking Set SKA
Imperial
Metric
| Item # | Code | Weight lb |
|---|---|---|
| GI-Z100989 | SKA- 6-10 | 0.02 |
| GI-Z100933 | SKA- 7/8-10 | 0.04 |
| GI-Z100934 | SKA-10-10 | 0.09 |
| GI-Z100990 | SKA-13-10 | 0.18 |
| GI-Z100991 | SKA-16-10 | 0.31 |
| GI-Z101176 | SKA-20-10 | 0.57 |
| GI-Z650555 | SKA-22-10 | 0.77 |
| GI-Z650556 | SKA-26-10 | 1.39 |
Metric
| Item # | Code | Weight kg |
|---|---|---|
| GI-Z100989 | SKA- 6-10 | 0.01 |
| GI-Z100933 | SKA- 7/8-10 | 0.02 |
| GI-Z100934 | SKA-10-10 | 0.04 |
| GI-Z100990 | SKA-13-10 | 0.08 |
| GI-Z100991 | SKA-16-10 | 0.14 |
| GI-Z101176 | SKA-20-10 | 0.26 |
| GI-Z650555 | SKA-22-10 | 0.35 |
| GI-Z650556 | SKA-26-10 | 0.63 |
$11.99
–
$92.99

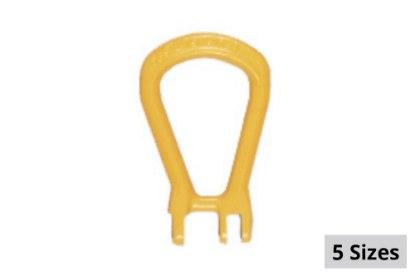

Gunnebo Classic Master Link SKG - Closed
Imperial
Metric
| Item # | GI-Z419684 | GI-Z419781 | GI-Z419888 | GI-Z419985 | GI-Z420086 |
|---|---|---|---|---|---|
| Code | SKG-7/8-8 | SKG-10-8 | SKG-13-8 | SKG-16-8 | SKG-18/20-8 |
| WLL lb* | 4,500 | 7,100 | 12,000 | 18,000 | 28,300 |
| For chain dim. | 9/32, 5/16 | 3/8 | 1/2 | 5/8 | 3/4 |
| L | 3.90 | 5.00 | 5.71 | 6.89 | 8.03 |
| E | 1.97 | 2.60 | 2.83 | 3.23 | 4.13 |
| G | 0.55 | 0.71 | 0.87 | 0.98 | 1.18 |
| Weight lb | 0.66 | 1.32 | 2.43 | 3.31 | 6.61 |
| Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches. |
|||||
Metric
| Item # | GI-Z419684 | GI-Z419781 | GI-Z419888 | GI-Z419985 | GI-Z420086 |
|---|---|---|---|---|---|
| Code | SKG-7/8-8 | SKG-10-8 | SKG-13-8 | SKG-16-8 | SKG-18/20-8 |
| WLL tonnes* | 2.0 | 3.2 | 5.4 | 8.2 | 12.8 |
| For chain dim. | 7, 8 | 10 | 13 | 16 | 19 |
| L | 99 | 127 | 145 | 175 | 204 |
| E | 50 | 66 | 72 | 82 | 105 |
| G | 14 | 18 | 22 | 25 | 30 |
| Weight kg | 0.3 | 0.6 | 1.1 | 1.5 | 3.0 |
| Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M-02, AS 3776:2015 and SANS 1595:2003. *Safety factor 4:1. All dimensions in mm. |
|||||
$71.99
–
$348.99
Gunnebo Locking Set CS
Imperial
Metric
| Item # | Code | Weight lb |
|---|---|---|
| GI-B14920 | CS- 6-10 | 0.02 |
| GI-B14921 | CS- 8-10 / RH-1 & -2 | 0.02 |
| GI-B14922 | CS-10-10 / RH-3 | 0.02 |
| GI-B14923 | CS-13-10 | 0.07 |
| GI-B14924 | CS-16-10 / RH-5 | 0.11 |
Metric
| Item # | Code | Weight kg |
|---|---|---|
| GI-B14920 | CS- 6-10 | 0.01 |
| GI-B14921 | CS- 8-10 / RH-1 & -2 | 0.01 |
| GI-B14922 | CS-10-10 / RH-3 | 0.01 |
| GI-B14923 | CS-13-10 | 0.03 |
| GI-B14924 | CS-16-10 / RH-5 | 0.05 |
$7.99
–
$36.99
Gunnebo GrabiQ C-Lok Duo CLD
The Gunnebo GrabiQ C-Lok Duo CLD hook was designed for use with master links, eyehooks and choke. This versatile hook features a safety factor of 4:1 and is 25% stronger than any grade 80 hook. This hook is approved for overhead lifting. Plus its rigorously tested high-quality steel can handle up to 39,321 lbs. More information is available in the dropdown menu.
$96.99
–
$241.99
Gunnebo GrabiQ Roundsling Hook RH
Available in the following sizes
| Item # | WLL |
|---|---|
| GI-B14490 | 2,204 lbs. |
| GI-B14491 | 4,500 lbs. |
| GI-B14492 | 6,612 lbs. |
| GI-B14493 | 11,020 lbs. |
$132.99
–
$398.99
Gunnebo Load Pin CLS
Imperial
Metric
| Item # | Code | Weight lb |
|---|---|---|
| GI-B14930 | CLS- 6 | 0.02 |
| GI-B14931 | CLS- 8 | 0.04 |
| GI-B14932 | CLS-10 | 0.09 |
| GI-B14933R | CLS-13 | 0.20 |
| GI-B14934 | CLS-16 | 0.35 |
| GI-B14935 | CLS-20 | 0.57 |
Metric
| Item # | Code | Weight lb |
|---|---|---|
| GI-B14930 | CLS- 6 | 0.01 |
| GI-B14931 | CLS- 8 | 0.02 |
| GI-B14932 | CLS-10 | 0.04 |
| GI-B14933R | CLS-13 | 0.09 |
| GI-B14934 | CLS-16 | 0.16 |
| GI-B14935 | CLS-20 | 0.26 |
$11.99
–
$54.99
Gunnebo GrabiQ Triple Flexi-Leg Chain Sling
Increase the flexibility in your overhead lifting operations with Gunnebo’s GrabIQ FlexiLeg chain sling kits from Zip’s AW Direct. Add or remove legs as needed for the object being lifted with the removable QuickPin on each connecting hook to the master link. This stainless steel pin allows for safe exchange of sling legs and offers an instant open and close function so no tools are required.
$679.99
–
$4,229.99
Gunnebo GrabiQ 5 Flexi-Leg Chain Sling
Increase the flexibility in your overhead lifting operations with Gunnebo’s GrabIQ FlexiLeg chain sling kits from Zip’s AW Direct. Add or remove legs as needed for the object being lifted with the removable QuickPin on each connecting hook to the master link. This stainless steel pin allows for safe exchange of sling legs and offers an instant open and close function so no tools are required.
$1,064.99
–
$6,914.99
Gunnebo GrabiQ Midgrab Fixed Locking Set
This Lock Set Pin from Gunnebo works exclusively with the Midgrab Chain Shortener. As its name implies, the L Pin locks one end of the shortener onto a chain length, leaving the other end open to adjust the chain length. This fixed position ensures the shortener is held in place, thus increasing user safety. Choose from three sizes of pins for 5/16”, 3/8" and 1/2" shorteners.
$23.99
–
$41.99
Gunnebo Classic Load Pin and Locking Collar SKA
Imperial
Metric
| Item # | Code | Weight lb |
|---|---|---|
| GI-Z323624 | SKA-7/8-8 | 0.04 |
| GI-Z318024 | SKA-10-8 | 0.09 |
| GI-Z303822 | SKA-13-8 | 0.18 |
| GI-Z303725 | SKA-16-8 | 0.31 |
| GI-Z145048 | SKA-18/20-8 | 0.57 |
| GI-Z133530 | SKA-22-8 | 0.77 |
| GI-Z605407 | SKA-26-8 | 1.39 |
| GI-Z650554 | SKA-32-8 | 2.31 |
Metric
| Item # | Code | Weight kg |
|---|---|---|
| GI-Z323624 | SKA-7/8-8 | 0.02 |
| GI-Z318024 | SKA-10-8 | 0.04 |
| GI-Z303822 | SKA-13-8 | 0.08 |
| GI-Z303725 | SKA-16-8 | 0.14 |
| GI-Z145048 | SKA-18/20-8 | 0.26 |
| GI-Z133530 | SKA-22-8 | 0.35 |
| GI-Z605407 | SKA-26-8 | 0.63 |
| GI-Z650554 | SKA-32-8 | 1.05 |
$11.99
–
$165.99
Gunnebo GrabiQ Quad Flexi-Leg Chain Sling
Increase the flexibility in your overhead lifting operations with Gunnebo’s GrabIQ FlexiLeg chain sling kits from Zip’s AW Direct. Add or remove legs as needed for the object being lifted with the removable QuickPin on each connecting hook to the master link. This stainless steel pin allows for safe exchange of sling legs and offers an instant open and close function so no tools are required.
$859.99
–
$5,204.99
Gunnebo GrabiQ Master Link MFH
The MFH Master Link from Gunnebo is used with GrabIQ slings and is specifically designed for crane hooks and 3- and 4-leg slings. Choose from 5 sizes with Working Load Limits ranging from 17,632 lbs. to 61,712 lbs. Featuring a Safety Factor of 5:1, each MFH Master Link allows for quick insertion and removal as needed for the lifting job.
$266.99
–
$421.99
Gunnebo GrabiQ Midgrab Close/Open Locking Set
This Close/Open Locking Pin Set from Gunnebo works exclusively with the Midgrab Chain Shortener. Otherwise known as C Pins, one spring-operated pin is inserted into each end of the shortener and can be locked into position. The open position allows the chain length to be adjusted as desired. The lock position holds the shortener in position, thus increasing user safety. Choose from three sizes of pins for 5/16”, 3/8" and 1/2" shorteners.
$35.99
–
$65.99
Gunnebo GrabiQ Chain Tensioner GT
Imperial
Metric
| Item # | GI-Z101367 | GI-Z101368 |
|---|---|---|
| Code | GT-8-10 | GT-10-10 |
| WLL lb* | 5,700 | 8,800 |
| L = Min. Length | 15.75 | 15.75 |
| L = Max Length | 23.62 | 23.62 |
| Weight lb | 7.275 | 7.275 |
| All dimensions in inches. | ||
| Item # | GI-Z101367 | GI-Z101368 |
|---|---|---|
| Code | GT-8-10 | GT-10-10 |
| WLL tonnes* | 2.6 | 4.0 |
| STF (daN) | 2800 | 2800 |
| L = Min. Length | 400 | 400 |
| L = Max Length | 600 | 600 |
| Weight kg | 3.3 | 3.3 |
| All dimensions in mm. | ||
$604.99
–
$640.99
Gunnebo GrabiQ Sling Hook EK
Imperial
Metric
| Item # | GI-Z101164 | GI-Z101166 | GI-Z101168 | GI-Z101170 |
|---|---|---|---|---|
| Code | EK- 7/8-10 | EK-10-10 | EK-13-10 | EK-16-10 |
| WLL lb* | 5,700 | 8,800 | 15,000 | 22,600 |
| L | 4.25 | 5.28 | 6.54 | 7.99 |
| B | 1.26 | 1.61 | 1.93 | 2.40 |
| E | 1.10 | 1.34 | 1.73 | 2.20 |
| F | 0.47 | 0.55 | 0.71 | 0.87 |
| G | 0.67 | 0.91 | 1.10 | 1.42 |
| H | 0.91 | 1.18 | 1.50 | 1.85 |
| Weight lb | 1.10 | 1.98 | 4.41 | 7.28 |
Metric
| Item # | GI-Z101164 | GI-Z101166 | GI-Z101168 | GI-Z101170 |
|---|---|---|---|---|
| Code | EK- 7/8-10 | EK-10-10 | EK-13-10 | EK-16-10 |
| WLL tonnes* | 5,700 | 8,800 | 15,000 | 22,600 |
| L | 108 | 134 | 166 | 203 |
| B | 32 | 41 | 49 | 61 |
| E | 28 | 34 | 44 | 56 |
| F | 12 | 14 | 18 | 22 |
| G | 17 | 23 | 28 | 36 |
| H | 23 | 30 | 38 | 47 |
| Weight kg | 0.5 | 0.9 | 2.0 | 3.3 |
$41.99
–
$162.99
Gunnebo GrabiQ Sling Hook EGK
Imperial
Metric
| Item # | GI-Z100918 | GI-Z100938 | GI-Z100942 | GI-Z100946 | GI-Z100950 |
|---|---|---|---|---|---|
| Code | EGK-7-10 | EGK-8-10 | EGK-10-10 | EGK-13-10 | EGK-16-10 |
| WLL lb* | 4,500 | 5,700 | 8,800 | 15,000 | 22,600 |
| L | 3.74 | 3.74 | 4.76 | 5.71 | 6.69 |
| B | 1.26 | 1.26 | 1.61 | 1.93 | 2.40 |
| G | 0.67 | 0.67 | 0.91 | 1.10 | 1.42 |
| H | 0.87 | 0.91 | 1.22 | 1.50 | 1.81 |
| Weight lb | 1.10 | 1.10 | 2.20 | 4.41 | 8.38 |
Metric
| Item # | GI-Z100918 | GI-Z100938 | GI-Z100942 | GI-Z100946 | GI-Z100950 |
|---|---|---|---|---|---|
| Code | EGK-7-10 | EGK-8-10 | EGK-10-10 | EGK-13-10 | EGK-16-10 |
| WLL tonnes* | 2.0 | 2.6 | 4.0 | 6.8 | 10.3 |
| L | 95 | 95 | 121 | 145 | 170 |
| B | 32 | 32 | 41 | 49 | 61 |
| G | 17 | 17 | 23 | 28 | 36 |
| H | 22 | 23 | 31 | 38 | 46 |
| Weight kg | 0.5 | 0.5 | 1.0 | 2.0 | 3.8 |
$65.99
–
$192.99

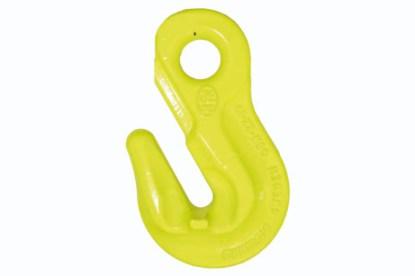

Gunnebo GrabiQ Grab Hook OG
Imperial
Metric
| Item # | GI-Z101296 | GI-Z101297 | GI-Z101298 | GI-Z101299 | GI-Z101300 | GI-Z101301 | GI-Z101302 | |
|---|---|---|---|---|---|---|---|---|
| Code | OG-7/8-10 | OG-10-10 | OG-13-10 | OG-16-10 | OG-20-10 | OG-22-10 | OG-26-10 | |
| WWL lb* | 5,700 | 8,800 | 15,000 | 22,600 | 35,300 | 44,094 | 60,169 | |
| L | 2.56 | 3.35 | 4.09 | 5.16 | 6.57 | 7.36 | 8.98 | |
| B | 0.39 | 0.47 | 0.63 | 0.79 | 1.02 | 1.02 | 1.26 | |
| E | 0.67 | 0.79 | 1.02 | 1.02 | 1.61 | 1.81 | 2.17 | |
| F | 0.39 | 0.47 | 0.63 | 0.75 | 0.91 | 1.26 | 1.50 | |
| Weight lb | 0.66 | 1.54 | 3.53 | 6.17 | 13.45 | 18.96 | 30.86 | |
| Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches. |
||||||||
Metric
| Item # | GI-Z101296 | GI-Z101297 | GI-Z101298 | GI-Z101299 | GI-Z101300 | GI-Z101301 | GI-Z101302 | |
|---|---|---|---|---|---|---|---|---|
| Code | OG-7/8-10 | OG-10-10 | OG-13-10 | OG-16-10 | OG-20-10 | OG-22-10 | OG-26-10 | |
| WWL tonnes* | 2.6 | 4.0 | 6.8 | 10.3 | 16.0 | 20.0 | 27.3 | |
| L | 65 | 85 | 104 | 131 | 167 | 187 | 228 | |
| B | 10 | 12 | 16 | 20 | 26 | 26 | 32 | |
| E | 17 | 20 | 26 | 32 | 41 | 46 | 55 | |
| F | 10 | 12 | 16 | 19 | 23 | 26 | 38 | |
| Weight kg | 0.3 | 0.7 | 1.6 | 2.8 | 6.1 | 7.75 | 14 | |
| Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm. | ||||||||
$23.99
–
$1,304.99
Gunnebo Classic Universal Weld-on Hook
Imperial
Metric
| Item # | GI-Z1002560 | GI-Z6511810 | GI-Z7009060 | GI-Z6455730 | GI-Z6521160 | GI-Z6455800 | GI-Z6515390 | GI-Z6456030 | GI-Z1007850 | GI-Z1007851 |
|---|---|---|---|---|---|---|---|---|---|---|
| Code | UKN-0.75* | UKN-1* | UKN-2* | UKN-3 | UKN-4 | UKN-5 | UKN-8 | UKN-10 | UKN-15 | UKN-20 |
| WLL lb* | 1,653 | 2,204 | 4,500 | 6,612 | 8,800 | 11,020 | 17,632 | 22,040 | 33,060 | 44,080 |
| B | 0.79 | 1.06 | 1.30 | 1.18 | 1.18 | 1.34 | 1.34 | .85 | 2.17 | 2.56 |
| G | 0.51 | 0.67 | 0.79 | 0.91 | 1.14 | 1.18 | 1.57 | 1.69 | 1.97 | 2.36 |
| H | 0.79 | 0.98 | 1.18 | 1.26 | 1.50 | 1.85 | 2.01 | 2.28 | 2.64 | 3.35 |
| K | 0.75 | 0.98 | 1.18 | 1.38 | 1.65 | 1.77 | 1.97 | 2.17 | 2.36 | 2.36 |
| L | 3.21 | 3.74 | 4.49 | 5.20 | 5.51 | 6.50 | 6.77 | 8.66 | 9.45 | 10.83 |
| A | 0.20 | 0.24 | 0.31 | 0.39 | 0.43 | 0.47 | 0.51 | 0.55 | 0.59 | 0.59 |
| X | 2.20 | 2.83 | 3.39 | 4.13 | 4.49 | 5.16 | 5.24 | 6.69 | 7.40 | 8.15 |
| Weight lb | 0.44 | 1.32 | 1.98 | 2.87 | 4.41 | 7.05 | 7.94 | 18.08 | 21.61 | 27.34 |
| Fulfills requirements in: EN 474-1. * Welding plate slightly curved. ** Safety factor 5:1. All dimensions in inches. | ||||||||||
Metric
| Item # | GI-Z1002560 | GI-Z6511810 | GI-Z7009060 | GI-Z6455730 | GI-Z6521160 | GI-Z6455800 | GI-Z6515390 | GI-Z6456030 | GI-Z1007850 | GI-Z1007851 |
|---|---|---|---|---|---|---|---|---|---|---|
| Code | UKN-0.75* | UKN-1* | UKN-2* | UKN-3 | UKN-4 | UKN-5 | UKN-8 | UKN-10 | UKN-15 | UKN-20 |
| WLL tonnes* | 0.75 | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 | 8.0 | 10.0 | 15.0 | 20.0 |
| B | 20 | 27 | 33 | 30 | 30 | 34 | 34 | 47 | 55 | 65 |
| G | 13 | 17 | 20 | 23 | 29 | 30 | 40 | 43 | 50 | 60 |
| H | 20 | 25 | 30 | 32 | 38 | 47 | 51 | 58 | 67 | 85 |
| K | 19 | 25 | 30 | 32 | 38 | 47 | 51 | 58 | 67 | 85 |
| L | 81.5 | 95 | 114 | 132 | 140 | 165 | 172 | 220 | 240 | 275 |
| A | 5 | 6 | 8 | 10 | 11 | 12 | 13 | 14 | 15 | 15 |
| X | 56 | 72 | 86 | 105 | 114 | 131 | 133 | 170 | 188 | 207 |
| Weight kg | 0.2 | 0.6 | 0.9 | 1.3 | 2.0 | 3.2 | 3.6 | 8.2 | 9.8 | 12.4 |
| Fulfills requirements in: EN 474-1. * Welding plate slightly curved. ** Safety factor 5:1. All dimensions in mm. | ||||||||||
$150.99
–
$798.99

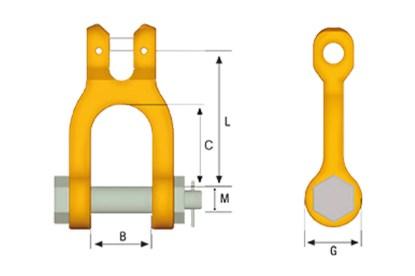

Gunnebo Classic Clevis Shackle GSA
Imperial
| Item # | GI-Z700882 | GI-Z700883 | GI-Z700884 | GI-Z700885 |
|---|---|---|---|---|
| Code | GSA-7/8-8 | GSA-10-8 | GSA-13-8 | GSA-16-8 |
| WLL lb* | 4,409 | 7,054 | 11,905 | 18,077 |
| For chain dim. | 9/32, 5/16 | 3/8 | 1/2 | 5/8 |
| A | 1.26 | 1.34 | 1.97 | 2.36 |
| C | 1.42 | 1.89 | 2.56 | 2.76 |
| D2 | 1.34 | 1.57 | 1.73 | 2.13 |
| L | 2.36 | 3.15 | 3.86 | 4.49 |
| D1 | 0.63 | 0.79 | 0.87 | 1.06 |
| Weight lb | 0.88 | 1.76 | 3.09 | 5.29 |
| *Safety factor 4:1. All dimensions in inches. | ||||
Metric
| Item # | GI-Z700882 | GI-Z700883 | GI-Z700884 | GI-Z700885 |
|---|---|---|---|---|
| Code | GSA-7/8-8 | GSA-10-8 | GSA-13-8 | GSA-16-8 |
| WLL tonnes* | 2.0 | 3.2 | 5.4 | 8.2 |
| For chain dim. | 7, 8 | 10 | 13 | 16 |
| A | 32 | 34 | 50 | 60 |
| C | 36 | 48 | 65 | 70 |
| D2 | 34 | 40 | 44 | 54 |
| L | 60 | 80 | 98 | 114 |
| D1 | 16 | 20 | 22 | 27 |
| Weight kg | 0.4 | 0.8 | 1.4 | 2.4 |
| *Safety factor 4:1. All dimensions in mm. | ||||
$126.99
–
$553.99

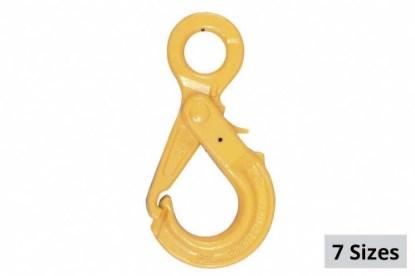

Gunnebo GrabiQ Safety Hook OBK
Imperial
Metric
| Item # | GI-Z101048 | GI-Z101143 | GI-Z101145 | GI-Z101147 | GI-Z101141 | GI-Z101240 | GI-Z100218 |
|---|---|---|---|---|---|---|---|
| Code | OBK-6-10 | OBK-7/8-10 | OBK-10-10 | OBK-13-10 | OBK-16-10 | OBK-18/20-10 | OBK-22-8 |
| WLL lb* |
3,306 | 5,700 | 8,800 | 15,000 | 22,600 | 35,300 | 34,200 |
| A | 0.47 | 0.55 | 0.63 | 0.83 | 1.02 | 1.10 | 1.18 |
| L | 4.06 | 5.47 | 6.69 | 8.11 | 9.88 | 11.54 | 13.19 |
| B | 1.02 | 1.46 | 1.85 | 2.09 | 2.68 | 2.91 | 3.43 |
| E | 0.87 | 1.10 | 1.34 | 1.73 | 2.20 | 2.36 | 2.76 |
| F | 0.35 | 0.39 | 0.51 | 0.59 | 0.75 | 0.87 | 0.94 |
| G | 0.59 | 0.79 | 0.87 | 1.14 | 1.14 | 1.73 | 1.57 |
| H | 0.67 | 0.87 | 1.14 | 1.50 | 1.77 | 2.20 | 2.28 |
| Weight lb | 0.88 | 1.76 | 2.87 | 5.73 | 9.70 | 16.09 | 23 |
| Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches. |
|||||||
Metric
| Item # | GI-Z101048 | GI-Z101143 | GI-Z101145 | GI-Z101147 | GI-Z101141 | GI-Z101240 | GI-Z100218 |
|---|---|---|---|---|---|---|---|
| Code | OBK-6-10 | OBK-7/8-10 | OBK-10-10 | OBK-13-10 | OBK-16-10 | OBK-18/20-10 | OBK-22-8 |
| WLL tonnes* | 1.5 | 2.6 | 4.0 | 6.8 | 10.3 | 16.0 | 15.5 |
| A | 12 | 14 | 16 | 21 | 26 | 28 | 30 |
| L | 103 | 139 | 170 | 206 | 251 | 293 | 335 |
| B | 26 | 37 | 47 | 53 | 68 | 74 | 87 |
| E | 22 | 28 | 34 | 44 | 56 | 60 | 70 |
| F | 9 | 10 | 13 | 15 | 19 | 22 | 24 |
| G | 15 | 20 | 22 | 29 | 29 | 44 | 40 |
| H | 17 | 22 | 29 | 38 | 45 | 56 | 58 |
| Weight kg | 0.4 | 0.8 | 1.3 | 2.6 | 4.4 | 8.3 | 10.5 |
| Fulfills requirements in: EN 1677:2008 (WLL +25%), ASTM A952/A952M-02 and AS 3776:2015. *Safety factor 4:1. All dimensions in mm. |
|||||||
$138.99
–
$911.99
Gunnebo Classic Half-link SKT including Locking Set
Imperial
Metric
| Item # | GI-Z426286 | GI-Z426383 | GI-Z426480 | GI-Z426587 | GI-Z426684 | GI-Z100225 | GI-Z100226 | GI-Z100227 |
|---|---|---|---|---|---|---|---|---|
| Code | SKT-7/8-8 | SKT-10-8 | SKT-13-8 | SKT-16-8 | SKT-18/20-8 | SKT-22-8 | SKT-26-8 | SKT-32-8 |
| WLL lb* |
4,500 | 7,100 | 12,000 | 18,000 | 28,300 | 34,200 | 47,700 | 72,300 |
| For chain dim. | 9/32, 5/16 | 3/8 | 1/2 | 5/8 | 3/4 | 7/8 | 1 | 1-1/4 |
| L | 1.10 | 1.34 | 1.73 | 2.05 | 2.48 | 2.99 | 3.15 | 3.94 |
| B | 0.71 | 0.98 | 1.18 | 1.42 | 1.69 | 1.97 | 2.28 | 2.76 |
| F | 0.35 | 0.43 | 0.59 | 0.75 | 0.87 | 0.94 | 1.18 | 1.50 |
| A | 0.43 | 0.51 | 0.63 | 0.79 | 0.91 | 1.02 | 1.30 | 1.57 |
| C | 0.87 | 1.02 | 1.30 | 1.57 | 1.85 | 2.32 | 2.40 | 3.07 |
| Weight lb | 0.22 | 0.44 | 0.88 | 1.32 | 2.43 | 3.75 | 5.73 | 10.80 |
| Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M and AS 3776:2015. *Safety factor 4:1. All dimensions in inches. |
||||||||
Metric
| Item # | GI-Z426286 | GI-Z426383 | GI-Z426480 | GI-Z426587 | GI-Z426684 | GI-Z100225 | GI-Z100226 | GI-Z100227 |
|---|---|---|---|---|---|---|---|---|
| Code | SKT-7/8-8 | SKT-10-8 | SKT-13-8 | SKT-16-8 | SKT-18/20-8 | SKT-22-8 | SKT-26-8 | SKT-32-8 |
| WLL tonnes* |
2.0 | 3.2 | 5.4 | 8.2 | 12.8 | 15.5 | 21.7 | 32.8 |
| For chain dim. | 7, 8 | 10 | 13 | 16 | 19 | 22 | 26 | 32 |
| L | 28 | 34 | 44 | 52 | 63 | 76 | 80 | 100 |
| B | 18 | 25 | 30 | 36 | 43 | 50 | 58 | 70 |
| F | 9 | 11 | 15 | 19 | 22 | 24 | 30 | 38 |
| A | 11 | 13 | 16 | 20 | 23 | 26 | 33 | 40 |
| C | 22 | 26 | 33 | 40 | 47 | 59 | 61 | 78 |
| Weight kg | 0.1 | 0.2 | 0.4 | 0.6 | 1.1 | 1.7 | 2.6 | 4.9 |
| Fulfills requirements in: EN 1677:2008, ISO 8539:2009, ASTM A952/A952M-02, AS 3776:2015 and SANS 1595:2003. *Safety factor 4:1. All dimensions in mm. |
||||||||
$27.99
–
$383.99
Gunnebo Classic Roundsling Coupling SKR
When you need to have a snug fit for your round slings, you can use the Gunnebo Classic Roundsling Coupling SKR. Specially designed for the full working load limit of round slings, you can trust this heat-treated coupling. Plus, it comes with an identification stamp that tells you the batch, factory and year it was manufactured in.
$65.99
–
$458.99
Gunnebo GrabiQ Master Link MFX
The MFX Master Link from Gunnebo is an oversized link for 1- and 2-leg GrabIQ slings and is designed for use with CL, CLD, CG and CGD components. Choose from four sizes with Working Load Limits ranging from 11,461 lbs. to 35,500 lbs. Featuring a Safety Factor of 5:1, each MFX Master Link allows for efficient sling connection, and the various capacities of links allow for safe lifting with the correct master link.
$106.99
–
$198.99
Filter
1 - 53 of 53 items
